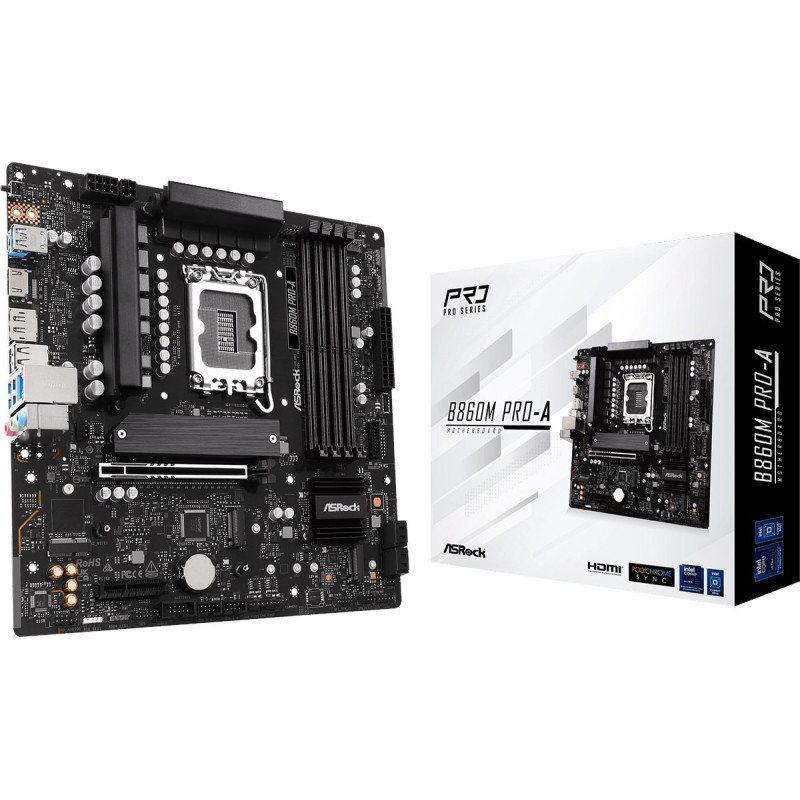

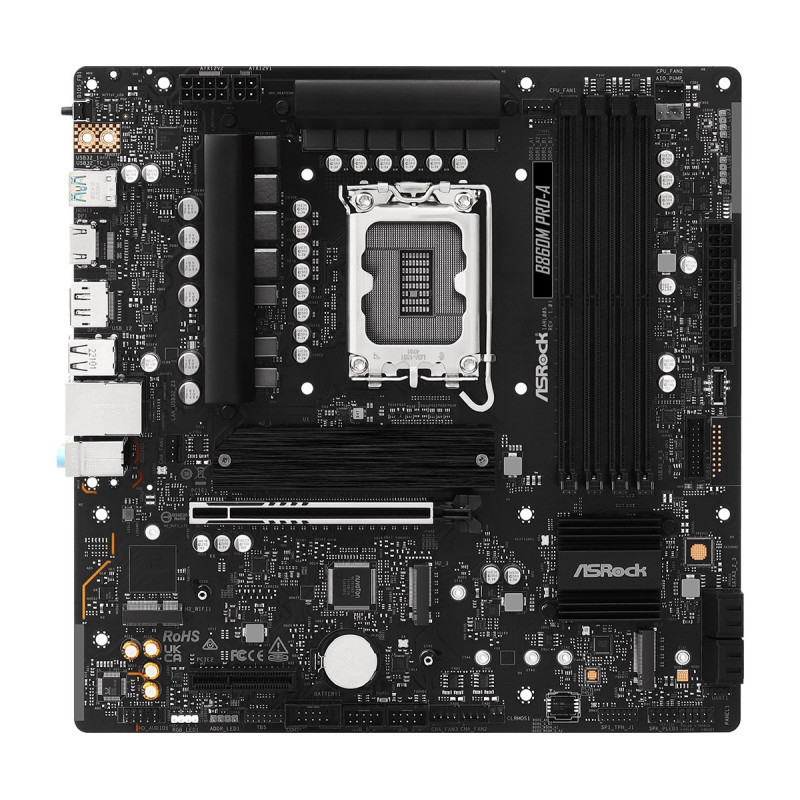

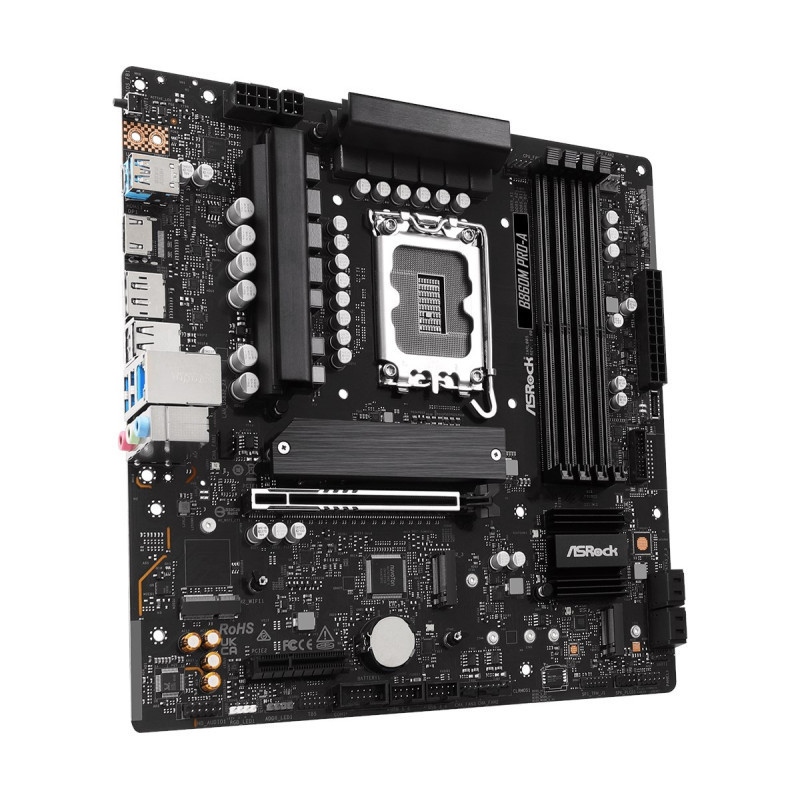

ASRock B860M Pro-A motherboard
Product reference:
3-4711581490291
ASRock B860M Pro-A motherboard
ASRock B860M Pro-A motherboard
Product reference:
3-4711581490291
ASRock B860M Pro-A motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Features | |
| Certification | FCC, CE, ErP/EuP |
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Windows operating systems supported | Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Memory | |
| ECC compatibility | Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Maximum internal memory | 256GB |
| Unbuffered memory | Yes |
| Memory channels | Dual channel |
| Weight dimensions | |
| Depth | 244 mm |
| Width | 244 mm |
| Network | |
| Ethernet LAN | Yes |
| Bluetooth | From |
| LAN controller | Dragon RTL8125BG |
| Ethernet LAN data rates | 10,100,1000,2500 Mbps |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | From |
| Internal I/O | |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 1 |
| TPM connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of water pump connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| 12V power connector | Yes |
| Number of chassis fan connectors | 3 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| Storage controllers | |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD SSD |
| RAID levels | 1, 10, 5, 0 |
| RAID support | Yes |

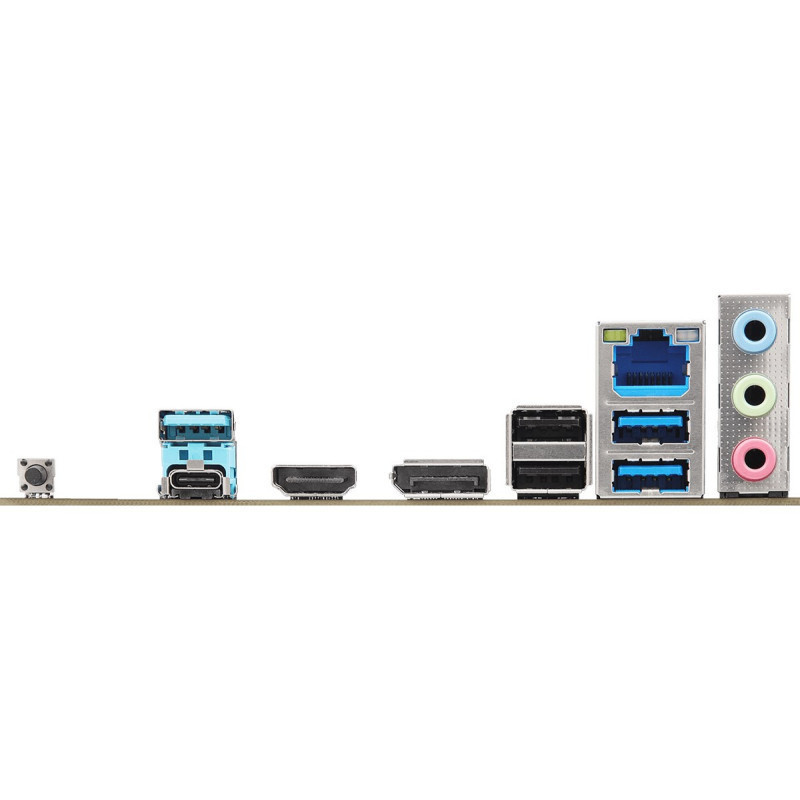

| Rear panel I/O port | |
| Number of USB 3.2 Gen 1 ports | 3 |
| Flashback BIOS button | Yes |
| DisplayPort quantity | 1 |
| Antenna quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C port quantity | 1 |
| HDMI version | 2.1 |
| USB connector type | USB Type-C, USB Type-A |
| USB 2.0 ports quantity | 2 |
| HDMI port quantity | 1 |
| Ethernet LAN (RJ-45) port | 1 |
| Expansion slot | |
| PCI Express x16 (Gen 5.x) slot | 1 |
| Number of SATA III connectors | 4 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slot | 1 |
| Safety warning | |
| Warnings | In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage. |
