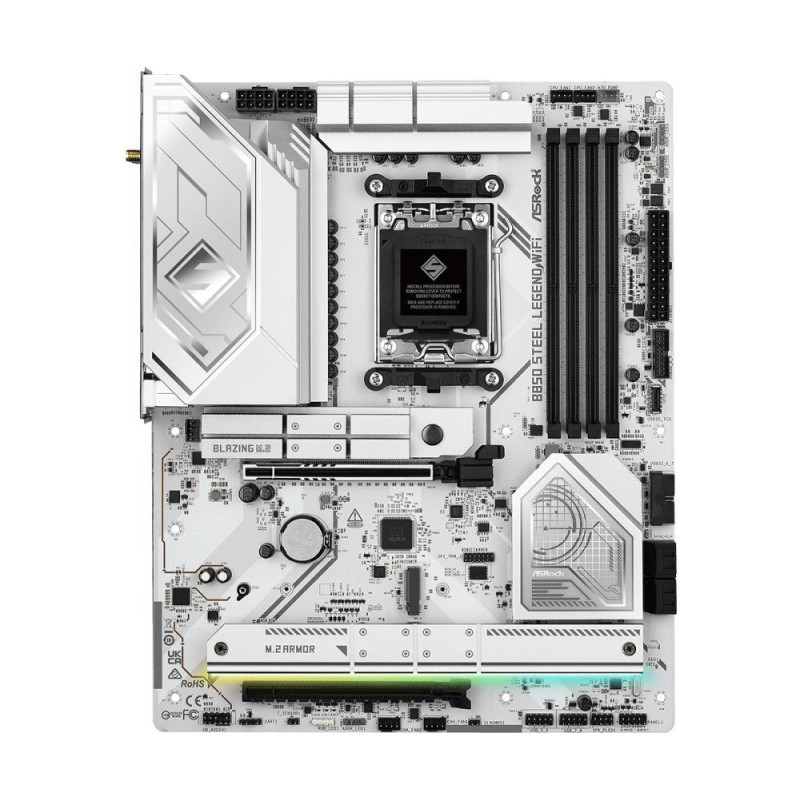

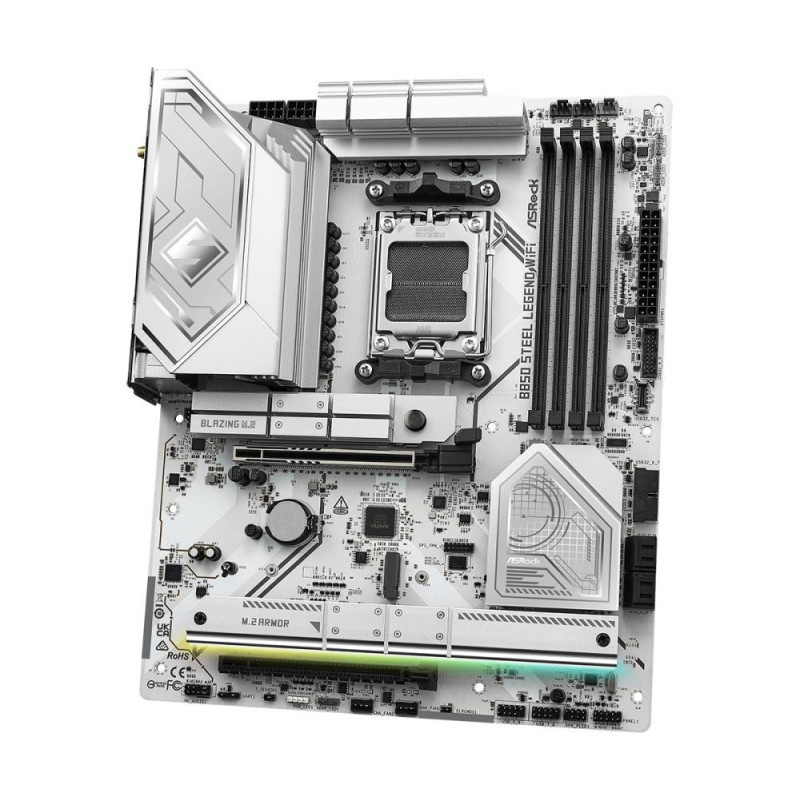

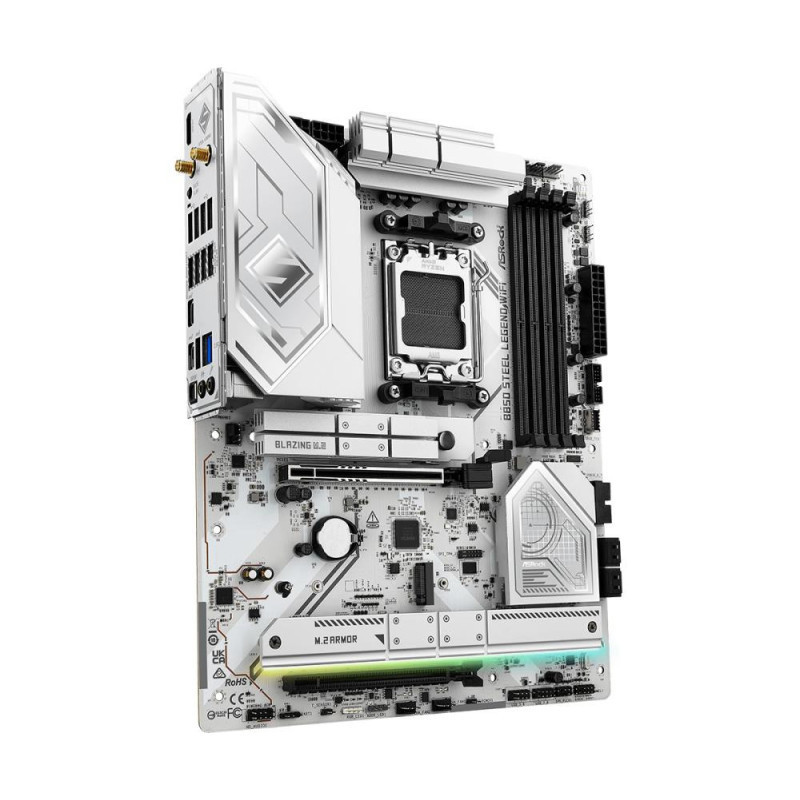

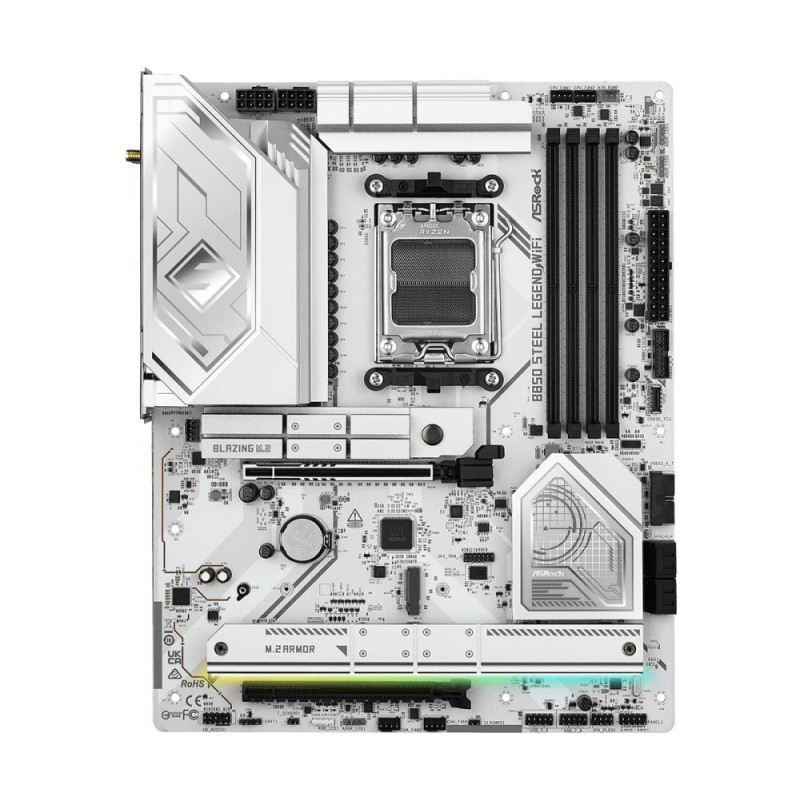

Asrock B850 Steel Legend WiFi AMD B850 Socket AM5 ATX
Product reference:
3-4711581490062
Asrock B850 Steel Legend WiFi AMD B850 Socket AM5 ATX
Asrock B850 Steel Legend WiFi AMD B850 Socket AM5 ATX
Product reference:
3-4711581490062
Asrock B850 Steel Legend WiFi AMD B850 Socket AM5 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series |
| Processor socket | Socket AM5 |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Parallel processing technology support | Not supported |
| Features | |
| Certification | FCC, CE, ErP/EuP |
| Motherboard chipset | AMD B850 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC4082 |
| Product colour | White |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard form factor | ATX |
| Memory | |
| Maximum internal memory | 256GB |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| ECC compatibility | ECC Non-ECC |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Weight dimensions | |
| Depth | 244 mm |
| Width | 305mm |
| Network | |
| Bluetooth | Yes |
| LAN controller | Dragon RTL8125BG |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi standard | 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 7 (802.11be), Wi-Fi 4 (802.11n), 802.11g |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 2 |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 1 |
| Number of EPS power connectors (8-pin) | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging content | |
| Cables included | SATA |
| Antenna included | Yes |
| Storage controllers | |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID support | Yes |
| RAID levels | 0, 10, 1 |
| Supported storage drive types | HDD SSD |
| Number of storage drives supported | 8 |

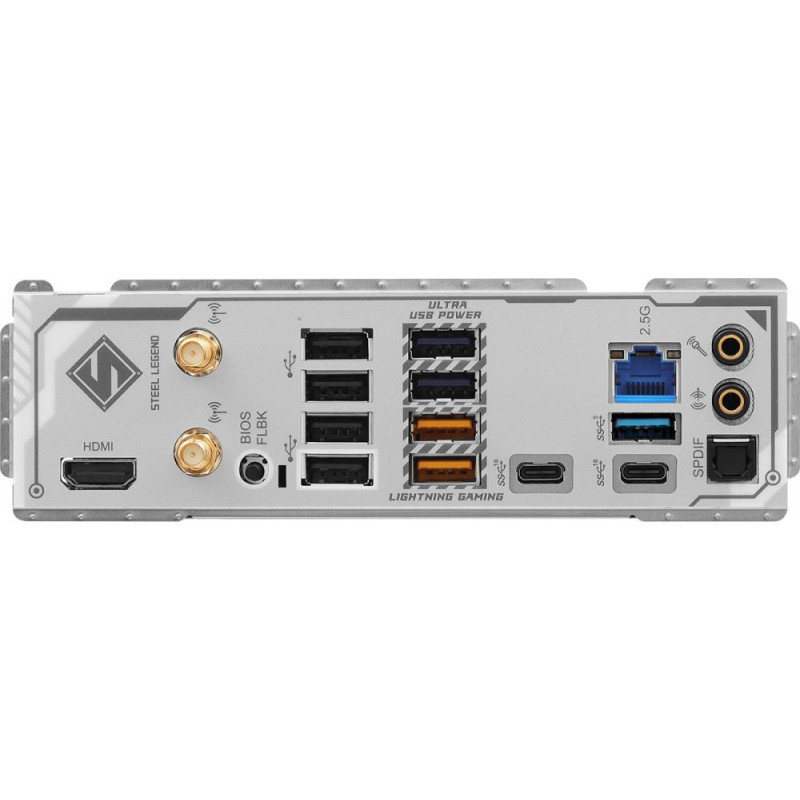

| Rear panel I/O port | |
| USB connector type | USB Type-A, USB Type-C |
| HDMI port quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C port quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 3 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) port | 1 |
| S/PDIF out port | Yes |
| Headphone outputs | 2 |
| WiFi-AP antenna jack | 2 |
| Line-in | Yes |
| Microphone in | Yes |
| Expansion slot | |
| 2nd M.2 largest key size | 2280 |
| 4th M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slot | 1 |
| PCI Express x16 (Gen 4.x) slot | 1 |
| Safety warning | |
| Warnings | Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty. |
