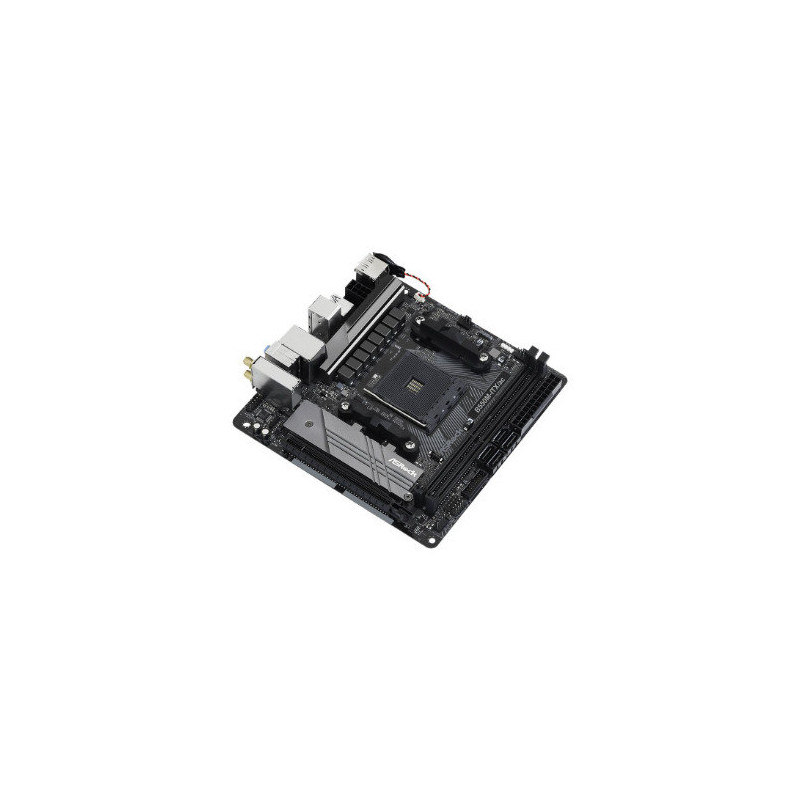

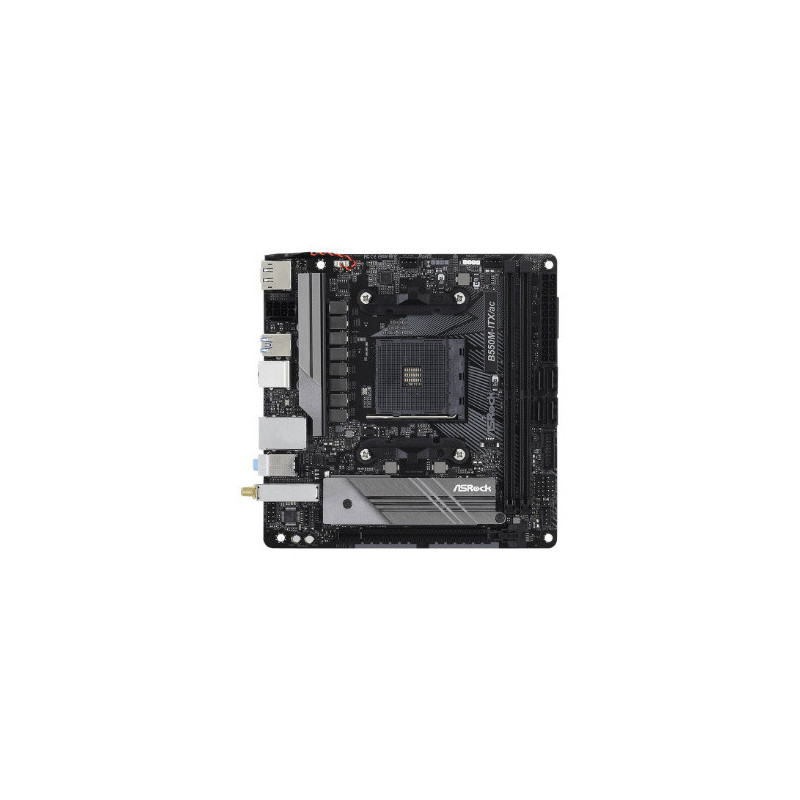

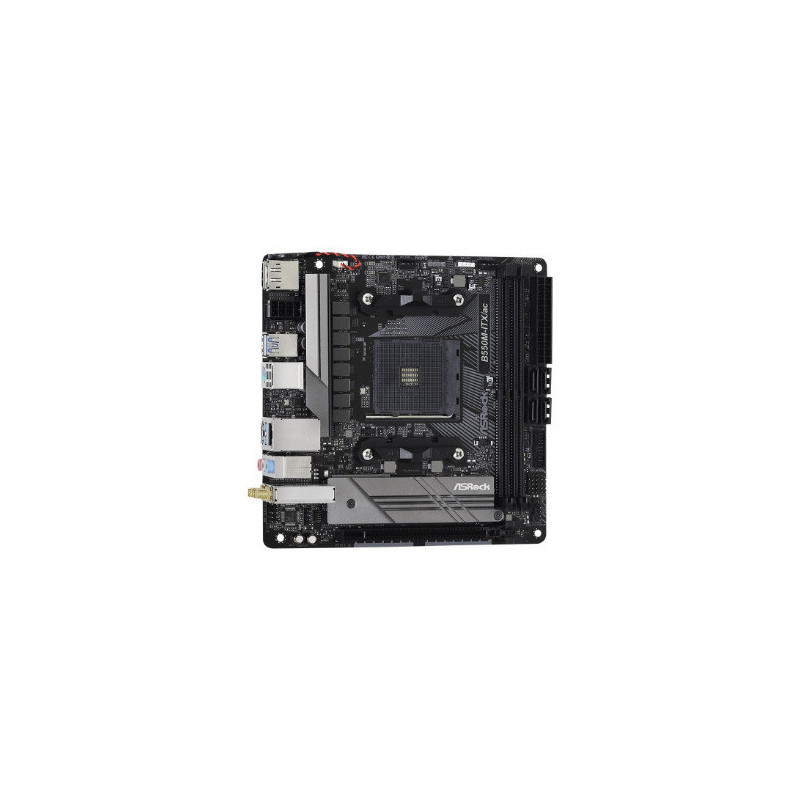

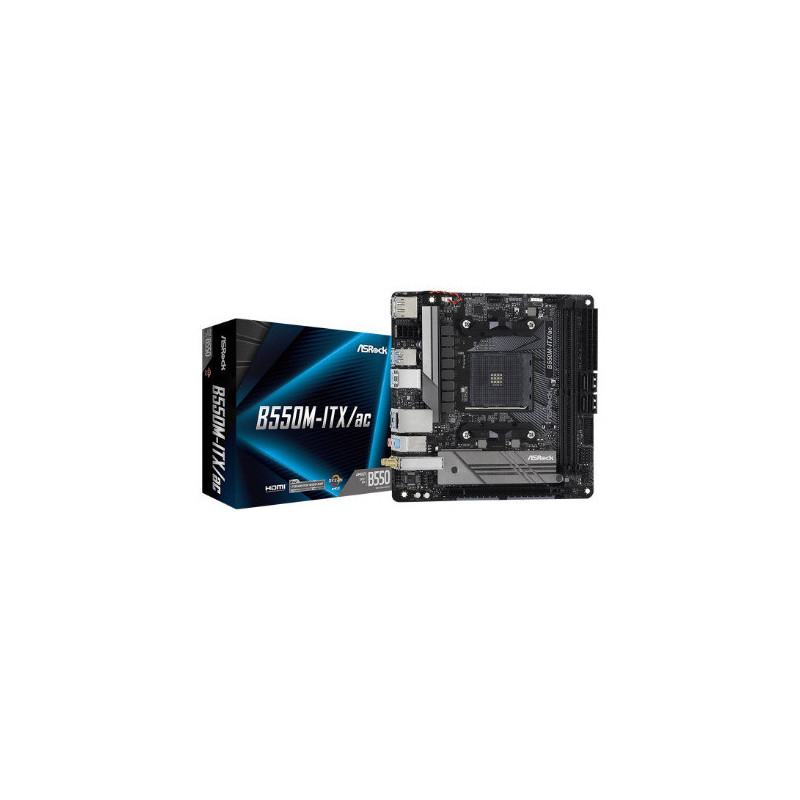

Asrock B550M-ITX / ac Socket AM4 mini ITX AMD B550
Product reference:
3-4710483931727
Asrock B550M-ITX/ac Socket AM4 mini ITX AMD B550
Asrock B550M-ITX / ac Socket AM4 mini ITX AMD B550
Product reference:
3-4710483931727
Asrock B550M-ITX/ac Socket AM4 mini ITX AMD B550
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
13 - 18
business days
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Compatible processor series | 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7 |
| Processor socket | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Graphics | |
| HDCP | Yes |
| DirectX version | 12.0 |
| On-board graphics card | Yes |
| Graphics card | Radeon Vega |
| Graphics card family | AMD |
| Features | |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC887 |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini-ITX |
| Memory | |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 2933, 3600, 3466, 3200, 4266, 3800, 4466, 2400, 3866, 4333, 4600, 2667, 3733, 4400, 4133, 4000, 2133 MHz, 4200, 4533 MHz |
| Maximum internal memory | 64GB |
| Number of memory slots | 2 |
| Memory channels | Dual channel |
| Supported memory types | DDR4-SDRAM |
| Memory slot type | DIMMs |
| Weight dimensions | |
| Depth | 170mm |
| Width | 170mm |
| Network | |
| Bluetooth version | 4.2 |
| LAN controller | Realtek RTL8111H |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standard | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11b, 802.11a |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging content | |
| Drivers included | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2, Serial ATA III |

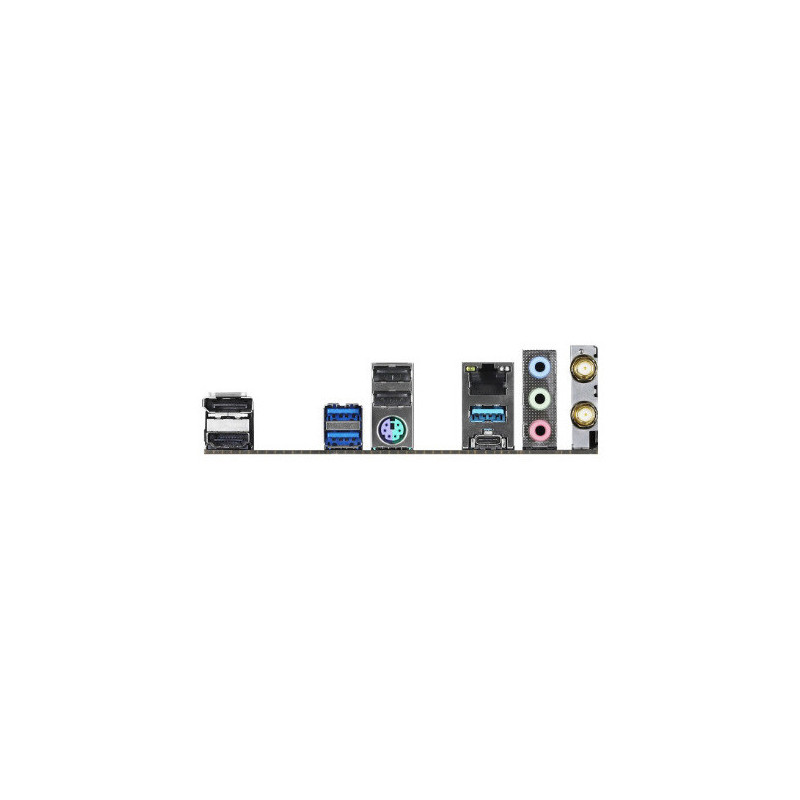

| Rear panel I/O port | |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 1 |
| HDMI port quantity | 1 |
| Ethernet LAN (RJ-45) port | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C port quantity | 1 |
| DisplayPort version | 1.4 |
| DisplayPort quantity | 1 |
