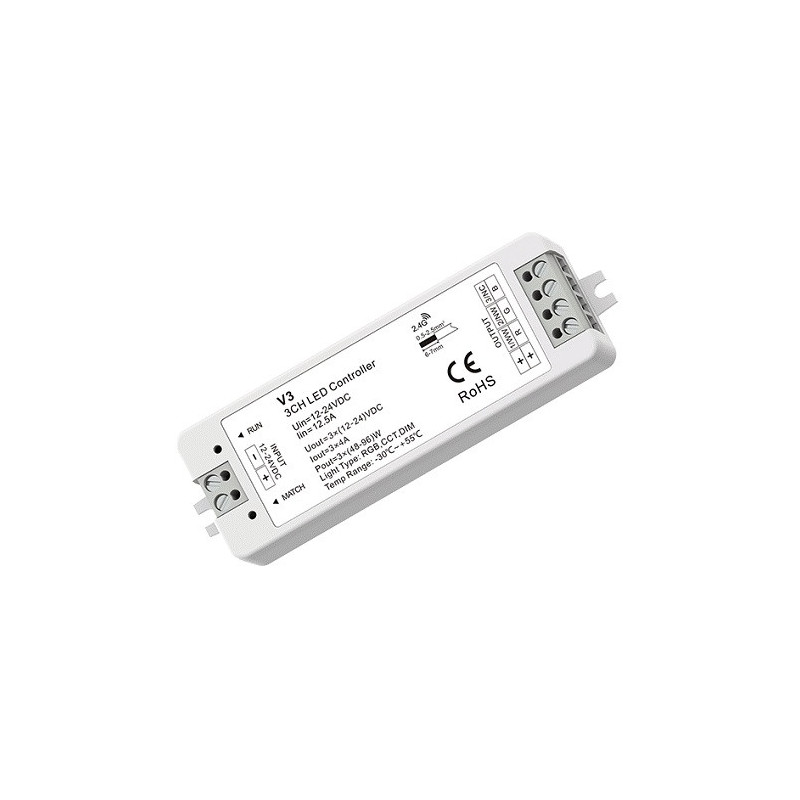

V3 constant voltage RGB controller, 12-24V, 3x 4A

V3 constant voltage controller 12-24V DC 3x 4A, for RGB/CCT LED strips, 3 channels
Features:
Supports lighting systems: single color (1-3 zones), two-color, color RGB, changeable hue CCT.
Allows you to smoothly dim or brighten the lighting up to 4096 levels 0-100%. Compatible with dimmable LED strips/bulbs.
Allows you to control the color temperature (warm/neutral/cool white light).
Supports dynamic RGB color control (has 10 dynamic modes, including jump or gradual style change settings).
Allows you to select the duration of the gradual light on/off.
Simultaneous automatic transmission: automatically transmits the signal to another controller within a distance of 30 m, synchronizes operations with other controllers (it is recommended not to exceed the number of 25 controllers).
Has a matching button (MATCH) for connecting remote controls.
Can be controlled with 2.4 GHz RF remote controls, wireless wall switches, and sensor switches.
Supports control via the SkySmart smart app.
One controller can control up to 10 remote controls. One remote control can control an unlimited number of controllers within a distance of 30 m.
The controller uses the most advanced PWM (Pulse Width Modulation) digital control technology to control constant voltage LED lamps.
Reverse polarity and short circuit protection.
Certificates: CE (EMC/LVD), RoHS.
Technical data:
Product model: V3.
Compatibility: Skydance R15, R16, R8-1, R9, RT4, R8, RT9, RS3, RS4, RS8, R21, R22; T3, T3-1, T3-K.
Number of channels: 3.
Controlled lighting systems: RGB, CCT.
Operating frequency: RF 2.4GHz.
Supply voltage: 12V-24V DC.
Output voltage: 12V-24V DC.
Output current: 4A per channel.
Power: (48-96)W per channel.
PWM frequency: 1000 Hz.
Grayscale: 4096 levels.
Dimming range: 0-100%.
Operating distance: up to 30m.
Safety class: IP20 (not waterproof).
Suitable wire cross-sectional area: 0.5-2.5 mm².
Certificates: CE, EMC, LVD, RED, RoHS.
Operating temperature: -30~+55°C.
Dimensions: 97 x 33 x 18 mm.
Color: white.
Weight: 37g.
Warranty: 24 months
