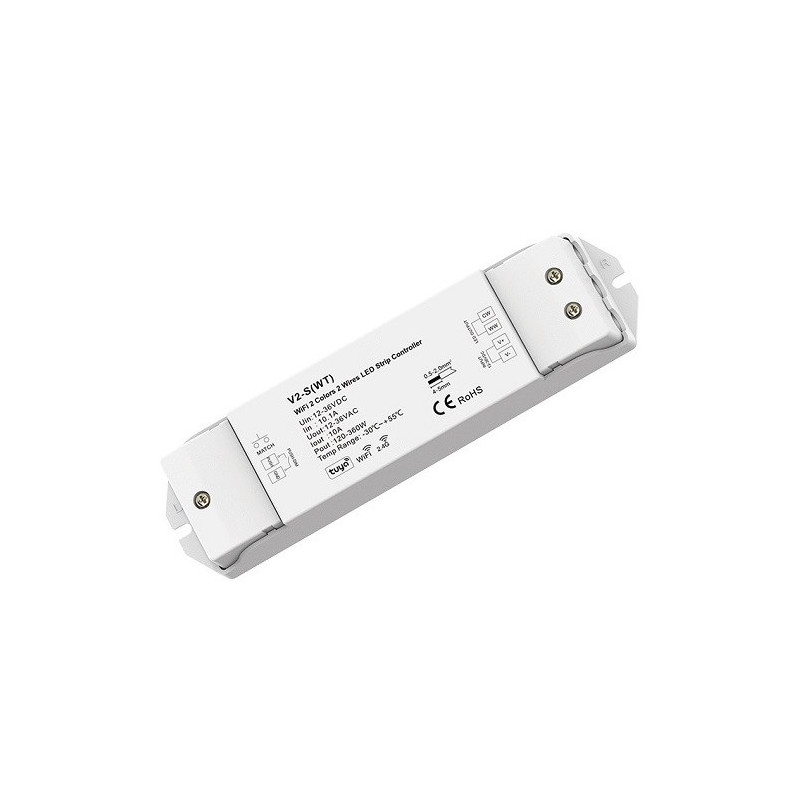

V2-S(WT) controller12-36V, 1x10A, Tuya, Wi-Fi

V2-S(WT) constant voltage controller 12-36V DC 1x10A, for two-color LED strips, 1 channel, two-wire, with Push-Dimm function, Tuya, Wi-Fi
Features:
The smart Wi-Fi and RF CCT LED controller is designed for 2-wire connection of warm white (WW) and cool white (CW) LED strips only.
The device supports control via the Tuya Smart or Smart Life app, which allows you to turn on/off the lighting, adjust the brightness and color temperature, use timers, scenes, and adjust the lights to music.
The controller also works with popular voice assistants - Amazon Alexa, Google Assistant, as well as Tmall Genie and Xiaodu. It can also be used as a WiFi-RF converter, allowing you to synchronously control multiple RF CCT LED controllers via an app.
Advanced PWM (Pulse Width Modulation) digital control technology is used to control constant voltage LED lamps. A linear dimming curve is used.
The controller supports control via 2.4 GHz RF remote controls. It has an integrated MATCH button for connecting the remote control.
Has a Push-dimm function: you can connect a regular bell-type (rebound) switch to the controller, which can be used to turn the light on or off and adjust the brightness (0-100%). By turning on the power several times in a row, you can change 3 fixed color temperature levels (warm, neutral, cool white - WW, NW, CW).
Additionally, you can enable a soft light on and off effect, which provides a more pleasant transition and more comfortable lighting.
The controller is equipped with reverse polarity protection, and its quality is ensured by CE and RoHS certificates.
It is a universal, flexible and smart solution for convenient and flexible control of CCT LED strips, either via phone, voice or button.
Technical data:
Product model: V2-S(WT).
Number of channels: 1.
Controlled lighting systems: two-color WW/CW.
Operating frequency: Wi-Fi+RF 2.4GHz.
Input voltage: 12V-36V DC.
Input current: 10.1A.
Output voltage: 12V-36V DC.
Output current: 10A.
Power: 120-360W.
PWM frequency: 2000Hz.
Grayscale: 256 levels.
Dimming range: 0-100%.
Operating distance: up to 30m (in open space).
App: Tuya Smart / Smart Life (Android, iOS).
Works with Amazon Alexa Google Assistant.
Suitable wire cross-sectional area: 0.5-2 mm².
Certificates: CE, EMC, RoHS.
Operating temperature: -30~+55°C.
Dimensions: 178 x 50 x 38 mm.
Color: white.
Weight: 136g.
Warranty: 24 months
