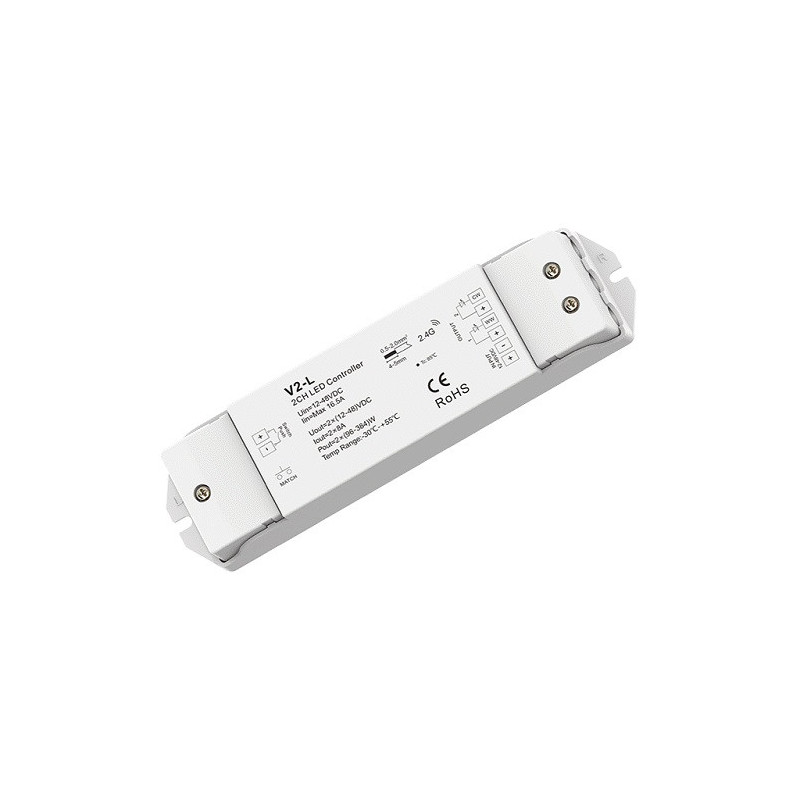

V2-L controller-receiver 12-36V DC, 2x8A

V2-L controller-receiver 12-48V DC 2x 8A, for two-color LED strips, 2 channels
Features:
Supports lighting systems: two-color WW/CW.
Allows you to smoothly dim or brighten the lighting up to 4096 levels 0-100%. Compatible with dimmable LED strips/bulbs.
Allows you to control the color temperature (warm/neutral/cool white light).
Simultaneous automatic transmission: automatically transmits the signal to another controller within a distance of 30 m, synchronizes operations with other controllers (it is recommended not to exceed the number of 25 controllers).
Has a pairing button for connecting remote controls.
Can be controlled with 2.4 GHz RF remote controls, pushbutton switches, and touch switches.
Supports control via the SkySmart smart app.
One controller can control up to 10 remote controls. One remote control can control an unlimited number of controllers within a distance of 30 m.
The controller uses the most advanced PWM (Pulse Width Modulation) digital control technology to control constant voltage LED lamps.
Has Push-dimm function.
Overload and short circuit protection.
Certificates: CE (EMC/LVD), RoHS.
Technical data:
Product model: V2-L.
Compatibility: Skydance R1, R6-1, RT1, RU4, R6, RA1, RT6, RS1, RS6, R11; R15, R16, R8-1, R9, RT4, R8, RT9, RS3, RS4, RS8, R21, R22; T1, T1-1, T1-K, KV, KC; T3, T3-1, T3-K.
Number of channels: 2.
Controlled lighting systems: CCT.
Operating frequency: RF 2.4GHz.
Supply voltage: 12V-48V DC.
Output voltage: 12V-48V DC.
Output current: 8A per channel.
Power: (96-384)W per channel.
PWM frequency: 2000 Hz.
Grayscale: 4096 levels.
Dimming range: 0-100%.
Operating distance: up to 30m.
Safety class: IP20 (not waterproof).
Suitable wire cross-sectional area: 0.5-2 mm².
Certificates: CE, EMC, LVD, RED, RoHS.
Operating temperature: -30~+55°C.
Dimensions: 175 x 45 x 27 mm.
Color: white.
Weight: 107g.
Warranty: 24 months
