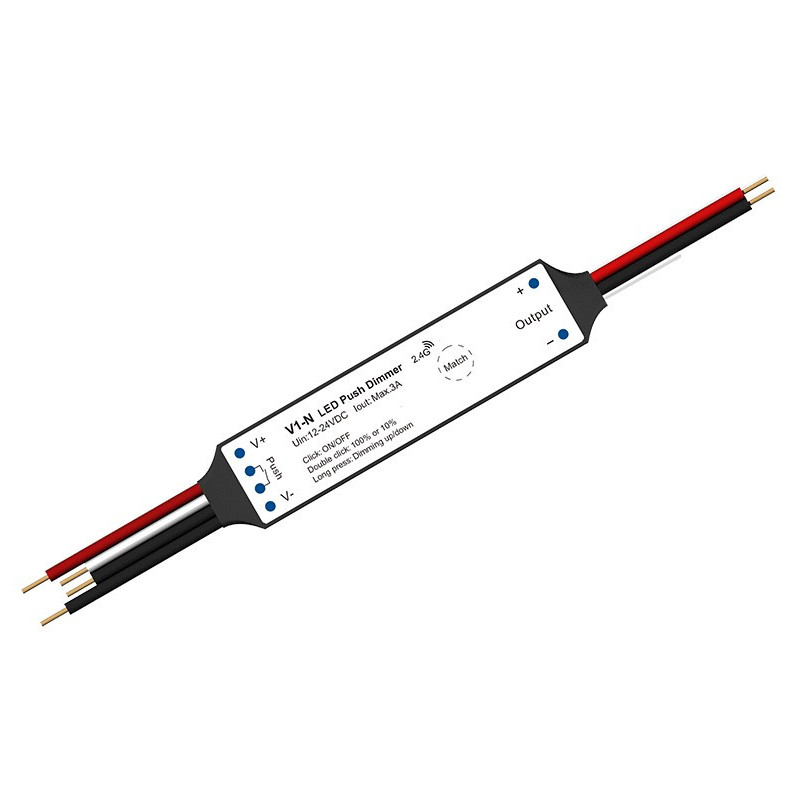

V1-N constant voltage controller 12-24V, 1x 3A, Push-Dimm

V1-N constant voltage controller 12-24V DC 1x 3A, for single-color LED strips, with Push-Dimm function, 1 channel, max. 5m strip, 75W
Features:
The ultra-small constant voltage controller is suitable for controlling a single-color LED strip up to 5 meters long, with a maximum power of 75W.
It is designed to turn the lighting on and off and control the brightness. Allows you to smoothly dim or brighten the lighting up to 4096 levels 0-100%. Compatible with dimmable LED strips.
Supports lighting systems: single color.
The controller is compatible with RF 2.4 GHz single-zone or multi-zone dimming remote controls. One RF controller can be paired with up to 10 remote controls. It has an automatic transmission function - the signal is automatically transmitted to another controller at a distance of up to 30 meters. The controller also supports synchronized operation with several other controllers.
Has a matching button (MATCH) for connecting remote controls.
The controller uses the most advanced PWM (Pulse Width Modulation) digital control technology to control constant voltage LED lamps.
Has a Push-dimm function: you can connect a regular bell-type (rebound) switch to the controller.
The device is small and compact and can be installed directly into a standard wall mounting box behind a regular switch.
Certificates: CE, EMC, RED, RoHS.
Technical data:
Product model: V1-N.
Number of channels: 1.
Controlled lighting systems: single color.
Operating frequency: RF 2.4GHz.
Supply voltage: 12V-24V DC.
Output voltage: 12V-24V DC.
Output current: 3A.
Max output power: 75W.
PWM frequency: 500 Hz.
Grayscale: 4096 levels.
Dimming range: 0-100%.
Dimming curve: logarithmic.
Operating distance: up to 30m (in open space).
Safety class: IP20 (not waterproof).
Certificates: CE, EMC, RoHS.
Operating temperature: -30~+55°C.
Dimensions: 14 x 60 x 4 mm.
Color: white, black.
Weight: 13g.
Warranty: 24 months
