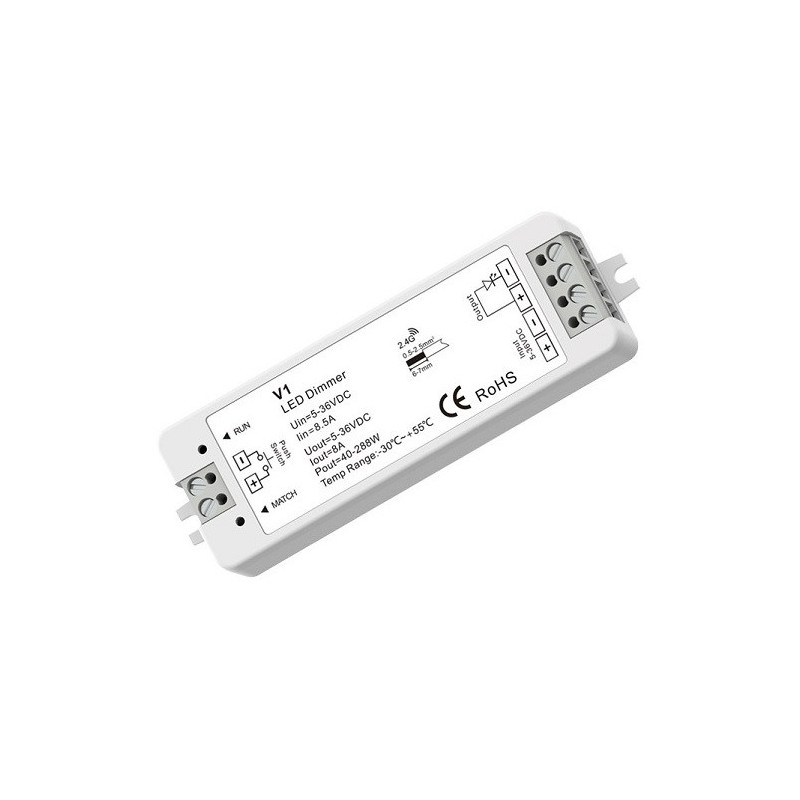

V1 constant voltage controller 5-36V, 1x 8A, Push-Dimm

V1 constant voltage controller 5-36V DC 1x 8A, for single-color LED strips, with Push-Dimm function, 1 channel
Features:
Supports lighting systems: single color.
Allows you to smoothly dim or brighten the lighting up to 4096 levels 0-100%. Compatible with dimmable LED strips/bulbs.
The constant voltage controller is suitable for controlling constant voltage lighting devices, such as single-color LED strips, constant voltage LED panels, and the like.
Simultaneous automatic transmission: automatically transmits the signal to another controller within a distance of 30 m, synchronizes operations with other controllers (it is recommended not to exceed the number of 25 controllers).
Has a matching button (MATCH) for connecting remote controls.
Can be controlled with 2.4 GHz RF remote controls, pushbutton switches, and touch switches.
Supports control via the SkySmart smart app.
One controller can control up to 10 remote controls. One remote control can control an unlimited number of controllers within a distance of 30 m.
The controller uses the most advanced PWM (Pulse Width Modulation) digital control technology to control constant voltage LED lamps.
Has a Push-dimm function: a regular bell-type (rebound) switch can be connected to the controller.
Protection against overload, overheating, reverse polarity and short circuit.
Certificates: CE (EMC/LVD), RoHS.
Technical data:
Product model: V1.
Compatibility: Skydance R1, R6-1, RT1, RU4, R6, RA1, RT6, RS1, RS6, R11; R15, R16, R8-1, R9, RT4, R8, RT9, RS3, RS4, RS8, R21, R22; T1, T1-1, T1-K, KV, KC; T3, T3-1, T3-K.
Number of channels: 1.
Controlled lighting systems: single color.
Operating frequency: RF 2.4GHz.
Supply voltage: 5V-36V DC.
Output voltage: 5V-36V DC.
Output current: 8A.
Power: 40W@5V; 96W@12V; 192W@24V; 288W@36V.
PWM frequency: 2000 Hz.
Grayscale: 4096 levels.
Dimming range: 0-100%.
Operating distance: up to 30m.
Safety class: IP20 (not waterproof).
Suitable wire cross-sectional area: 0.5-2.5 mm².
Certificates: CE, EMC, LVD, RED, RoHS.
Operating temperature: -30~+55°C.
Dimensions: 97 x 33 x 18 mm.
Color: white.
Weight: 42g.
Warranty: 24 months
