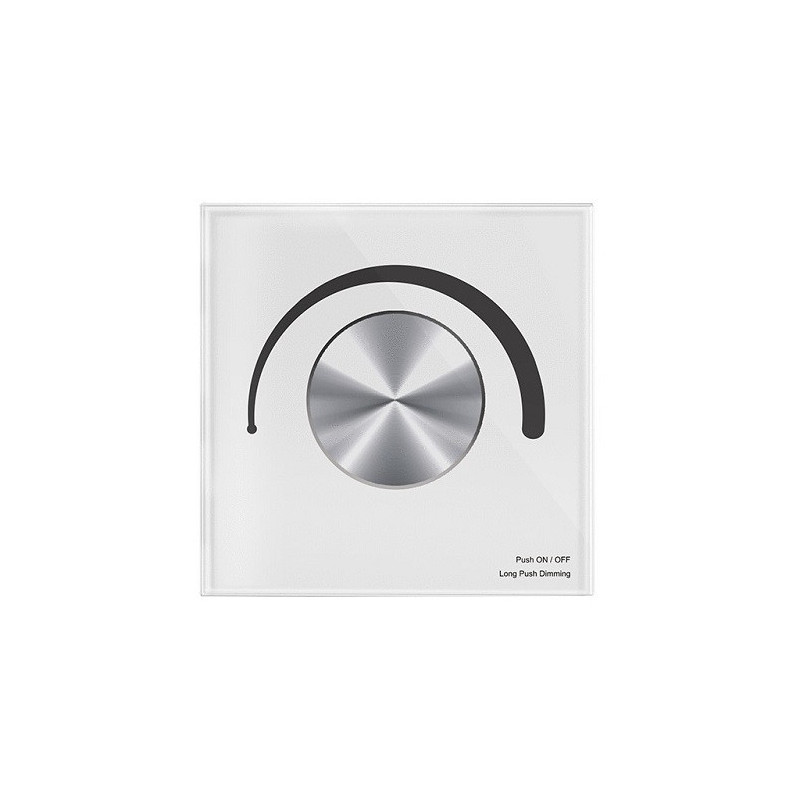

T1-K wall controller, 3 channels, 12-48VDC, 3x 4A

Wall-mounted LED lighting controller, PWM constant voltage controller, 12-48DC 3x 4A, for single-color LED strips, 3 channels, with mechanical dial, supports 50 lighting level control.
Features:
The controller supports single-color lighting systems for controlling up to 3 dimmable LED strips.
Allows you to smoothly dim or brighten the lighting. Gentle light dimming, turning on and off without any flickering. You can control LED strips directly from the controller, without additional receivers.
The rotary dial allows you to conveniently adjust the lighting brightness in 50 levels.
A long press on the wheel allows you to adjust the brightness of the lighting in 256 levels.
The controller uses a PWM output to adjust the brightness of the LED by switching current pulses.
Can be used as a remote control.
Supports RF 2.4GHz single or multi-zone remote control.
Luxurious design, glass panel and silver-colored dial. Mounted on the wall like a switch.
The control regulator is universal, can work with various LED controllers and is compatible with remote controls.
The device has integrated protection against short circuit, overheating and overload, which operate on the principle of automatic reset.
Technical data:
Product model: T1-K.
Compatibility: Skydance V1, V2-L, V3, V3-L, V3-X, V4-L, V4-D, VP.
Number of channels: 3.
Controlled lighting systems: single color.
Operating frequency: RF 2.4GHz.
Operating distance: 30m.
Voltage: 12-48V DC.
Current: 4A (per channel).
Power: 144W@12V; 288W@24V.
Dimming range: 0-100%.
Dimming levels: 256.
PWM frequency: 2KHz/8KHz.
Buttons: 1 (rotating and pressing) wheel.
Safety class: IP20 (not waterproof).
Certificates: CE, EMC, LVD, RED, RoHS.
Operating temperature: -30~+55°C.
Suitable wire cross-sectional area: 0.5-2.0 mm².
Dimensions: 86 x 86 x 48 mm.
Color: white.
Warranty: 24 months
