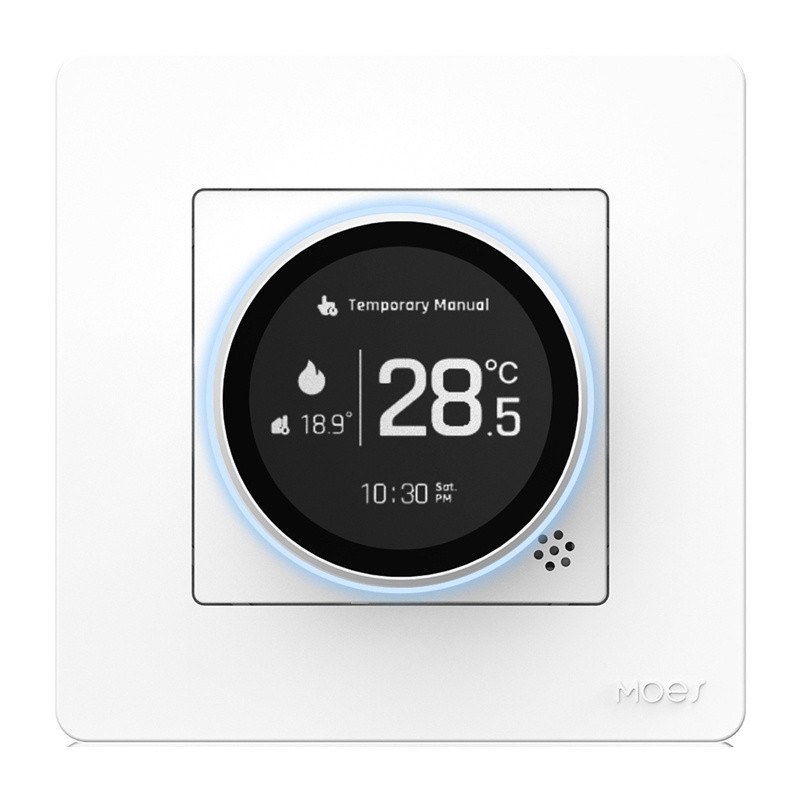

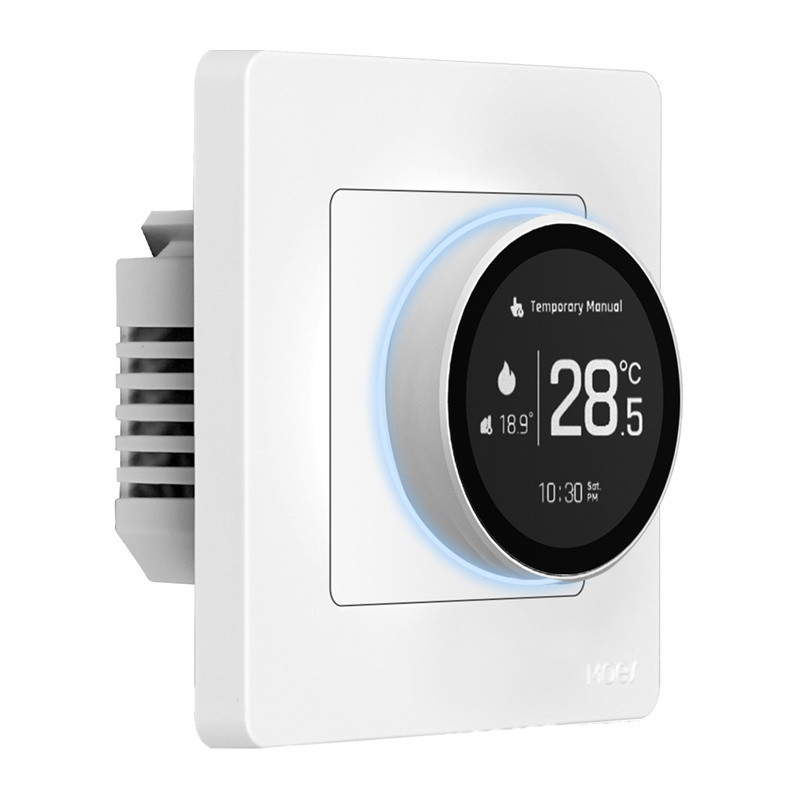

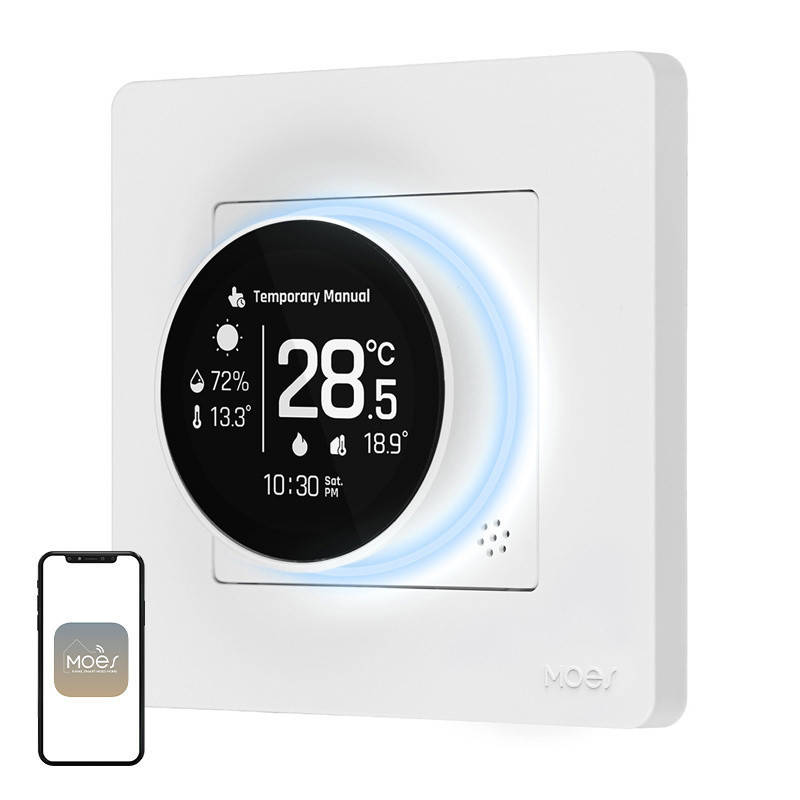

ZigBee 3.0 thermostat for electric heating, allowing you to set the temperature from 5-35 °C, with ±1 °C accuracy and up to 16 A load. Control it with the app or voice via a ZigBee gateway, set a weekly schedule, and conveniently adjust the temperature with the illuminated controller; power supply - 95-245 V AC.
ZigBee 3.0 thermostat for electric heating, allowing you to set the temperature from 5-35 °C, with ±1 °C accuracy and up to 16 A load. Control it with the app or voice via a ZigBee gateway, set a weekly schedule, and conveniently adjust the temperature with the illuminated controller; power supply - 95-245 V AC.




ZigBee 3.0 thermostat for electric heating, allowing you to set the temperature from 5-35 °C, with ±1 °C accuracy and up to 16 A load. Control it with the app or voice via a ZigBee gateway, set a weekly schedule, and conveniently adjust the temperature with the illuminated controller; power supply - 95-245 V AC.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
ZigBee 3.0 thermostat for electric heating with a setting range of 5-35 °C, accuracy of ±1 °C, and maximum load of 16 A. Supports app and voice control via ZigBee gateway, weekly schedule, illuminated dimmer, and 95-245 V AC power supply.
Product information | |
|---|---|
| Product type | Smart thermostat for electric heating |
| Brand | MOES |
| Model | ZHT-SR-GB |
Technical specifications | |
| Power source | 95-245V AC, 50/60Hz |
| Maximum load | 16 A |
| Sensor | NTC3950, 10kΩ |
| Displayed temperature range | 5-99 °C |
| Operating ambient temperature | 0-45°C |
| Operating humidity | 5-95% RH, non-condensing |
| Energy consumption | <1.5W |
| Timer accuracy | <1% |
Connection | |
| Wireless communication standard | ZigBee 3.0, IEEE 802.15.4 |
| Operating frequency | 2.405-2.480 GHz |
| Maximum RF power | +20 dBm |
| Compatible apps | MOES, Tuya Smart and Smart Life |
| Gateway requirement | ZigBee gateway required for apps, automation and voice control |
Construction and installation | |
| Housing material | Fireproof PC + ABS |
| Protection class | IP20 |
| Compatibility with mounting boxes | 86 × 86 mm mounting boxes or European round 60 mm boxes |
| Module | ZT3L |
Safety information | |
| Safety warning | Only intended for controlling electric heating systems. Installation and electrical connections must be carried out by a qualified electrician. Disconnect the power supply before installation or maintenance. IP20 protection class for dry rooms; protect the thermostat from water and excessive humidity. |
| Height | 100mm |
| Length | 150mm |
| Weight | 250 g |
| Width | 100mm |
