SONOFF SPM-4 smart module with 4 relays, DIN rail mount

SONOFF SPM-4 4-channel smart metering system module, SPM-Main control panel expansion module.

• With energy cost accounting.

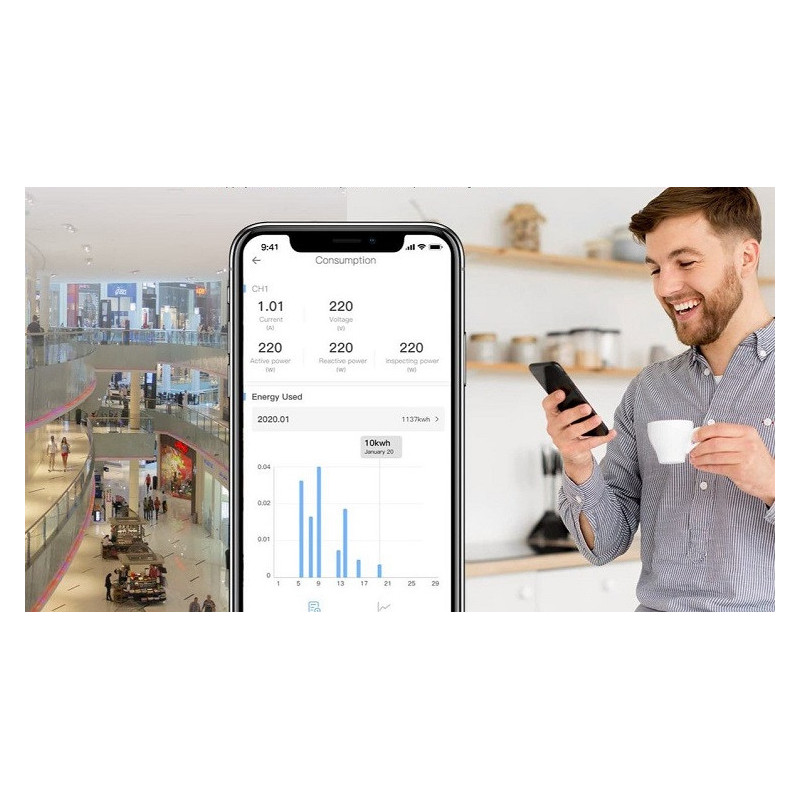

• SONOFF smart metering system enables network overload protection, network metering monitoring, and collection and storage of electricity consumption statistics.

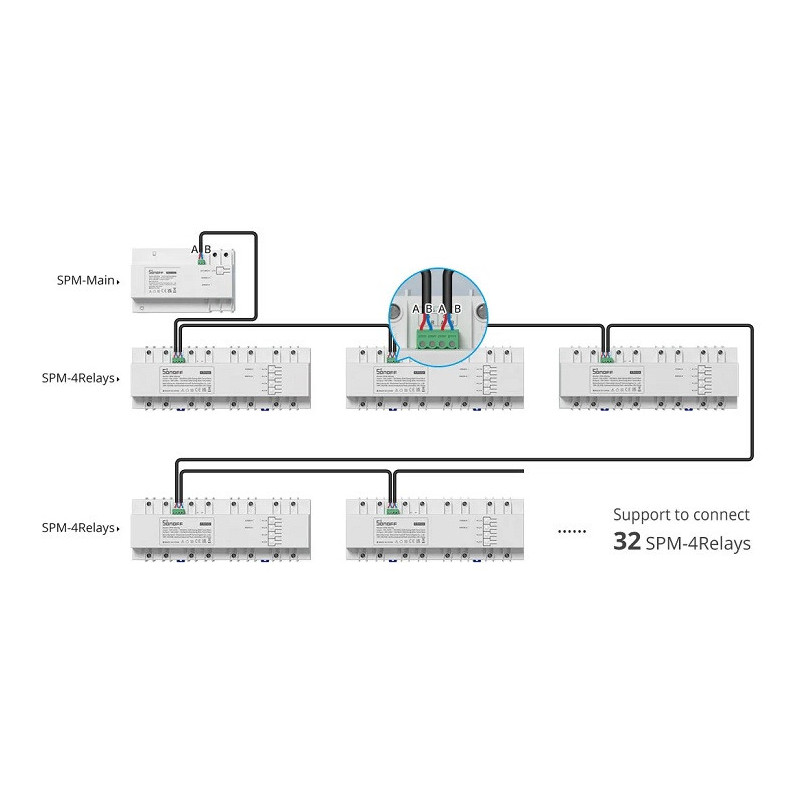

• It supports up to 128 channels (up to 32 SPM-4Relay modules), 20A maximum current for each channel, allows you to monitor 180 days of electricity consumption data, and control each channel separately.


• This is a high-performance professional smart home tool that allows you to monitor the electricity consumption of residents or tenants; designed for homes, office buildings, industrial buildings, or even shopping malls.

Note: the module requires an SPM-Main control panel to control it., which is purchased separately.
Features:

• The module connects via RS485 to the SPM--Main control panel, which is controlled via the Internet via Ethernet or Wi-Fi via the "EWeLink" app (Android, iOS).


• Remote On/Off - You can turn all channels on and off remotely anytime, anywhere.


• Sync Status - Check the actual status of the relay (on or off) using the app.


• Mounted on a DIN rail, like the control panel, suitable for an electrical cabinet.


• Has mechanical on/off buttons.


• The housing material is made of non-flammable PC V0 safety class plastic.


• Protection for all channels against overload, overvoltage, overcurrent.

Technical data:

• Compatible with: Sonoff SPM-Main.

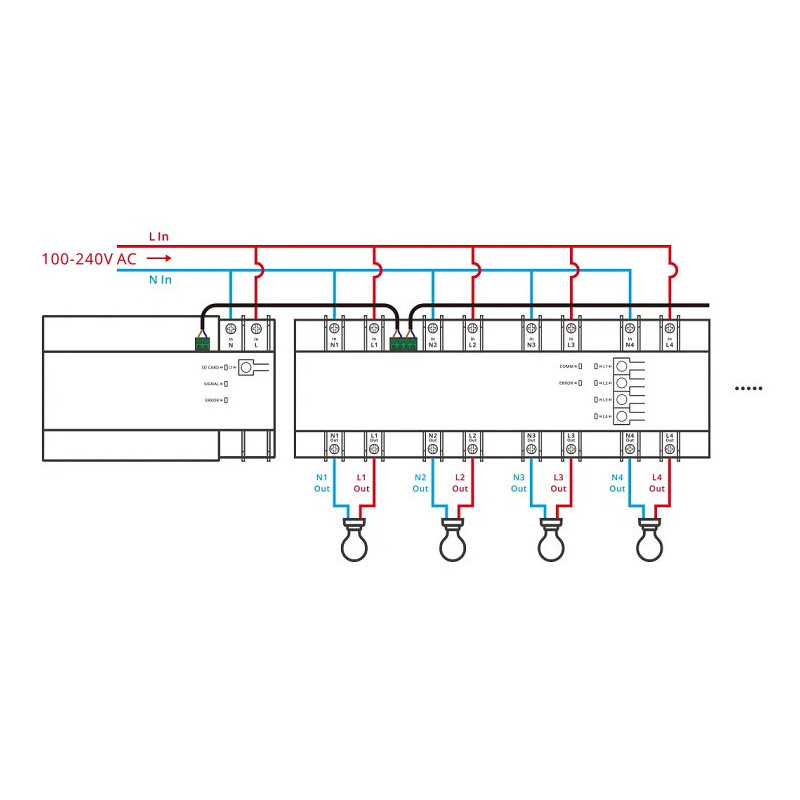

• Voltage: 100V~240V AC.


• Frequency: 50/60Hz.


• Current: max. 80A (20A per channel).


• Number of channels: 4.


• MCU: GD32F.


• Dimensions: 250 x 90 x 66.5 mm.


• Housing material: PC V0 (fireproof).


• Installation: on DIN rail.


• Connection to the control panel: RS485.


• Operating temperature: -10°C~+40°C.


• Operating humidity: 5%-95% (non-condensing).


• Weight: 584g.


• Color: white.


• Certificates: CE/UKCA/FCC/ROHS.
