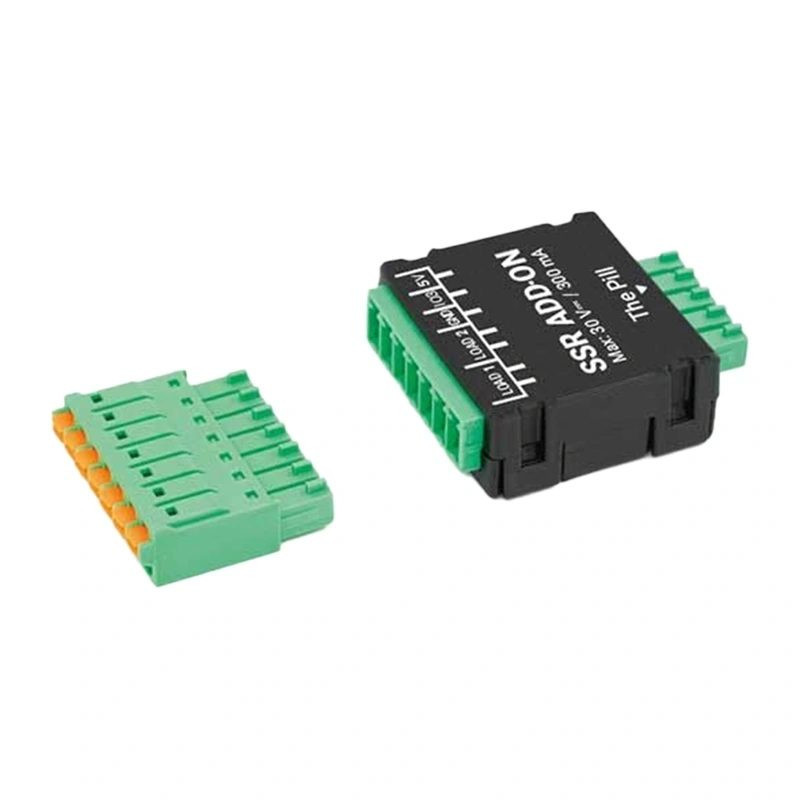

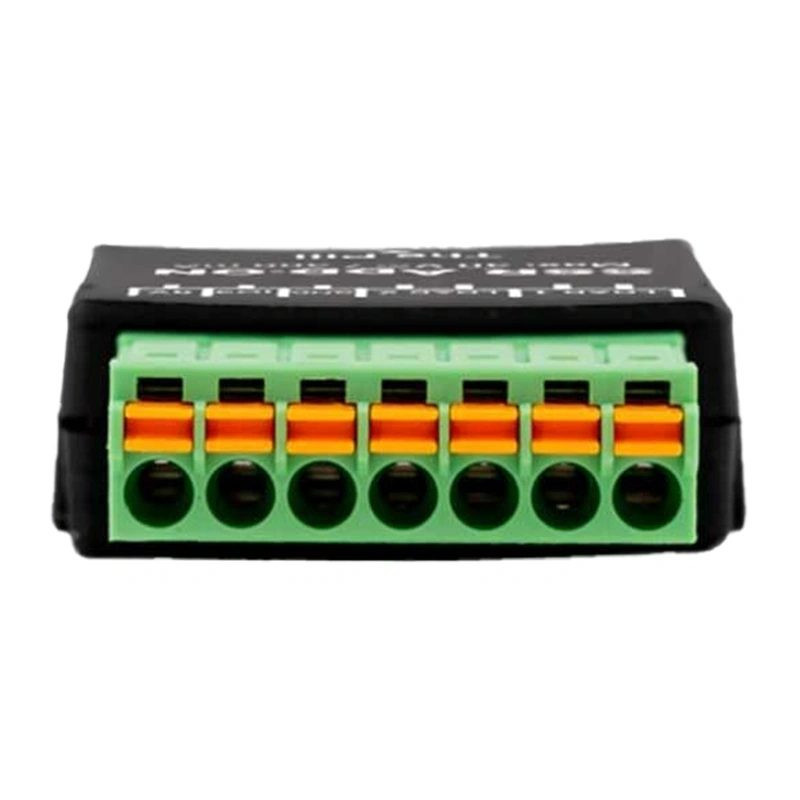

Solid State Relay Module - Shelly SSR Add-on Module Black
Product reference: 14-3800238073589

The " Shelly SSR Add-on Module Black" features two independently controlled solid-state relay outputs for loads up to 30 V and 300 mA DC per channel. The module, developed by "The Pill by Shelly," features a configurable 3.3 V IO3 port and connects using a 5-pin header.

Solid State Relay Module - Shelly SSR Add-on Module Black

Product reference: 14-3800238073589

The " Shelly SSR Add-on Module Black" features two independently controlled solid-state relay outputs for loads up to 30 V and 300 mA DC per channel. The module, developed by "The Pill by Shelly," features a configurable 3.3 V IO3 port and connects using a 5-pin header.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
31,46 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Shelly SSR additional module, black


" Shelly SSR" add-on module, black, has two independently controlled solid-state relay outputs for DC loads up to 30 V and 300 mA per channel. The module is designed for "The Pill by Shelly ", has a configurable 3.3 V IO3 port, and requires a 5-Terminal Add-on for connection.


  • Dual-channel SSR module for independently controlling two DC loads
  • Supports loads up to 30 V DC and 300 mA per channel
  • Silent, galvanically isolated solid-state switching for reliable operation
  • Compact black housing with configurable 3.3V IO3 input or output; requires separately sold 5-Terminal Add-on to connect to "The Pill by Shelly "

Product information

Product type Solid State Relay Add-on Module
Brand Shelly
Model SSR Add-on
Compatibility The Pill by Shelly
Color Black
Weight 12 grams

Technical specifications

Relay type Galvanically isolated solid state relay
Exits LOAD1 and LOAD2
Logical interface IO3, 3.3V logic level
IO3 configuration Configurable digital input or digital output
Additional terminals 5V and GND
Energy consumption Less than 0.6 W
Dimensions 36 × 31 × 11.5mm

Installation and operating conditions

Required accessory 5-Terminal Add-on for connecting to "The Pill by Shelly "; sold separately
Operating temperature 0°C to 40°C
Storage temperature From -20°C to 40°C
Operating humidity 30% to 70% relative humidity
Maximum working height 2,000 m

Safety warning

Warning Use only with compatible low voltage DC loads that meet the specifications listed. Before installing or connecting wires, disconnect power, observe correct polarity, and do not exceed 30 V DC or 300 mA per channel. Use the module only for its intended purpose and installation must be performed by a suitably qualified person.

Height50mm
Length150mm
Weight20 grams
Width100mm
