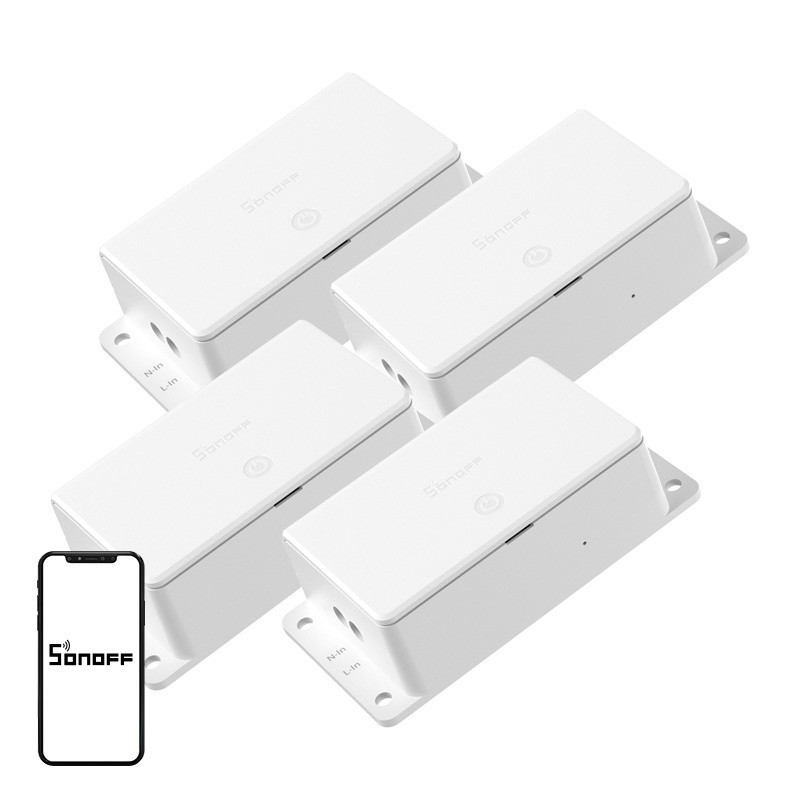

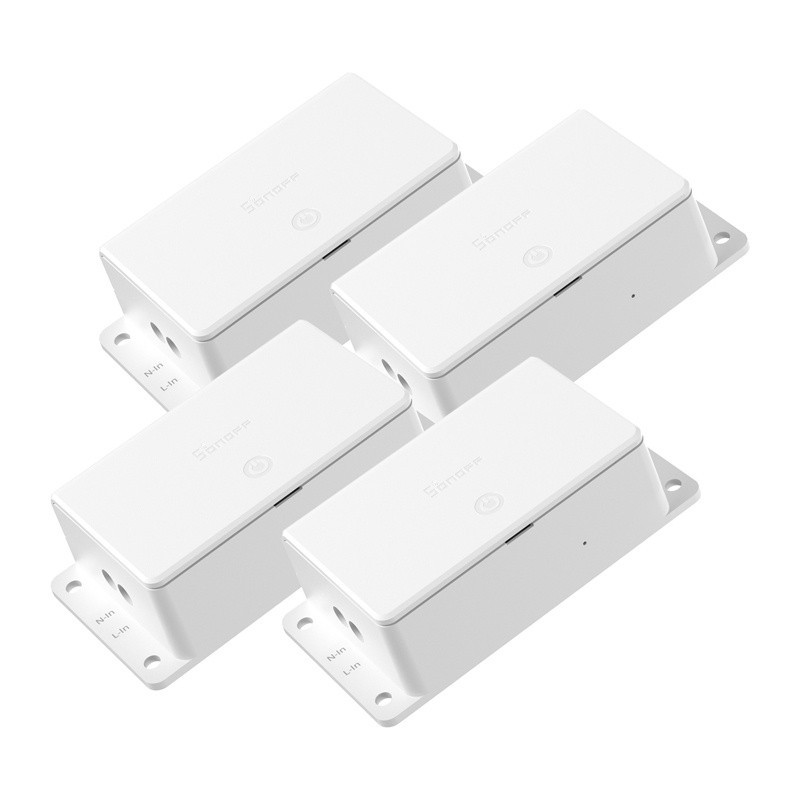

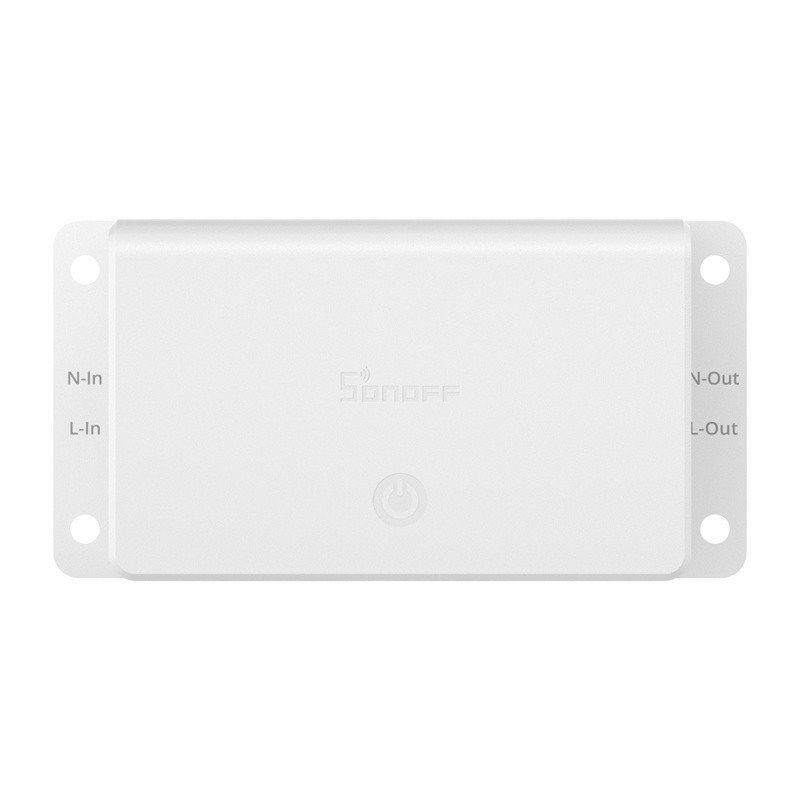

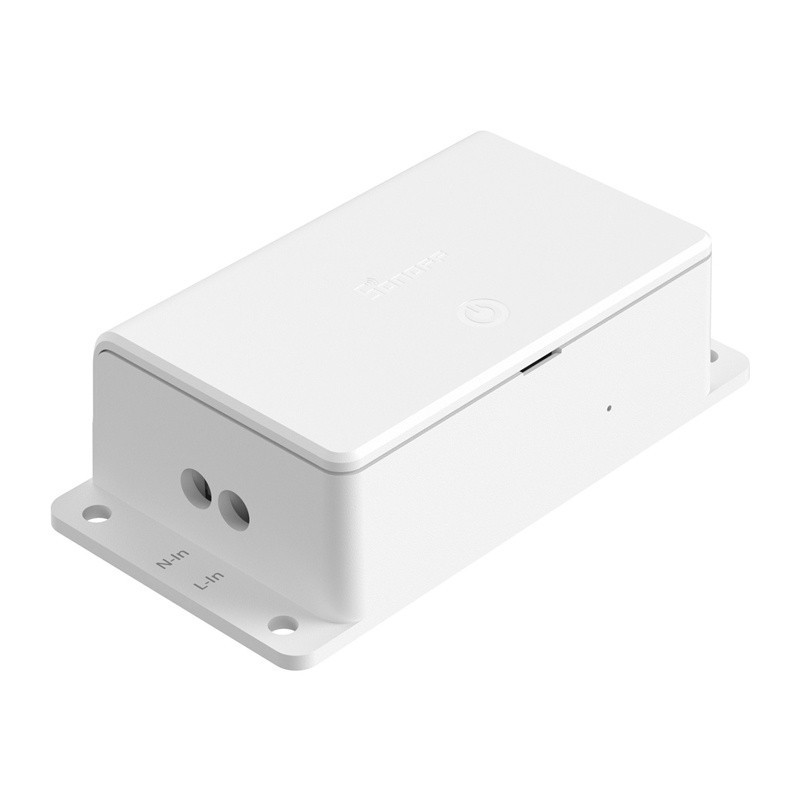

Four white " Sonoff Basic R5 Gen5" wireless switches allow you to control smart home devices via app, voice, physical button, or via Matter with impedance up to 10 A. Each switch supports 2.4 GHz wireless connectivity, schedules, and control over a local network, and its dimensions are 80.5 × 41.5 × 23.6 mm.
Four white " Sonoff Basic R5 Gen5" wireless switches allow you to control smart home devices via app, voice, physical button, or via Matter with impedance up to 10 A. Each switch supports 2.4 GHz wireless connectivity, schedules, and control over a local network, and its dimensions are 80.5 × 41.5 × 23.6 mm.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Four white " Sonoff Basic R5 Gen5" Wi-Fi switches allow you to control devices via the app, voice commands, a physical button, and via the Matter smart home system. They are designed for devices with a resistive load of up to 10 A. Each switch supports 2.4 GHz Wi-Fi, schedules, control via LAN, and measures 80.5 × 41.5 × 23.6 mm.
Product information | |
|---|---|
| Product type | Smart Wi-Fi Relay Switch |
| Brand | Sonoff |
| Model | BASIC-1GS |
| Series | Basic R5 Gen5 |
| Quantity | 4 switches |
| Color | White |
Technical specifications | |
| Power source | 100-240V AC, 50/60Hz |
| Maximum load | 10 A, up to 2,400 W for resistive loads |
| Wireless communication standard | Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz |
| Material | PC case |
| Wires | T40 copper wires; compatible with 16-14 AWG solid or stranded conductors |
| Operating temperature | −10°C-40°C |
| Operating humidity | 5-95% relative humidity, non-condensing |
| 80.5 × 41.5 × 23.6 mm for each switch | |
| Weight | 44.8g per switch |
Features and compatibility | |
| Management methods | eWeLink app, voice commands, built-in physical button, connected regular switch, control via LAN and near-field control |
| Smart home standard | Matter |
| Compatible platforms | Apple Home, Google Home, Amazon Alexa, Samsung SmartThings and Home Assistant |
| Automation | Schedules, scripts, group management and operation on a local network |
| Relay operating time | More than 40,000 switching cycles |
| Surge protection | Up to 1 kV |
| Flame resistance | Housing material complies with V0 class |
Complete set | |
| Kit contents |
|
Safety warning | |
| Electrical safety | For use in domestic electrical installations and to control compatible devices only. Installation and wiring should only be carried out by a qualified person with the power supply disconnected. Do not exceed the 10 A resistive load limit and do not use with incompatible loads. Follow all applicable electrical safety regulations and the user manual. |
| Height | 100mm |
| Length | 200mm |
| Weight | 70 g |
| Width | 150mm |
