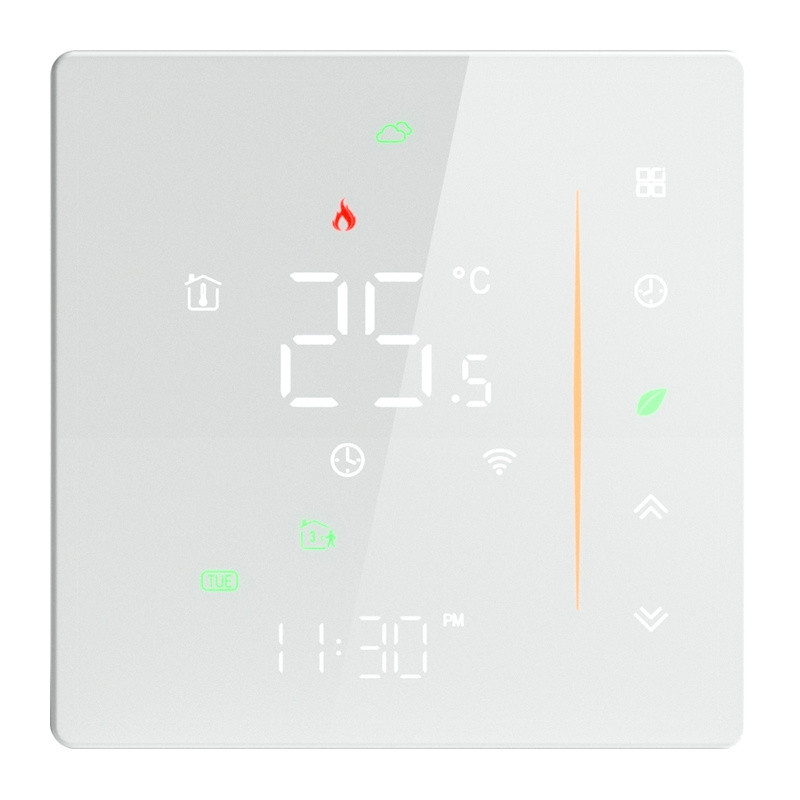

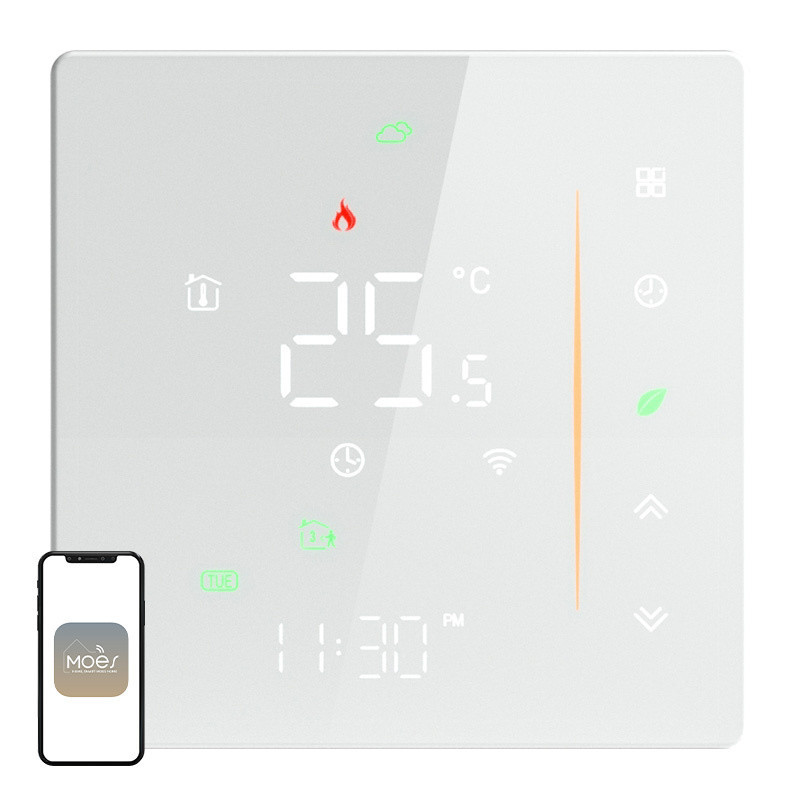

Wi-Fi thermostat for electric underfloor heating, withstanding up to 16 A load, operating at a frequency of 2.4 GHz and equipped with an NTC3950 temperature sensor. Control it via the Tuya Smart or " MOES " app, voice assistants and set a programmable 5+1+1 weekly schedule with up to six periods per day.
Wi-Fi thermostat for electric underfloor heating, withstanding up to 16 A load, operating at a frequency of 2.4 GHz and equipped with an NTC3950 temperature sensor. Control it via the Tuya Smart or " MOES " app, voice assistants and set a programmable 5+1+1 weekly schedule with up to six periods per day.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Wi-Fi thermostat for electric underfloor heating, supporting up to 16 A load, 2.4 GHz connection and NTC3950 temperature sensor. Controlled using "Tuya Smart" and MOES apps, voice assistants, also allows you to create programmable 5+1+1 weekly schedules, providing up to six periods per day.
Product information | |
|---|---|
| Product type | Wi-Fi thermostat for electric underfloor heating |
| Brand | MOES |
| Model | WHT-006-GB-WH |
| Color | White |
| Design | Frameless body with capacitive touch buttons |
Electrical specifications | |
| Power source | 95-240V AC, 50-60Hz |
| Maximum load | 16 A for electric heating |
| Energy consumption | Less than 1.5W |
| Temperature sensor | NTC3950, 10kΩ |
| Temperature accuracy | ±1°C |
| Temperature setting range | 5-35 °C |
| Room and display temperature range | 5-99 °C |
Communication and management | |
| Wi-Fi frequency | 2.4GHz, 2412-2484MHz |
| The need for a gateway | No need; connects directly to a compatible 2.4 GHz Wi-Fi network |
| Compatible apps | MOES and "Tuya Smart" apps |
| Compatibility with voice assistants | Amazon Alexa and Google Assistant |
| Operating modes | Automatic schedule and manual modes |
| Weekly planning | 5+1+1 programming, up to six heating periods per day |
| Maximum radio transmission power | Less than +16 dBm |
Installation and construction | |

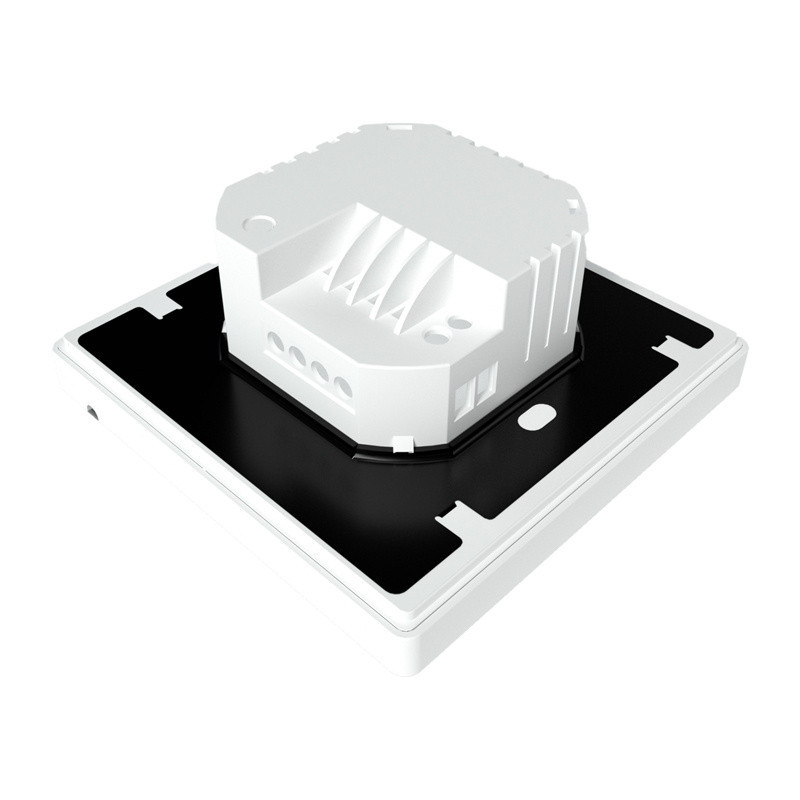

| Compatibility with mounting boxes | 86×86 mm square box or 60 mm European round box |
| Wire terminals | 2 × 1.5 mm² or 1 × 2.5 mm² cable |
| Housing material | Fireproof PC and ABS plastic |
| Protection class | IP20 |
| Operating temperature | 0-45°C |
| Operating humidity | 5-95% relative humidity, non-condensing |
| Storage temperature | −10-45 °C |
Complete set | |
| Contents |
|
Safety warning | |
| Warning | Use only with compatible electric heating systems. Installation and electrical connection work must be carried out by a qualified specialist, with the power supply switched off. Do not use outdoors or in damp locations - IP20 class does not protect against water. Do not exceed 16 A load. |
| Height | 100mm |
| Length | 200mm |
| Weight | 450 g |
| Width | 200mm |
