Smart Switch - Sonoff MINI-ZB2GS 2 Channel Zigbee Switch 10 A 16 A
Product reference: 14-6920075743616

Sonoff MINI-ZB2GS - a compact two-channel Zigbee 3.0 switch designed to control two independent electrical devices up to 10 A per channel and up to 16 A in total. Measuring just 45 × 39.4 × 16.8 mm and weighing 36.2 g, the device is compatible with Zigbee hubs, eWeLink, Home Assistant, ZHA and Zigbee2MQTT.

Smart Switch - Sonoff MINI-ZB2GS 2 Channel Zigbee Switch 10 A 16 A

Product reference: 14-6920075743616

Sonoff MINI-ZB2GS - a compact two-channel Zigbee 3.0 switch designed to control two independent electrical devices up to 10 A per channel and up to 16 A in total. Measuring just 45 × 39.4 × 16.8 mm and weighing 36.2 g, the device is compatible with Zigbee hubs, eWeLink, Home Assistant, ZHA and Zigbee2MQTT.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
33,64 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

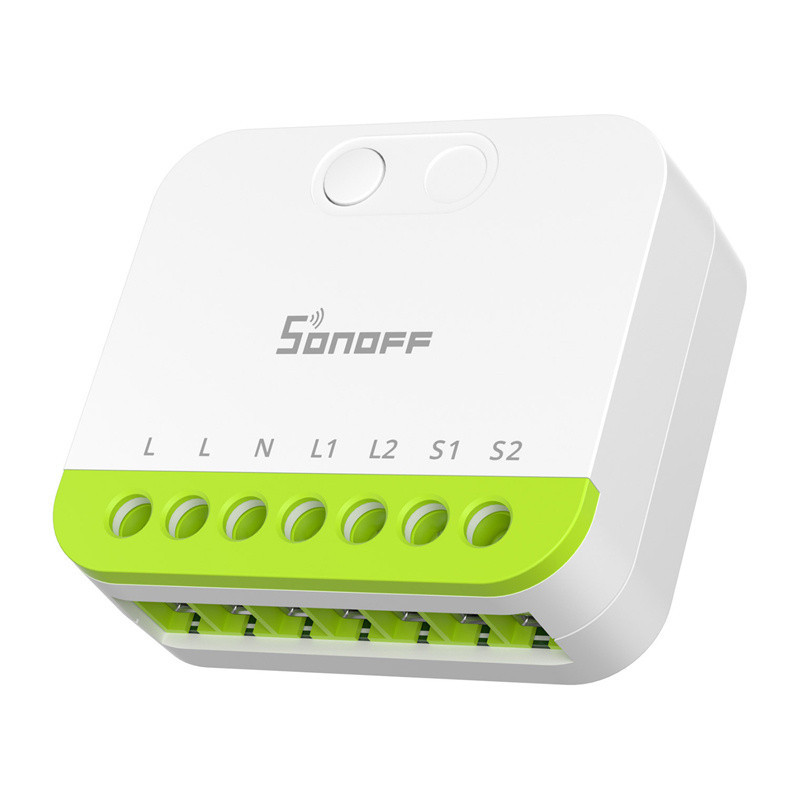

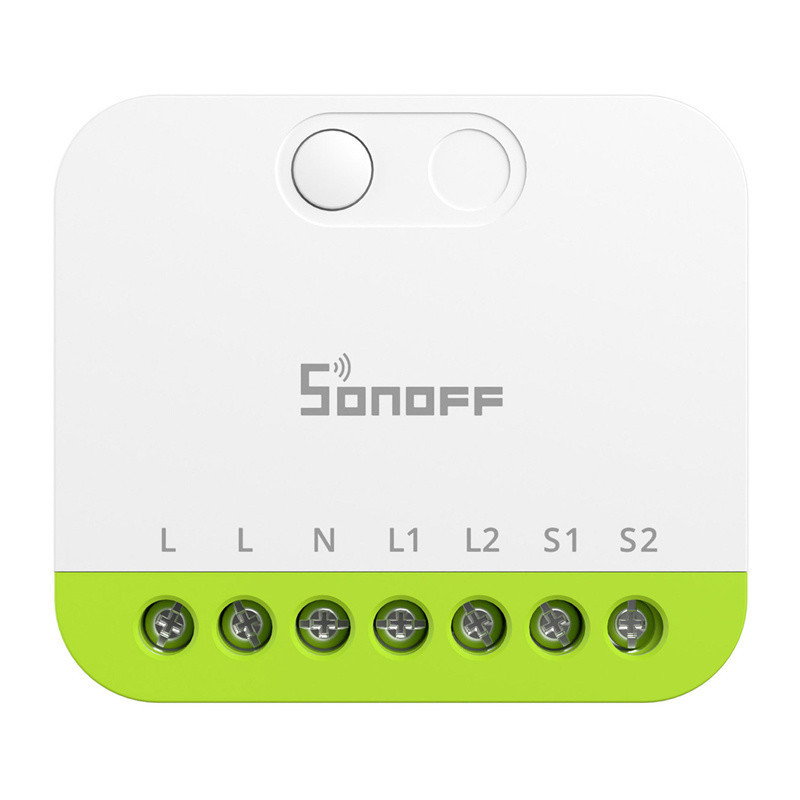

Sonoff MINI-ZB2GS 2-channel Zigbee switch


" Sonoff MINI-ZB2GS" - a compact two-channel Zigbee 3.0 switch designed to control two independent loads: up to 10 A for each channel and up to 16 A in total. Its dimensions are 45 × 39.4 × 16.8 mm, weight - 36.2 g. The switch works with Zigbee gateways, "eWeLink", "Home Assistant", ZHA and "Zigbee2MQTT".


  • Two independent Zigbee controlled channels for turning lights or other devices on and off. Load - up to 10 A per channel and up to 16 A in total.
  • Zigbee 3.0 connection with router function to help expand and stabilize your smart home network.
  • Works with eWeLink, Home Assistant via ZHA or Zigbee2MQTT and compatible Zigbee gateways.
  • Compact housing for convenient installation behind wall switches. Supports Detach Relay mode, schedules, scenarios and configurable switch-on behavior.

Product information

Product type Two-channel Zigbee smart switch
Brand Sonoff
Model MINI-ZB2GS
Color White
Dimensions 45 × 39.4 × 16.8mm
Weight 36.2 grams

Technical specifications

Power source 110-240V AC, 50/60Hz
Number of channels 2 independent channels
Maximum load 10 A per channel; 16 A total for resistive loads
Wireless communication protocol Zigbee 3.0 based on IEEE 802.15.4
Wireless function Zigbee router to expand network connectivity
Controller EFR32MG21
Housing material Fireproof PC plastic
Compatible platforms eWeLink, Home Assistant via ZHA or Zigbee2MQTT and compatible Zigbee gateways

Features and installation

Switch compatibility Compatible with bistable, monostable and SPDT wall switches
Operating modes Normal connection mode and Detach Relay mode
Power-on behavior Configurable: last state, enabled or disabled
Installation Mounted behind wall switches in type 86, ES or 120 flush-mounted boxes with a minimum depth of 60 mm
Required equipment Compatible Zigbee gateway or coordinator required for smart control and integration
Security features Overheating and surge protection
Certificates CE, FCC and RoHS

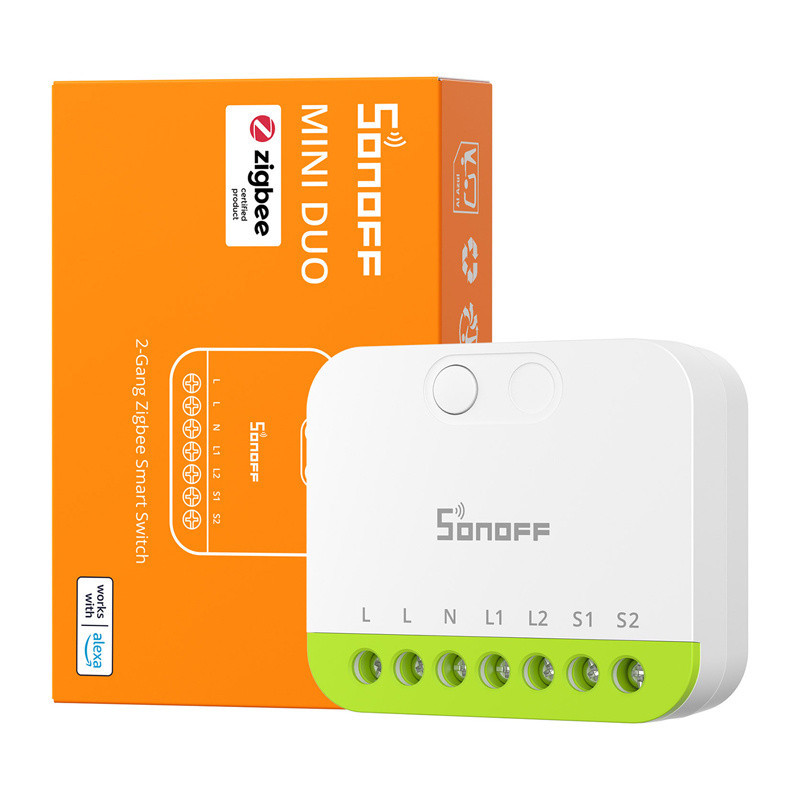

Complete set

Included
  • " Sonoff MINI-ZB2GS" two-channel Zigbee switch
  • User manual

Safety warning

Warning Installation involves mains voltage and must be carried out by a qualified electrician. Disconnect power before installation or maintenance. Use only within the specified voltage and load limits and install in a suitable enclosure. Do not use the switch for operations or loads exceeding its specification.

Height50mm
Length150mm
Weight60 g
Width100mm
