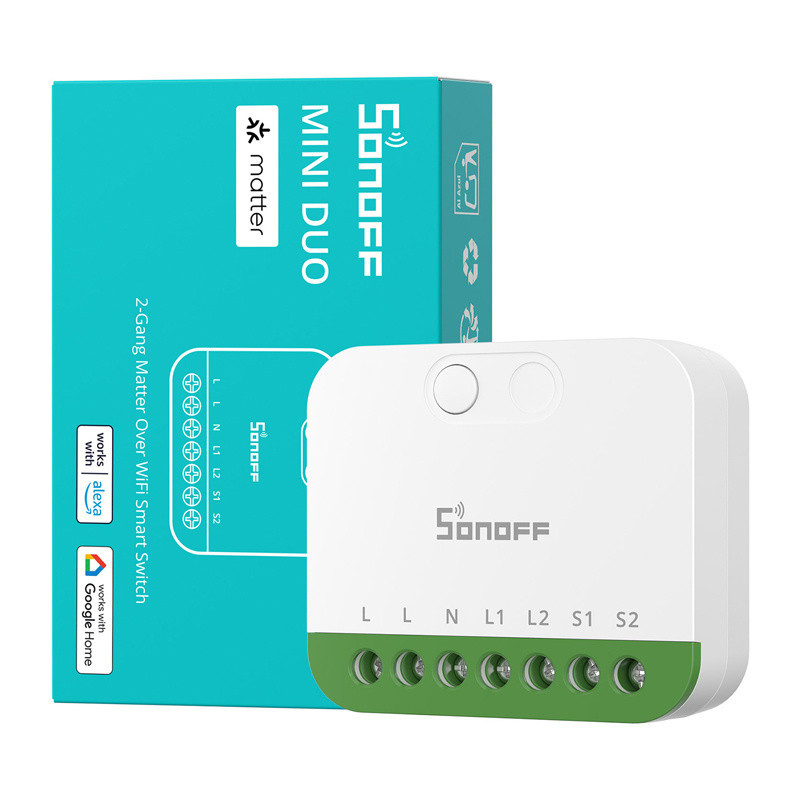

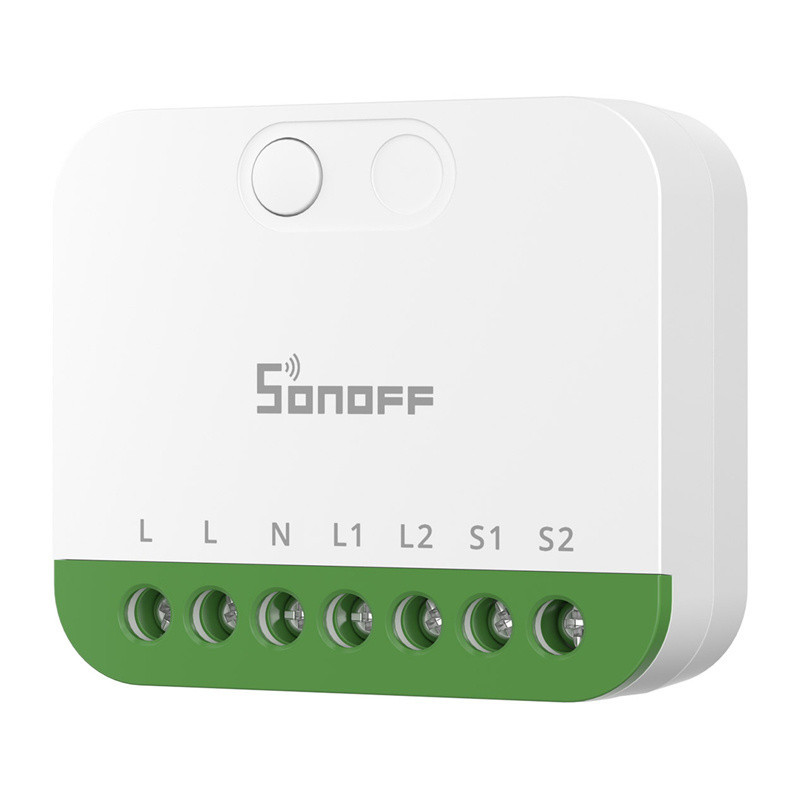

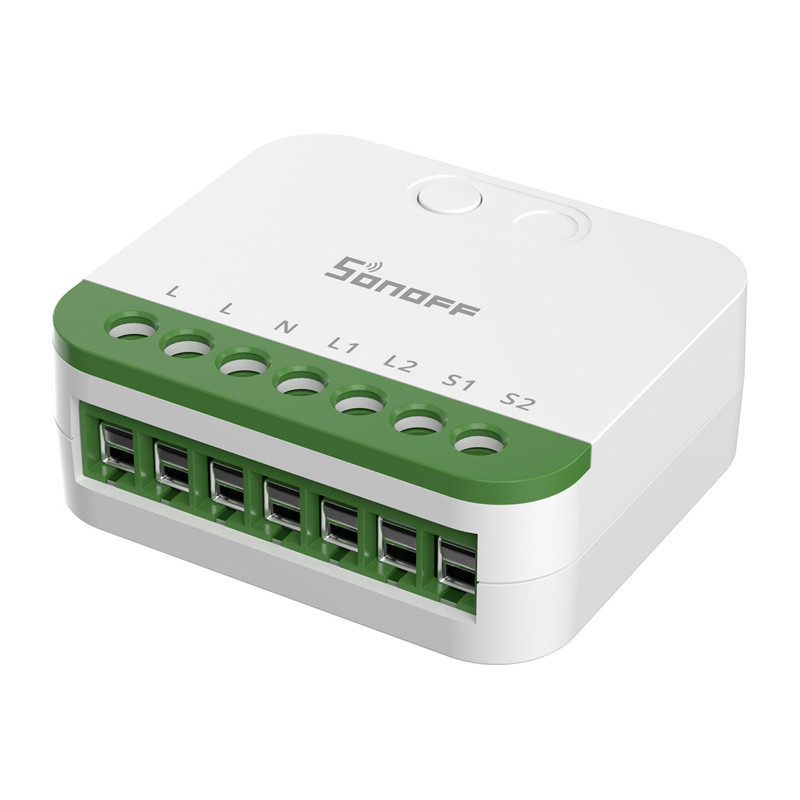

Sonoff MINI-2GS - white two-channel smart switch designed to control two independent loads via 2.4 GHz Wi-Fi, Matter or connected wall switches. Each channel supports up to 10 A, total load - up to 16 A; dimensions - 45 × 39.4 × 16.8 mm.
Sonoff MINI-2GS - white two-channel smart switch designed to control two independent loads via 2.4 GHz Wi-Fi, Matter or connected wall switches. Each channel supports up to 10 A, total load - up to 16 A; dimensions - 45 × 39.4 × 16.8 mm.





Sonoff MINI-2GS - white two-channel smart switch designed to control two independent loads via 2.4 GHz Wi-Fi, Matter or connected wall switches. Each channel supports up to 10 A, total load - up to 16 A; dimensions - 45 × 39.4 × 16.8 mm.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Sonoff MINI-2GS - white two-channel smart switch designed to control two independent loads using 2.4 GHz Wi-Fi, Matter or connected wall switches. Each channel supports up to 10 A, and the total load is up to 16 A. Dimensions - 45 × 39.4 × 16.8 mm.
Product information | |
|---|---|
| Product type | Two-channel smart switch |
| Brand | SONOFF |
| Model | MINI-2GS |
| Color | White |
| Quantity | 1 switch |
Technical specifications | |
| Power source | 110-240V AC, 50/60Hz |
| Wireless communication standard | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Wireless communication protocol | Matter over Wi-Fi |
| Controller | ESP32-C3FH4X |
| Supported switch types | Bistable, monostable and SPDT wall switches |
| Compatible ecosystems | Apple Home, Google Home, Amazon Alexa, Home Assistant and Samsung SmartThings |
| Supported app | "eWeLink" |
Installation and construction | |
| Dimensions | 45 × 39.4 × 16.8mm |
| Weight | 36.5 grams |
| Housing material | Fireproof PC |
| Compatible flush-mounted boxes | 86, EU and 120 boxes; minimum depth - 60 mm |

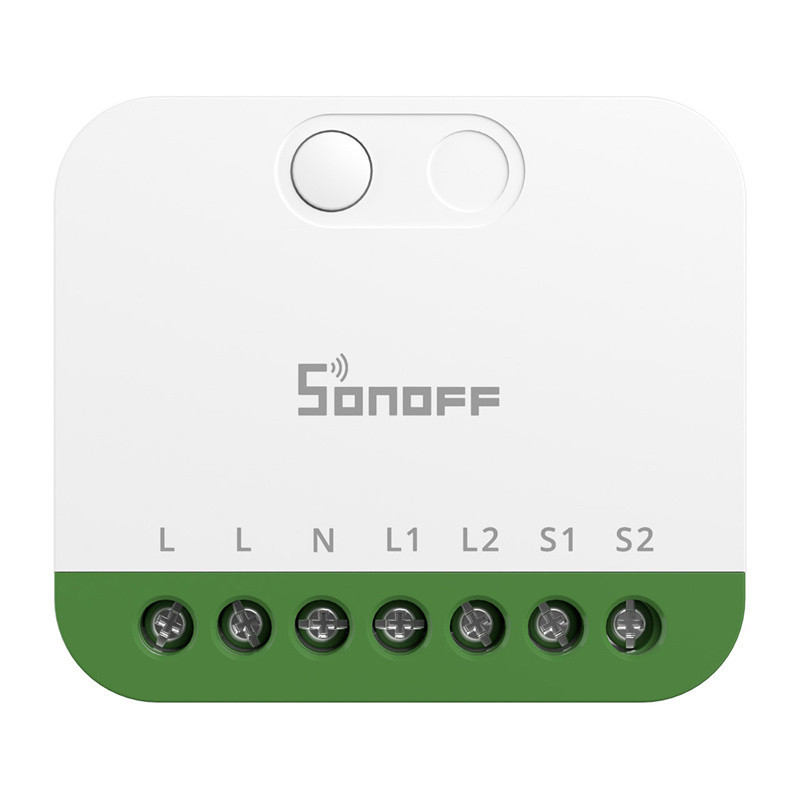

| Terminal connections | Phase wire, neutral wire, two outputs for switched devices and two switch inputs |
Features | |
| Management methods | Wall switch, mobile app, voice commands and smart home automation |
| Power-on behavior | Can choose last state, on or off |
| Power-on delay | Can be set from 1 to 3 seconds |
| Detach Relay Mode | Accessible through the eWeLink ecosystem and allows you to control smart lighting scenes without disconnecting the power to the light bulb |
| Security features | Overheating and surge protection |
Complete set | |
| Included |
|
Safety warning | |
| Warning | Only for fixed installation in electrical circuits using mains voltage. Installation and maintenance work must be carried out by a qualified electrician, with the power supply disconnected. Use only within the specified voltage and load limits, install in a suitable flush-mounted box. Do not use the switch for any purpose other than controlling compatible electrical loads. |
| Height | 50mm |
| Length | 150mm |
| Weight | 60 g |
| Width | 100mm |
