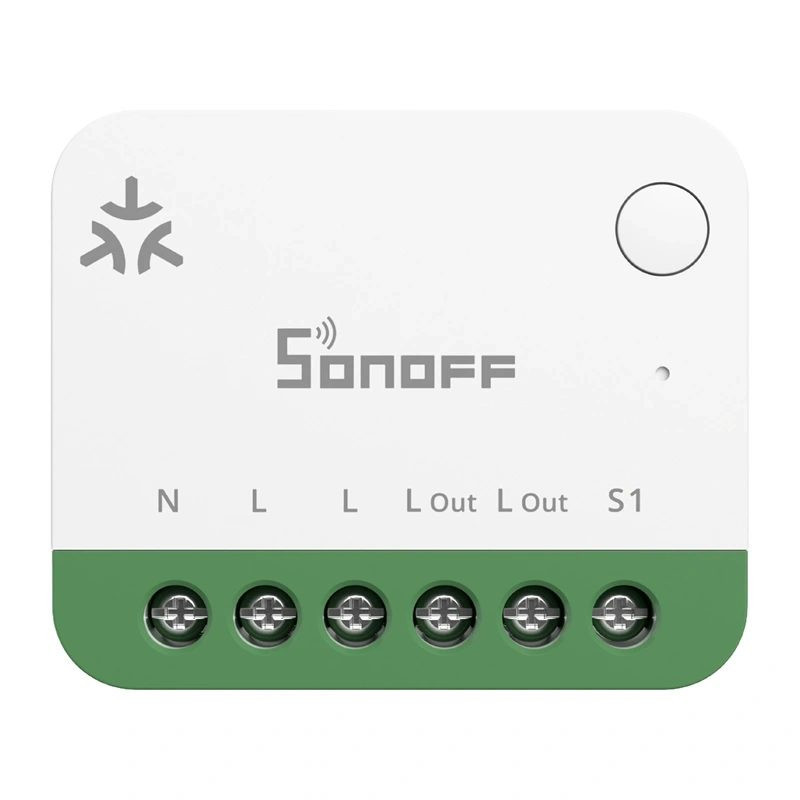

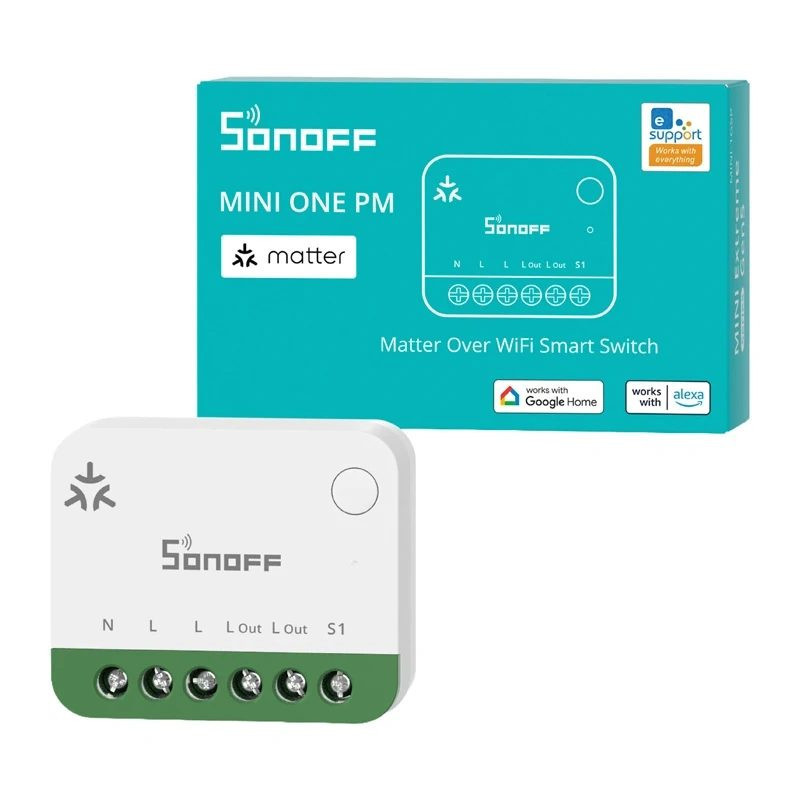

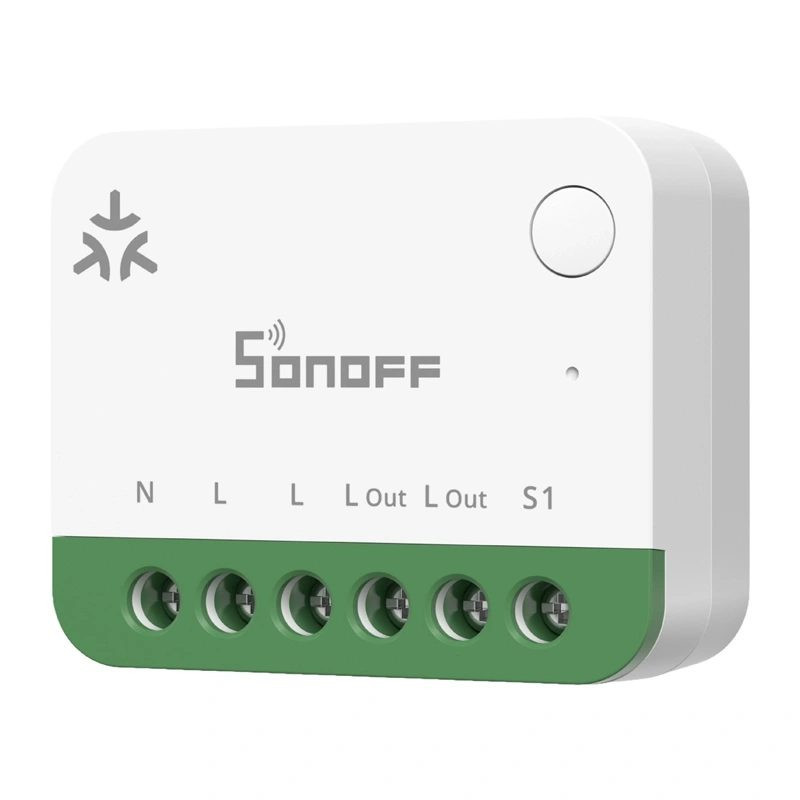

SONOFF MINI-1GSP - a compact smart Wi-Fi switch with Matter support, bidirectional power monitoring and up to 16 A load. Measuring just 39.5 × 33 × 16.8 mm and weighing 27.3 g, the device can be integrated with Apple Home, Google Home, Alexa, HTTP, WebSocket and MQTT.
SONOFF MINI-1GSP - a compact smart Wi-Fi switch with Matter support, bidirectional power monitoring and up to 16 A load. Measuring just 39.5 × 33 × 16.8 mm and weighing 27.3 g, the device can be integrated with Apple Home, Google Home, Alexa, HTTP, WebSocket and MQTT.




SONOFF MINI-1GSP - a compact smart Wi-Fi switch with Matter support, bidirectional power monitoring and up to 16 A load. Measuring just 39.5 × 33 × 16.8 mm and weighing 27.3 g, the device can be integrated with Apple Home, Google Home, Alexa, HTTP, WebSocket and MQTT.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
SONOFF MINI-1GSP - a compact smart Wi-Fi switch with Matter support, mutual energy metering and a maximum load of 16 A. Its dimensions are 39.5 × 33 × 16.8 mm, weight - 27.3 g. The device supports Apple Home, Google Home, Alexa, HTTP, WebSocket and MQTT integration.
Product information | |
|---|---|
| Product type | Smart Wi-Fi Relay Switch |
| Brand | SONOFF |
| Model | MINI-1GSP |
| Series | MINI Extreme Series Gen5 |
| Color | White and green |
| Housing material | PC plastic |
| Dimensions | 39.5 × 33 × 16.8mm |
| Net weight | 27.3 grams |
Electrical characteristics | |
| Nominal voltage | 100-240V AC, 50/60Hz |
| Maximum load | 16 A |
| Maximum power | 3,680W |
| Energy measurement | Mutual |
| Security features | Overload and overheating protection that automatically disconnects power when set limits are exceeded |
Communication and integration | |
| Wireless communication standard | Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz |
| Smart home standard | Matter |
| Compatible ecosystems | Apple Home, Google Home and Alexa |
| Communication interfaces | HTTP, WebSocket, MQTT and Open API |
| Local governance | Integrated web console for device management and access to energy data over the local network |
Installation and conditions of use | |
| Installation | Concealed installation indoors |
| Compatible wire material | Copper |
| Compatible cable type | Single-core or multi-core cable |
| Recommended cable cross-section | 0.75-2.5 mm² |
| Operating temperature | From -10°C to 40°C |
| Operating humidity | 10-90% RH, non-condensing |
Included | |
| Complete set |
|
Safety warning | |
| Electrical safety | For indoor use and installation only as intended. Installation and wiring must be carried out by a qualified person before disconnecting the power supply. Do not exceed 16 A maximum load and 3,680 W maximum power. Use only compatible copper wires. |
| Height | 50mm |
| Length | 150mm |
| Weight | 50 g |
| Width | 100mm |
