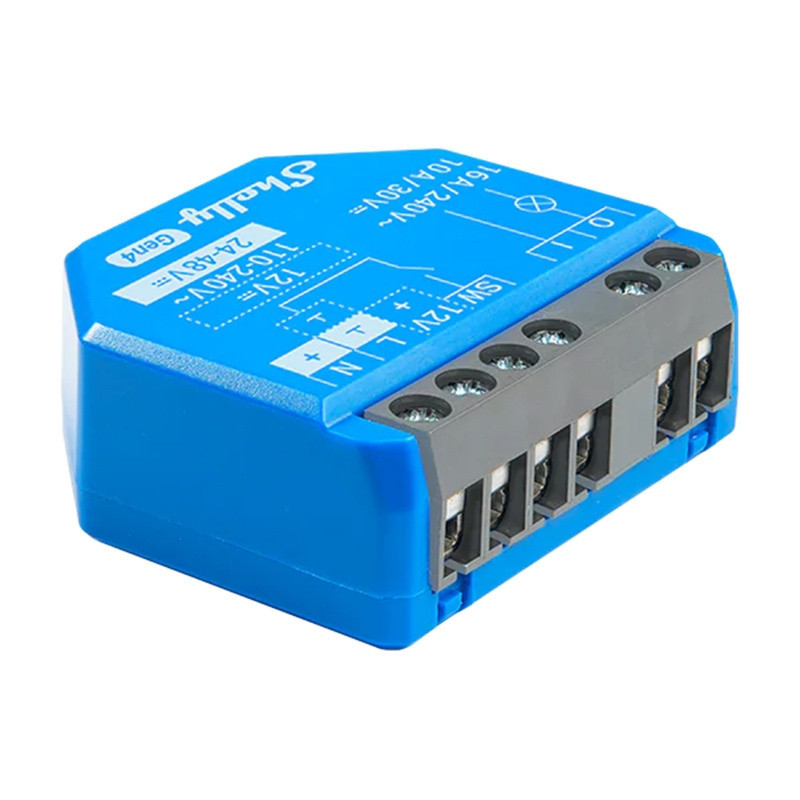

Smart Relay Controller - Shelly 1 Gen4 Wi-Fi Bluetooth Zigbee Matter 16 A 240 V AC
Product reference:
14-3800238070687
" Shelly 1 Gen4" - a compact smart relay controller with voltage-independent contacts for remote control of electrical appliances. It supports Wi-Fi, Bluetooth, Zigbee, Matter, MQTT, schedules and scenarios, and can also control a load of up to 16 A at 240 V AC.
Smart Relay Controller - Shelly 1 Gen4 Wi-Fi Bluetooth Zigbee Matter 16 A 240 V AC
Product reference:
14-3800238070687
" Shelly 1 Gen4" - a compact smart relay controller with voltage-independent contacts for remote control of electrical appliances. It supports Wi-Fi, Bluetooth, Zigbee, Matter, MQTT, schedules and scenarios, and can also control a load of up to 16 A at 240 V AC.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Shelly 1 Gen4
Shelly 1 Gen4 - a compact smart relay controller with potential-free contacts for remotely turning on and off electrical appliances. It supports Wi-Fi, Bluetooth, Zigbee, Matter, MQTT, schedules, scenarios and loads up to 16 A at 240 V AC.
- Compact smart relay controller with potential-free contacts for remote control of lighting, household appliances, pumps and other electrical devices.
- Supports Wi-Fi, Zigbee, Matter, and Bluetooth, allowing for flexible integration with Google Home, Alexa, SmartThings, and other smart home systems.
- Control is possible on a local network or over the Internet, scheduling, online configuration, MQTT, HTTP API, WebHooks and automation using ShellyScript.
- Supports loads up to 16 A at 240 V AC and can operate without a neutral wire. Blue housing dimensions - 37 × 42 × 16 mm.
Product information | |
|---|---|
| Product type | Smart relay controller |
| Brand | Shelly |
| Model | Shelly 1 Gen4 |
| Contact type | Potential-free contacts |
| Body color | Blue |
| Housing material | Plastic |
| Dimensions | 37 × 42 × 16 mm |
| Weight | 26 grams |
Electrical characteristics | |
| Power source | 110-240 V AC; 24-48 V DC; 12V DC |
| Energy consumption | Less than 1W |
| Is a neutral wire required? | No |
| Maximum switching voltage | 240V AC or 30V DC |
| Maximum switching current | 16 A at 240 V AC; 10 A at 30 V DC |
| Integrated temperature sensor | Yes |
Connection and communication | |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz |
| Bluetooth | Bluetooth 4.2 |
| "Zigbee" | IEEE 802.15.4, with repeater function |
| "Matter" | Supported |
| Wi-Fi transmission power | Up to 20 dBm |
| Bluetooth transmission power | Up to 4 dBm |
| Zigbee transmission power | Up to 20 dBm |
Control and automation | |
| Management methods | Local network or internet connection |
| Configuration | Web interface |
| Supported platforms | Google Home, Amazon Alexa, SmartThings and other compatible systems |
| Protocols and APIs | MQTT, MQTT(S), HTTP API, WebHooks, UDP and KNXnet/IP |
| Schedules | Up to 20 |
| WebHooks | Up to 20, up to 5 URLs for each WebHook |
| Scenarios | ShellyScript supported |
| Processor | ESP- Shelly -C68F |
| Flash memory | 8MB |
Installation and environmental conditions | |
| Installation | Wall box or suitable electrical panel |
| Compatible cable cross-section | 0.2-2.5 mm² |
| Operating temperature | −20°C-40°C |
| Operating humidity | 30-70% relative humidity |
| Maximum installation height | Up to 2,000 m |
Safety warning | |
| This product is intended to control electrical circuits within the specified voltage and current limits. Installation and connection work must be performed by a qualified electrician. Before installation or maintenance, disconnect power, use appropriate overcurrent protection, and install the controller in a suitable electrical panel. Do not exceed the rated load and do not use the device for any purpose other than controlling compatible electrical equipment. | |
| Height | 50mm |
| Length | 100mm |
| Weight | 40 grams |
| Width | 100mm |
