Four-channel smart switch module for controlling lights, gates, pumps, blinds and other devices via Wi-Fi, Bluetooth, 433 MHz radio frequency remote control or manual buttons. Supports 7-32 V AC/DC or 5 V USB-C power supply, and each channel can drive up to 10 A load; control is possible via " AVATTO ", "Tuya Smart" and "Smart Life" apps.
Four-channel smart switch module for controlling lights, gates, pumps, blinds and other devices via Wi-Fi, Bluetooth, 433 MHz radio frequency remote control or manual buttons. Supports 7-32 V AC/DC or 5 V USB-C power supply, and each channel can drive up to 10 A load; control is possible via " AVATTO ", "Tuya Smart" and "Smart Life" apps.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

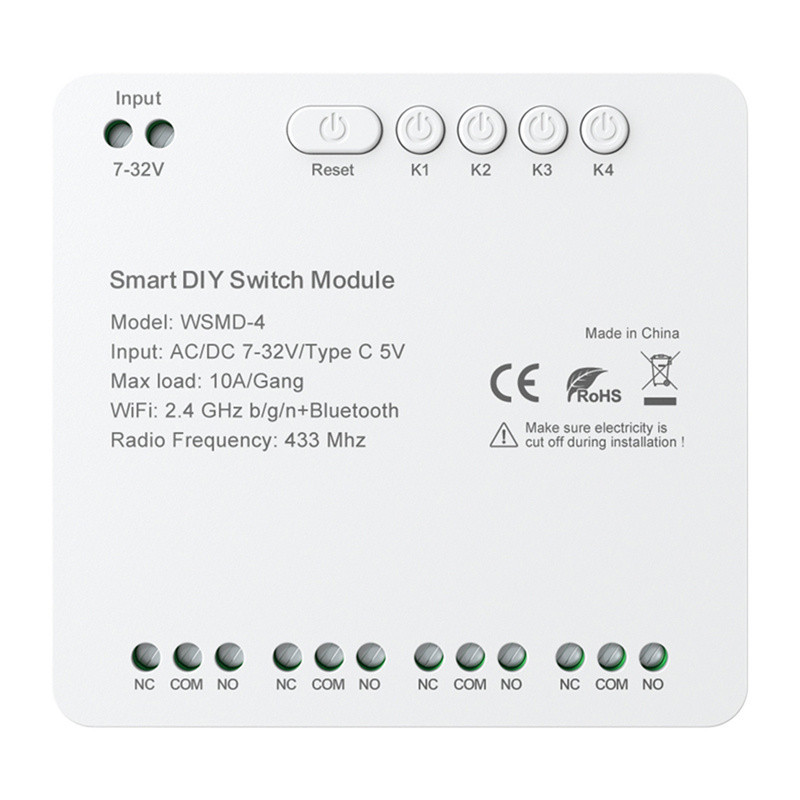

Four-channel smart DIY switch module for controlling lights, gates, pumps, blinds and other devices via Wi-Fi, Bluetooth, 433 MHz RF remote control or manual buttons. Supports 7-32 V AC or DC power supply and 5 V USB-C power supply. Each channel can load up to 10 A. Control is possible using AVATTO, Tuya Smart and Smart Life apps.
Product information | |
|---|---|
| Product type | Four-channel smart DIY switch module |
| Brand | AVATTO |
| Model | WSMD-4 32V |
| Channels | 4 independently controlled channels |
| Management methods | Wi-Fi, Bluetooth, 433 MHz RF remote control and manual buttons |
Technical specifications | |
| Power input | 7-32V AC or DC or 5V USB-C |
| Maximum load | Up to 10 A per channel |
| Wi-Fi | 2.4 GHz, IEEE 802.11 b/g/n |
| Bluetooth | Supported |
| RF frequency | 433MHz |
| Operating temperature | −10°C-+40°C |
| Connection terminals | Screw terminals for power and device connection |
Compatibility and features | |
| Mobile apps | AVATTO, Tuya Smart and Smart Life |
| Smart features | Schedules, automation, and device grouping |
| Voice control | Amazon Alexa and Google Assistant |
| Proper use | For lamps, gates, pumps, blinds and other compatible low voltage devices |
| Certificates | CE, RoHS |
The set includes: | |
| Contents |
|
Safety warning | |
| Warning | Use only with a compatible 7-32V AC or DC or 5V USB-C power supply and do not exceed a maximum load of 10A per channel. Installation and wiring must be carried out in accordance with the terminal markings and applicable electrical safety regulations. Disconnect power before connecting wires or performing maintenance. The module is intended for use in low-voltage DIY and automation applications. Do not connect directly to mains voltage. |
| Height | 70mm |
| Length | 180mm |
| Weight | 300g |
| Width | 120mm |
