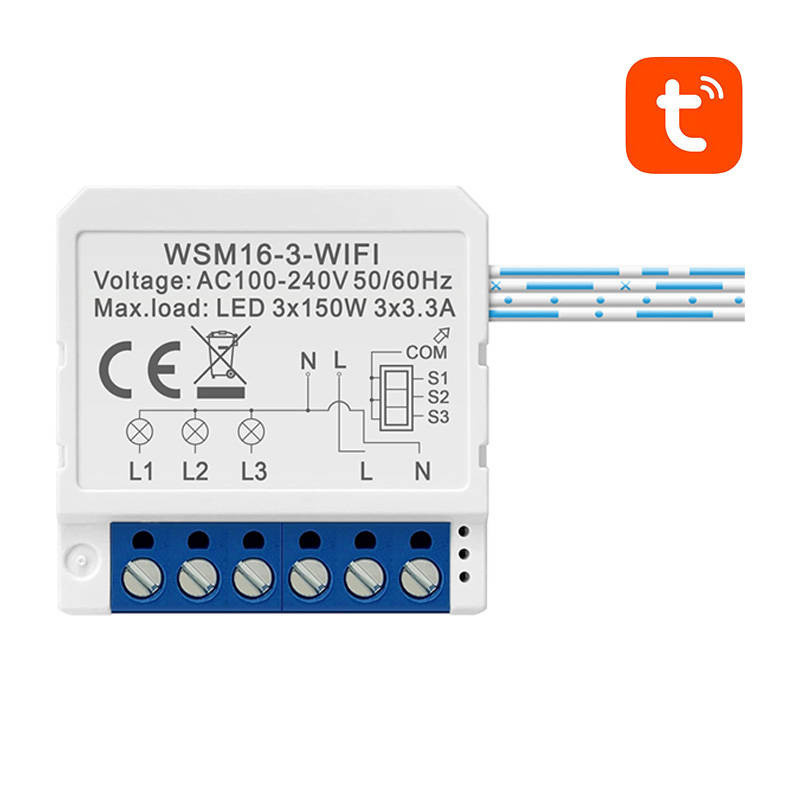

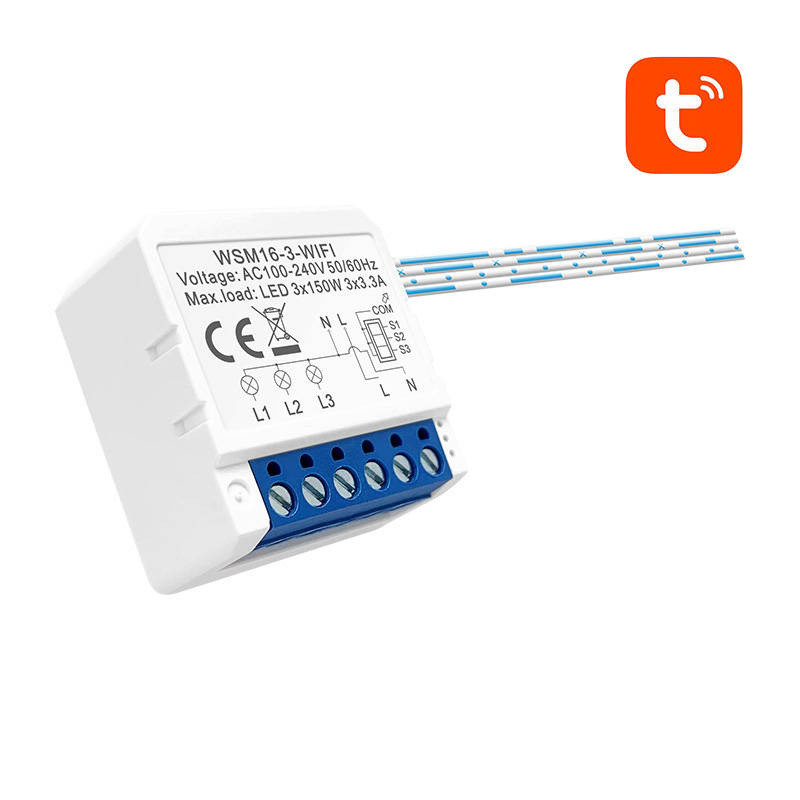

Three-channel Wi-Fi switch module for controlling lighting via the TUYA/Smart Life app, Google Assistant or Amazon Alexa. The white " Avatto WSM16-W3" supports 100-240 V AC voltage, up to 3 × 150 W LED load and is suitable for installation in tight spaces.
Three-channel Wi-Fi switch module for controlling lighting via the TUYA/Smart Life app, Google Assistant or Amazon Alexa. The white " Avatto WSM16-W3" supports 100-240 V AC voltage, up to 3 × 150 W LED load and is suitable for installation in tight spaces.



Three-channel Wi-Fi switch module for controlling lighting via the TUYA/Smart Life app, Google Assistant or Amazon Alexa. The white " Avatto WSM16-W3" supports 100-240 V AC voltage, up to 3 × 150 W LED load and is suitable for installation in tight spaces.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Three-channel Wi-Fi switch module for controlling lights via TUYA / Smart Life app, Google Assistant or Amazon Alexa. White " Avatto WSM16-W3" supports 100-240 V AC voltage, up to 3 × 150 W LED load and is suitable for installation in small spaces.
Product information | |
|---|---|
| Product type | Three-channel smart Wi-Fi switch module |
| Brand | Avatto |
| Model | WSM16-W3 |
| Color | White |
| Channels | 3 |
Technical specifications | |
| Input voltage | 100-240V AC, 50/60Hz |
| Maximum load | LED: 3 × 150 W; 3 × 3.3 A |
| Wi-Fi standard | IEEE 802.11 b/g/n |
| Wi-Fi frequency | 2.412-2.484 GHz |
| Wireless range | Up to 100 m |
| Operating temperature | −10°C-40°C |
| Dimensions | 39 × 39 × 19 mm |
| Protection class | IP20 |
Connectivity and features | |
| Mobile app | TUYA / "Smart Life" |
| Compatibility with voice assistants | Amazon Alexa and Google Assistant |
| Control functions | Remote on/off, schedules, timers, scenarios, group control and automation |
| Status memory in case of power failure | Restores the last switch state after a power failure |
| Installation | Suitable for installation in electrical boxes or directly in the luminaire |
| Connection configuration | Supports two-way connection |
Safety information | |
| Safety warning | For indoor use only, in dry environments. Installation and connection to AC mains voltage must be carried out by a qualified electrician. Disconnect the power supply before installation or maintenance. Do not exceed the specified voltage and load limits. |
| Height | 60mm |
| Length | 100mm |
| Weight | 80 g |
| Width | 100mm |
