Smart Relay Switch - Sonoff THR320D White
Product reference: 14-6920075777543

The smart WiFi relay switch " Sonoff THR320D White" allows you to remotely control devices and monitor temperature and humidity using the eWeLink app. It supports loads up to 20 A, 2.4 GHz WiFi, schedules, automation, and compatible RJ9 sensors.

Smart Relay Switch - Sonoff THR320D White

Product reference: 14-6920075777543

The smart WiFi relay switch " Sonoff THR320D White" allows you to remotely control devices and monitor temperature and humidity using the eWeLink app. It supports loads up to 20 A, 2.4 GHz WiFi, schedules, automation, and compatible RJ9 sensors.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
33,37 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Sonoff THR320D White


Smart WiFi relay switch for remote control and monitoring of temperature and humidity via eWeLink app. " Sonoff THR320D White" supports up to 20A load, 2.4GHz WiFi connection, schedules, automation and compatible RJ9 sensors.

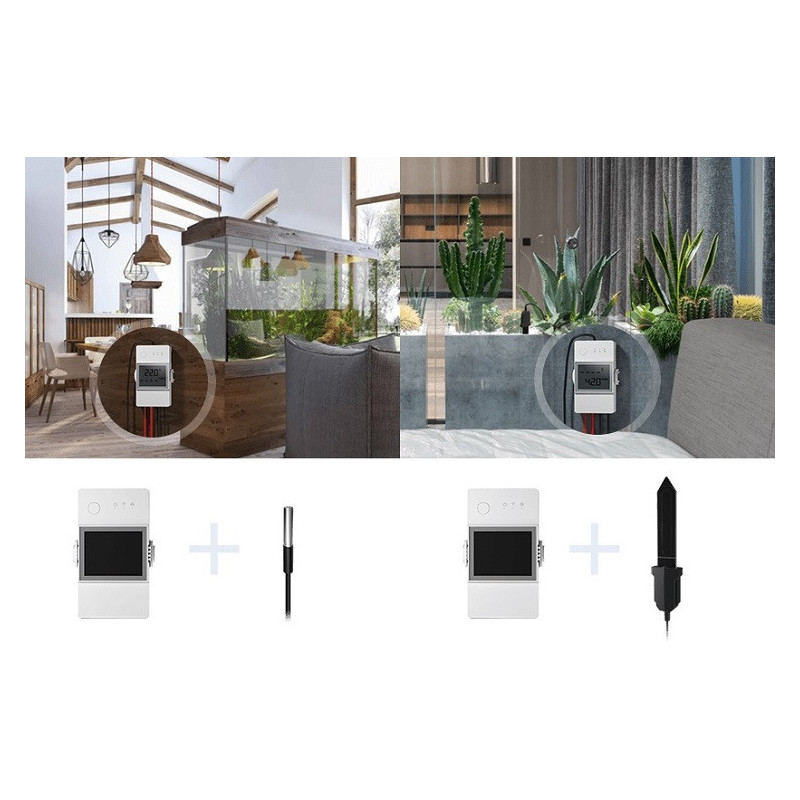

  • Smart WiFi relay switch for remote control of high-power devices up to 20 A, including heating, irrigation and greenhouse systems.
  • Supports temperature, humidity and soil moisture sensors connected via RJ9 4P4C connector for automated control.
  • The eWeLink app allows you to control the switch, set schedules and up to 8 programs. LAN connection, Amazon Alexa and Google Assistant are supported.

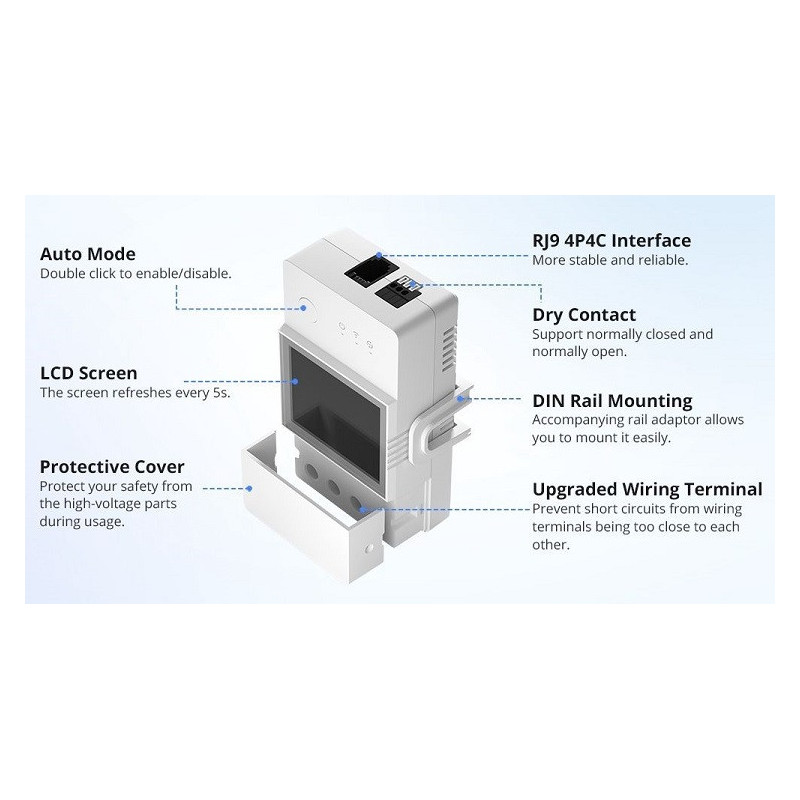

  • White housing made of flame-retardant PC V0 plastic, large manual control button, protective front cover and DIN rail mounting.

Product information

Product type Smart WiFi Relay Switch
Brand Sonoff
Model THR320D
Color White
Material Flame retardant PC V0 plastic

Electrical characteristics

Rated voltage 100-240V AC, 50/60Hz
Maximum current 20 A
Wireless communication standard IEEE 802.11 b/g/n
WiFi frequency 2.4GHz

Connections and installation

Sensor connector RJ9 4P4C
Compatible sensors Temperature, humidity and soil moisture sensors
Confirmation DIN rail
Dimensions 98 × 54 mm

Management and compatibility

Control method "eWeLink" app and front manual control button
Automation Timers, schedules, automatic mode and up to 8 programs
Network features Control via LAN when there is no internet access
Compatibility with smart home systems Amazon Alexa, Google Assistant, Home Assistant and IFTTT
Monitoring Real-time temperature and humidity monitoring, alerts, historical graphs, and six-month data export

Complete set

In the set
  • " Sonoff THR320D" smart relay switch
  • DIN mounting rail
  • Instructions for use

Safety warning

Warning Only intended for indoor electrical installation and control of compatible loads. Installation and wiring work must be carried out by a qualified person with the power supply disconnected. Do not exceed the rated current of 20 A, do not use damaged cables and do not operate the switch outside the specified voltage range. Protect the device from undue moisture and use only compatible sensors and equipment.

Height98 mm
Length31 mm
Weight146 g
Width54 mm
