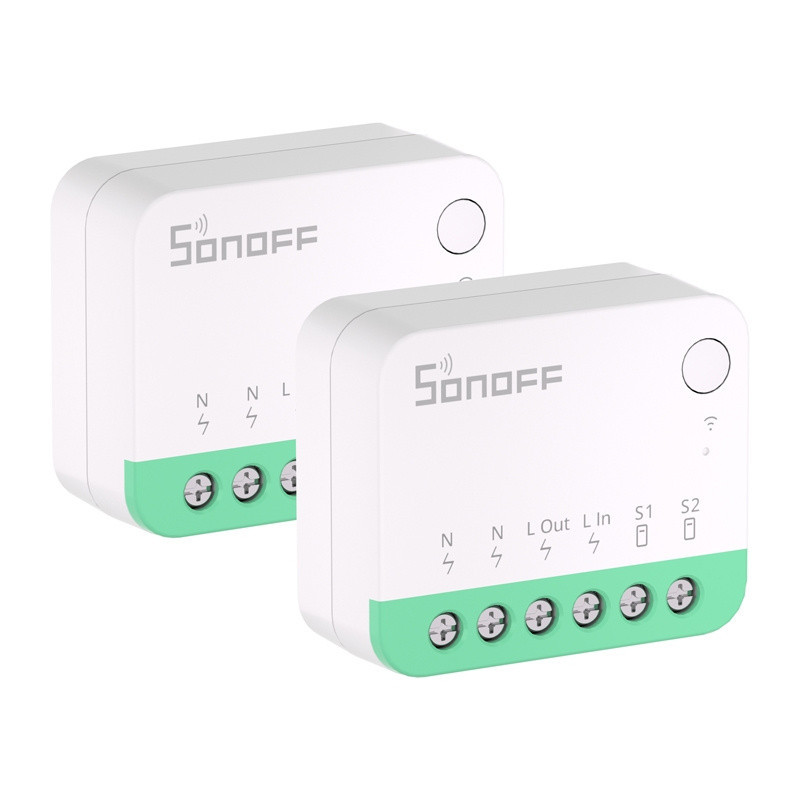

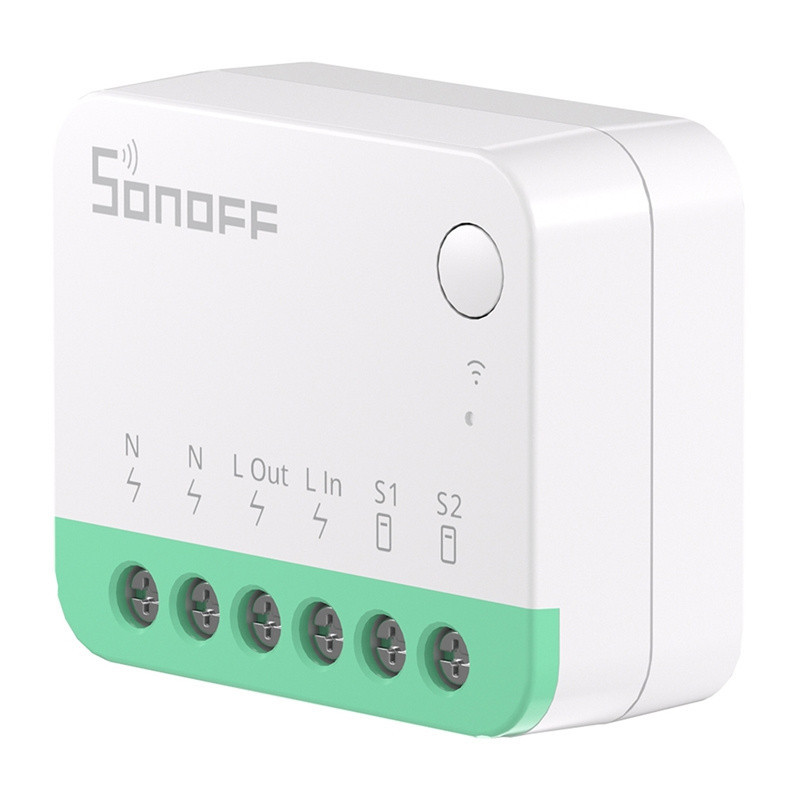

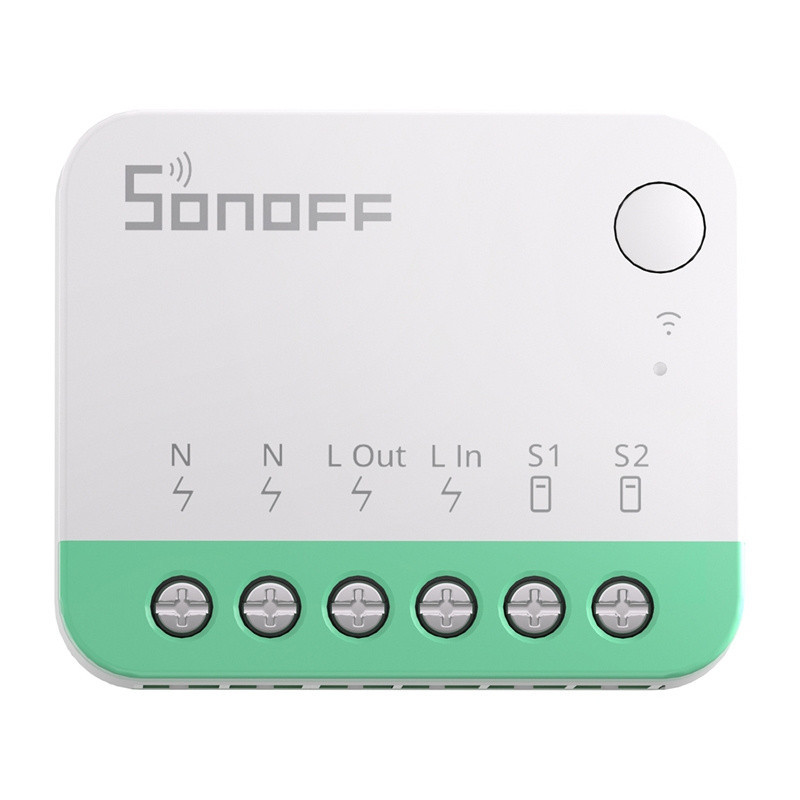

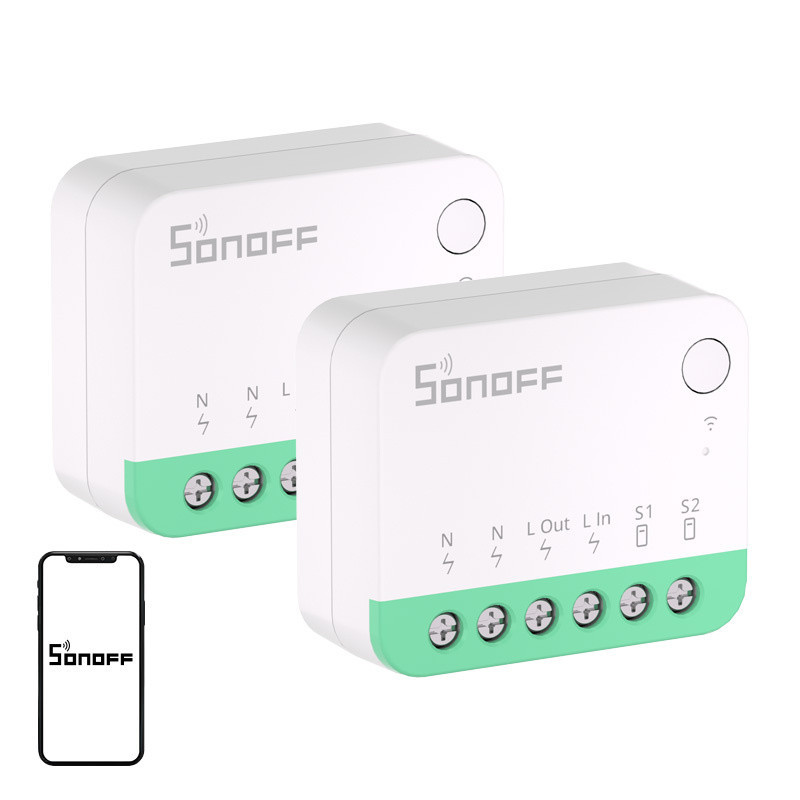

SONOFF MINIR4M - a compact, Matter-certified wireless relay module designed to remotely control lighting and electrical appliances via compatible smart home platforms. The 2-pack modules support 100-240 V AC voltage, up to 10 A load and 2.4 GHz wireless communication; each dimensions - 39.5 × 33 × 16.8 mm.
SONOFF MINIR4M - a compact, Matter-certified wireless relay module designed to remotely control lighting and electrical appliances via compatible smart home platforms. The 2-pack modules support 100-240 V AC voltage, up to 10 A load and 2.4 GHz wireless communication; each dimensions - 39.5 × 33 × 16.8 mm.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
SONOFF MINIR4M - a compact, Matter-compatible Wi-Fi relay module designed to remotely control lighting and electrical appliances via compatible smart home platforms. The kit includes 2 modules that support 100-240 V AC voltage, up to 10 A load and 2.4 GHz Wi-Fi connection. Dimensions of one module - 39.5 × 33 × 16.8 mm.
Product information | |
|---|---|
| Product type | Smart Relay Switch Module |
| Brand | SONOFF |
| Model | MINIR4M |
| Quantity | 2 pcs. |
| Color | White |
Technical specifications | |
| Rated voltage | 100-240V AC, 50/60Hz |
| Maximum load | 10 A |
| Maximum power | 2,400 W at 240 V |
| Wireless communication standard | Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz |
| Microcontroller | ESP32-C3FN4 |
| Dimensions of one module | 39.5 × 33 × 16.8mm |
| Weight of one module | 26.7 grams |
| Housing material | Flame retardant PC V0 material |
Features and compatibility | |
| Smart home standard | Matter |
| Compatible platforms | Apple Home, Google Home, Amazon Alexa and eWeLink |
| Control functions | Remote control, voice control, schedules, timers and smart scenes |
| Local action | Supports local Matter connection on home network |
| Compatible switches | Bell switches, conventional light switches, SPDT switches, exit buttons and potential-free contact sensors |
| Relay function | Separate relay control, allowing you to distinguish the external switch status from the relay status |
| Power-on function | Delayed start after power restoration |
| Relay life | Up to 100,000 switching cycles |
Terms of Use | |
| Operating temperature | -10°C-40°C |
| Operating humidity | 5-95% relative humidity, non-condensing |
Complete set | |
| Package contents | 2 × SONOFF MINIR4M smart relay switches and user manual |
Safety warning | |
| Electrical safety | For fixed electrical installations only. Installation and connection involve hazardous mains voltages and should be carried out by a qualified electrician after disconnecting the power supply. Use only within the specified voltage and load limits and install the module in a suitable wall box or electrical installation housing. Do not use the product for any purpose other than controlling compatible electrical loads. |
| Height | 50mm |
| Length | 150mm |
| Weight | 80 g |
| Width | 120mm |
