Smart Relay Switch - SONOFF MINI-ZB1GSP 16 A Zigbee White / Green
Product reference: 14-6979033600515

SONOFF MINI-ZB1GSP - white and green Zigbee 3.0 relay switch for remote control of 100-240 V devices with current up to 16 A. It supports bidirectional energy consumption monitoring, overload protection and Zigbee router function, and the compact housing measures just 39.5 × 33 × 16.8 mm.

Smart Relay Switch - SONOFF MINI-ZB1GSP 16 A Zigbee White / Green

Product reference: 14-6979033600515

SONOFF MINI-ZB1GSP - white and green Zigbee 3.0 relay switch for remote control of 100-240 V devices with current up to 16 A. It supports bidirectional energy consumption monitoring, overload protection and Zigbee router function, and the compact housing measures just 39.5 × 33 × 16.8 mm.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
37,15 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

SONOFF MINI-ZB1GSP 16 A Zigbee white / green


SONOFF MINI-ZB1GSP - white and green Zigbee 3.0 relay switch for remote control of 100-240 V devices with a current of up to 16 A. It supports bidirectional energy monitoring, overload protection and Zigbee router function. The dimensions of the compact housing are 39.5 × 33 × 16.8 mm.


  • Compact Zigbee 3.0 smart switch for remote control of up to 16 A lighting, household appliances, electrical sockets and electric heating.
  • Integrated bidirectional energy monitoring records electricity consumption and solar energy production in real time.
  • Overload, overcurrent, overvoltage, and undervoltage protection are supported, as well as configurable automatic shutdown.
  • Works as a Zigbee router, therefore extending network coverage and integrating into smart home automation.

Product information

Product type Smart relay switch
Brand SONOFF
Model MINI-ZB1GSP
Series MINI Extreme Series Gen5
Color White/green
Housing material PC plastic

Technical specifications

Nominal voltage 100-240V AC, 50/60Hz
Maximum power 3,680W
Communication standard Zigbee 3.0, IEEE 802.15.4
Energy measurement Bidirectional
Zigbee router function Yes
Security features Overload, overcurrent, overvoltage and undervoltage protection with configurable automatic shutdown
Supported conductor cross-section 0.75-2.5 mm² copper wire

Physical specifications

Dimensions 39.5 × 33 × 16.8mm
Net weight 27.3 grams
Operating temperature −10-40 °C
Operating humidity 10-90% relative humidity, non-condensing

Complete set

Contents

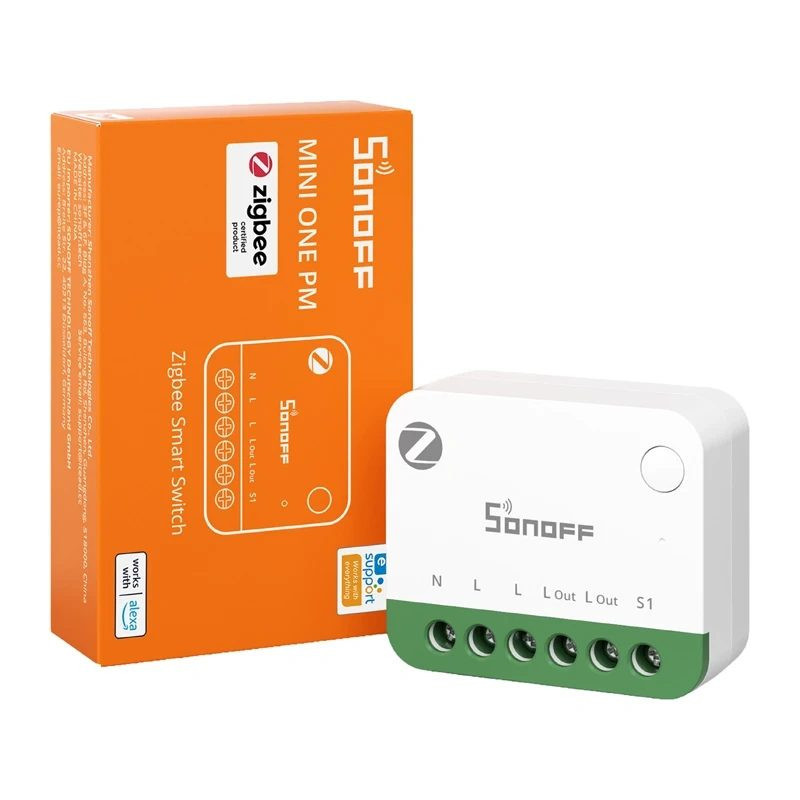

  • SONOFF MINI-ZB1GSP smart relay switch
  • User manual

Safety warning

Warning For indoor use and installation in a fixed electrical installation only. Installation and maintenance work must be carried out by a qualified electrician, with the power supply disconnected. Do not exceed the rated voltage and maximum load. Use only with compatible cables and for the intended purpose.

Height50mm
Length150mm
Weight50 g
Width100mm
