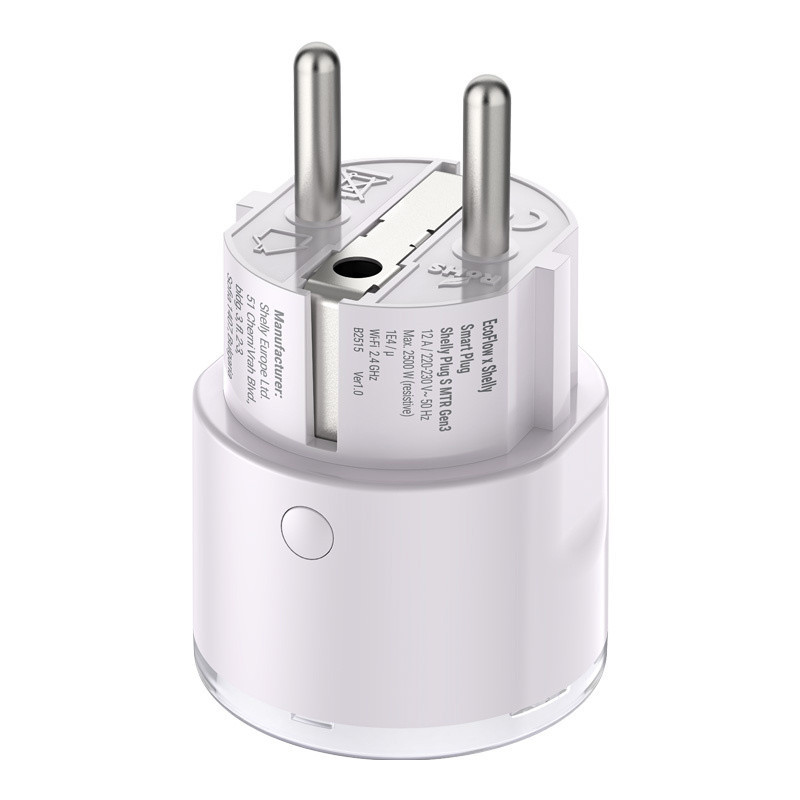

Smart plug for remotely turning on and off compatible devices and monitoring voltage, current, power and energy consumption using the " EcoFlow " app. Supports 220-230 V AC voltage, up to 12 A load, 2.4 GHz Wi-Fi and Bluetooth 4.2, compatible with E/F type sockets.
Smart plug for remotely turning on and off compatible devices and monitoring voltage, current, power and energy consumption using the " EcoFlow " app. Supports 220-230 V AC voltage, up to 12 A load, 2.4 GHz Wi-Fi and Bluetooth 4.2, compatible with E/F type sockets.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Smart plug for remotely turning on and off compatible devices and monitoring voltage, current, power and energy consumption using the " EcoFlow " app. Supports 220-230 V AC voltage, up to 12 A load, 2.4 GHz Wi-Fi and Bluetooth 4.2, compatible with E/F sockets.
Product information | |
|---|---|
| Product type | Smart plug |
| Brand | EcoFlow x Shelly |
| Model | EF-OS-SM002-SMP2SHEL |
| System compatibility | " EcoFlow STREAM" and "PowerStream" systems |
| Housing material | Plastic |
| Dimensions (H × W × D) | 44 × 44 × 70mm |
| Weight | 60 g |
Electrical specifications | |
| Power source | 220-230V AC, 50/60Hz |
| Energy consumption | <1W |
| Maximum switching voltage | 230V AC |
| Switch type | Monopoly |
| Contact configuration | SPNO, single normally open contact |
| Disconnection type | Microbreak |
| Mechanical resistance | 10,000 cycles |
| Surge protection category | II |
| Operating mode | S1 |
Connection | |
| Wi-Fi standard | 802.11 b/g/n, 2.4 GHz |
| Wi-Fi frequency range | 2400-2473 MHz |
| Wi-Fi transmission power | <10 dBm |
| Wi-Fi range | Up to 50 m outdoors and up to 30 m indoors, depending on conditions |
| Bluetooth version | Bluetooth 4.2 |
| Bluetooth frequency range | 2400-2483.5 MHz |
| Bluetooth transmission power | <4 dBm |
| Bluetooth range | Up to 30 m outdoors and up to 10 m indoors, depending on conditions |
Compatibility and tracking | |
| Compatible socket standards | CEE 7/1, CEE 7/3 (type F / "Schuko") and CEE 7/5 (type E) |
| Compatible plug standards | CEE 7/2, CEE 7/4 (Type F / "Schuko"), CEE 7/7, CEE 7/16 (Type C) and CEE 7/17 |
| Internal temperature sensor | Yes |
| AC voltage measurement | Yes |
| Alternating current measurement | Yes |
| Power and energy measurement | Yes |
| Load indicator | Colorful LED ring |
| Control method | " EcoFlow " app via Wi-Fi or Bluetooth |
Environmental conditions | |
| Operating temperature | −20°C-40°C |
| Operating humidity | 30-70% relative humidity |
| Maximum operating height | 2000 |
| Protection class | IP20 |
| Hot wire test temperature | 750°C |
| Forced cooling | Unnecessary |
Safety | |
| Security features | Integrated overload protection |
| Safety warning | For indoor use only with compatible 220-230 V AC appliances. Do not exceed the specified load. Protect from water and moisture, do not use a damaged product and ensure that the plug is properly inserted into the socket before use. |
| Height | 100mm |
| Length | 120mm |
| Weight | 90 g |
| Width | 80mm |
