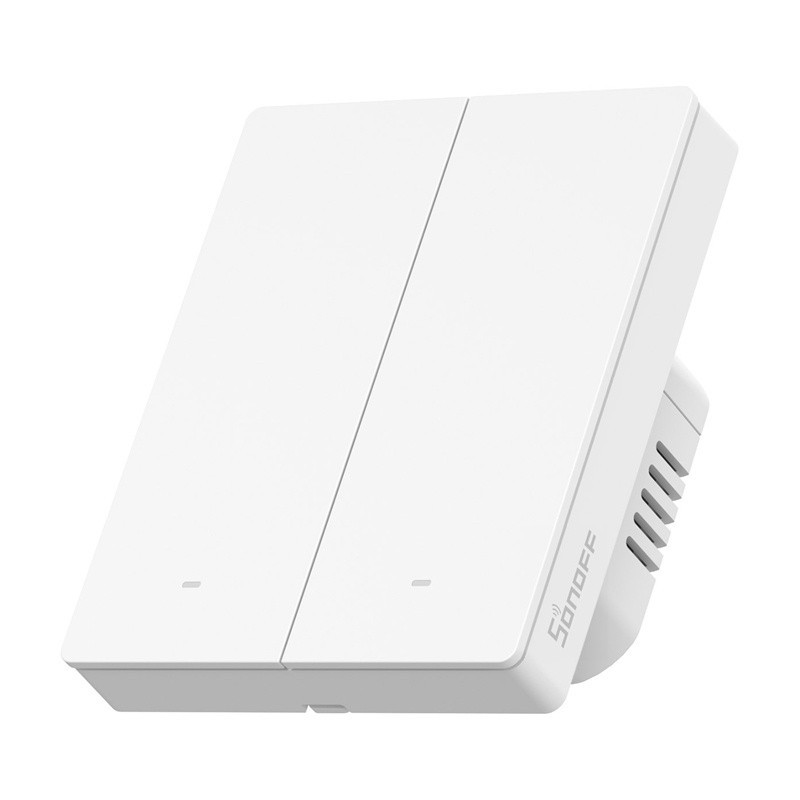

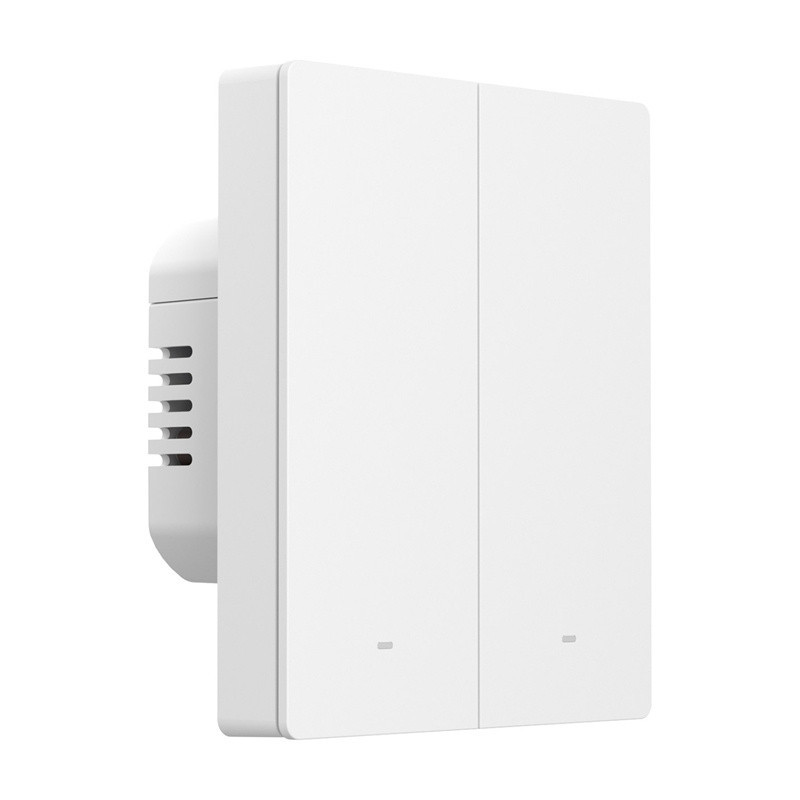

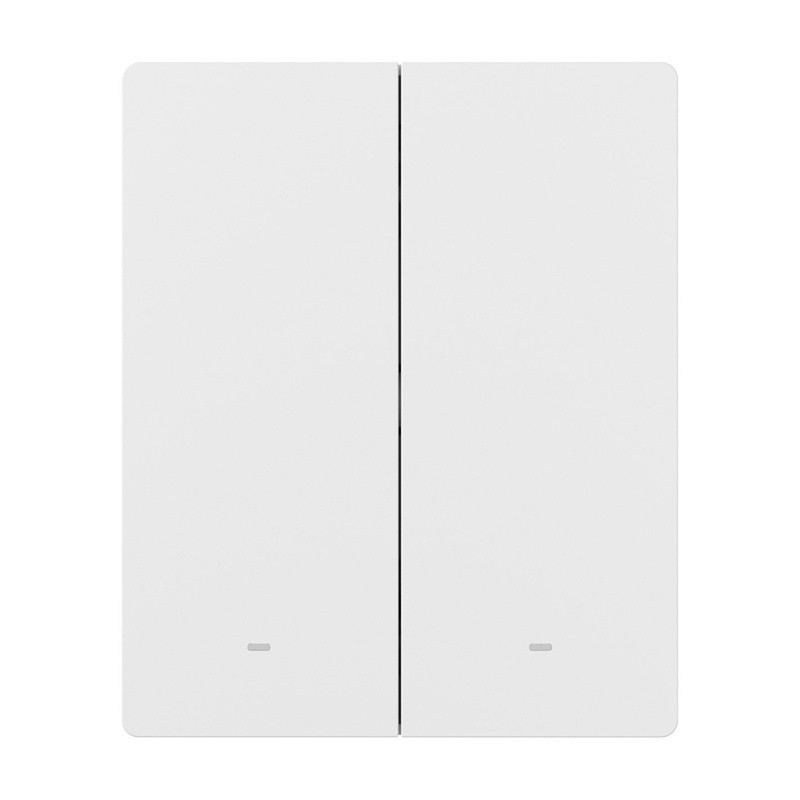

Smart light switch - Sonoff ZBM5-2C-80W White
Product reference:
14-6920075743043
Sonoff ZBM5-2C-80W - white two-channel "Zigbee 3.0" wall touch switch for lighting control with or without a neutral wire. It supports app and voice control, schedules, automation, and smart light bulb control; rated voltage - 100-240 V, and the load of each channel - up to 10 A.
Smart light switch - Sonoff ZBM5-2C-80W White
Product reference:
14-6920075743043
Sonoff ZBM5-2C-80W - white two-channel "Zigbee 3.0" wall touch switch for lighting control with or without a neutral wire. It supports app and voice control, schedules, automation, and smart light bulb control; rated voltage - 100-240 V, and the load of each channel - up to 10 A.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Sonoff ZBM5-2C-80W White
Sonoff ZBM5-2C-80W - white two-channel "Zigbee 3.0" touch wall switch for lighting control both with and without a neutral wire. It supports app control, voice control, scheduling and automation, as well as smart light bulb control. Voltage - 100-240 V, maximum current of each channel - 10 A.
- Two-channel Zigbee 3.0 touch wall switch for smart lighting control
- Works with or without a neutral wire, making it suitable for a variety of home electrical installations
- Remote and voice control via compatible Zigbee hubs, eWeLink, Alexa and Google Home
- Supports schedules, scenes, automation, Zigbee2MQTT, ZHA, and relay disconnect mode for smart bulbs
Product information | |
|---|---|
| Product type | Two-channel smart touch wall switch |
| Brand | Sonoff |
| Model | ZBM5-2C-80W |
| Color | White |
| Number of channels | 2 |
Technical specifications | |
| Wireless connection | Zigbee 3.0 |
| Rated voltage | 100-240V AC, 50/60Hz |
| Rated current | 10 A per channel; maximum total resistive load - 10 A |
| LED load | 400 W per channel at 240 V; 200 W per channel at 100 V; maximum total load - 400 W at 240 V or 200 W at 100 V |
| Minimum load | 3 W when installed without neutral wire |
| Operating temperature | −10°C-40°C |
| Housing material | Polycarbonate (PC) and cold rolled steel (CRS) |
| Dimensions | 86 × 71 × 40.3mm |
Compatibility and features | |
| Installation | Suitable for installation with or without neutral wire |
| Integration with smart home systems | Compatible with eWeLink via compatible " Sonoff Zigbee hub", including "iHost", "NSPanel Pro", "ZBBridge-U", "ZBBridge-P" and "ZBDongle-E/-P" |
| Open source platform support | Zigbee2MQTT and ZHA |
| Smart features | Schedules, scenes, automation, remote control and voice control with compatible Alexa and Google Home systems |
| Relay disconnection mode | Allows compatible smart lights to stay on when wall switch control is off |
The set includes: | |
| Contents |
|
Safety information | |
| Safety warning | This product is intended for use with compatible lighting circuits only. Installation involves hazardous mains voltage and must be carried out by a qualified electrician with the power supply switched off. Do not exceed the specified voltage, current and load ratings. Ensure that the switch is properly installed in a suitable wall box and protected from moisture. Follow the installation instructions before use. |
| Height | 60mm |
| Length | 150mm |
| Weight | 220 g |
| Width | 100mm |
