Three-channel smart ZigBee switch module for remote control of lighting without zero wiring via TUYA, Smart Life app or compatible voice assistants. The white " Avatto LZWSM16-W3" supports 200-240 V AC voltage, 3 × 10-100 W load and works with a separately purchased ZigBee gateway.
Three-channel smart ZigBee switch module for remote control of lighting without zero wiring via TUYA, Smart Life app or compatible voice assistants. The white " Avatto LZWSM16-W3" supports 200-240 V AC voltage, 3 × 10-100 W load and works with a separately purchased ZigBee gateway.




Three-channel smart ZigBee switch module for remote control of lighting without zero wiring via TUYA, Smart Life app or compatible voice assistants. The white " Avatto LZWSM16-W3" supports 200-240 V AC voltage, 3 × 10-100 W load and works with a separately purchased ZigBee gateway.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

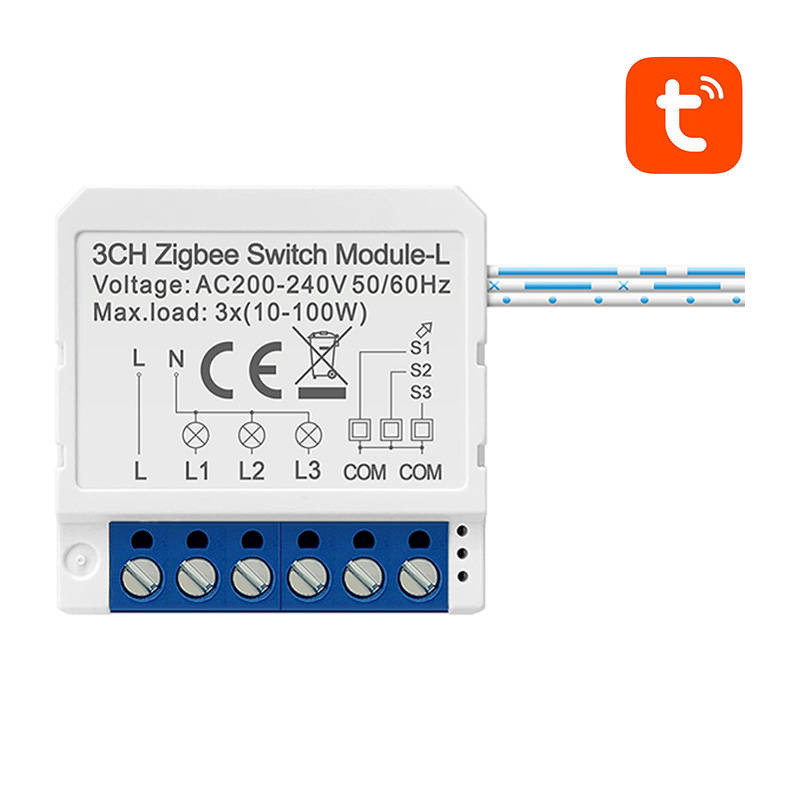

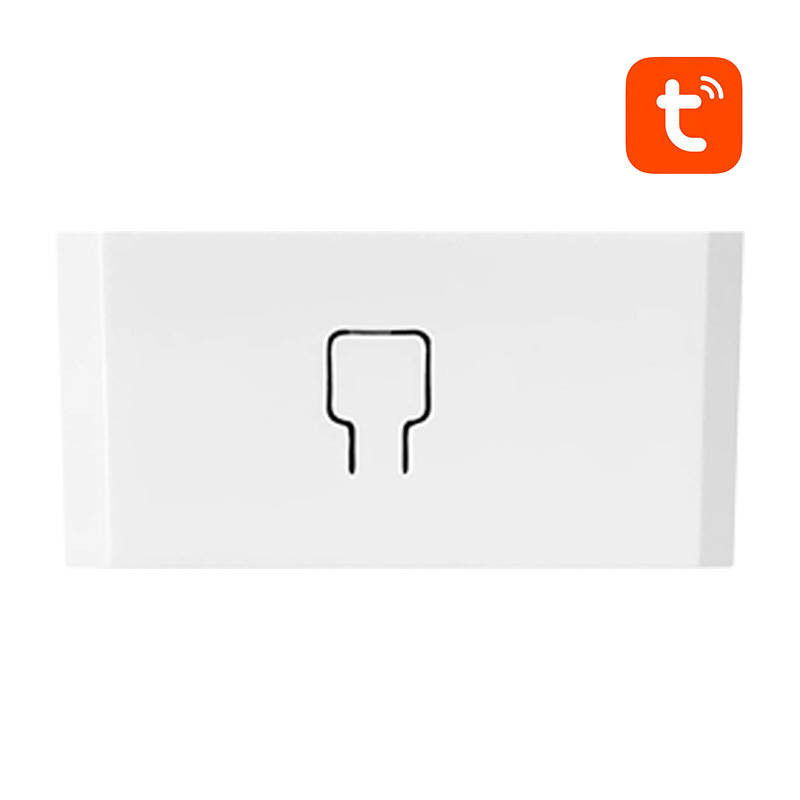

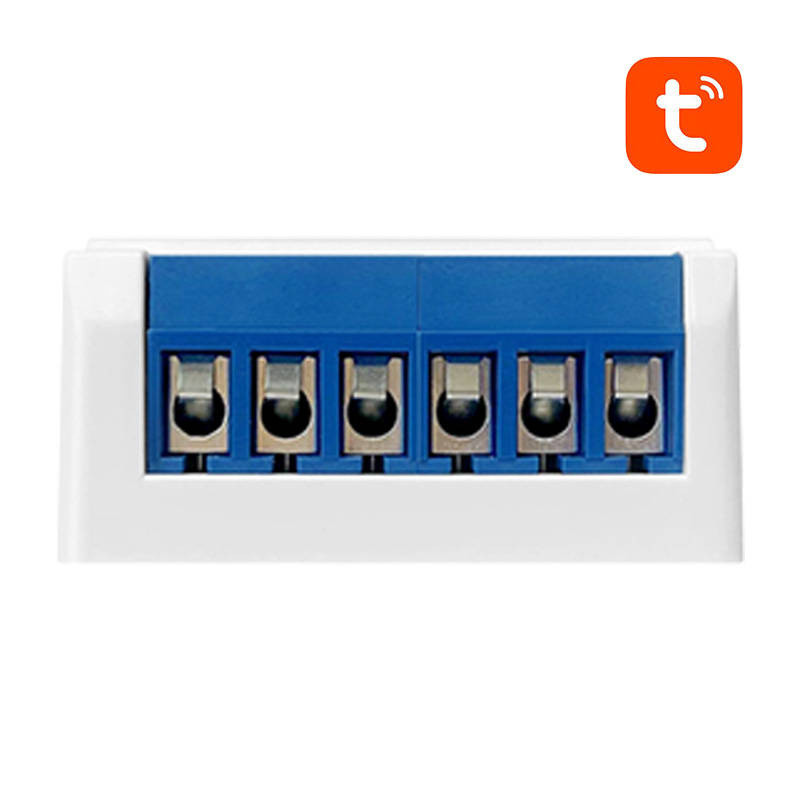

Three-channel ZigBee smart switch module for remote control of lights without a neutral wire using the TUYA / Smart Life app or compatible voice assistants. White " Avatto LZWSM16-W3" supports 200-240 V AC voltage, 3 × 10-100 W load, requires a separately sold ZigBee gateway.
Product information | |
|---|---|
| Product type | 3-channel ZigBee smart light switch module |
| Brand | Avatto |
| Model | LZWSM16-W3 |
| Color | White |
| Number of channels | 3 |
Technical specifications | |
| Rated voltage | AC 200-240V, 50/60Hz |
| Load | 10-100 W per channel |
| Communication protocol | ZigBee 3.0 |
| Operating frequency | 2.405-2.480 GHz, IEEE 802.15.4 |
| Wireless range | Up to 100 m |
| Operating temperature | −10°C-40°C |
| Dimensions | 39 × 39 × 19 mm |
| Protection class | IP20 |
Compatibility and installation | |
| Smart home app | TUYA / Smart Life |
| Compatibility with voice assistants | Amazon Alexa and Google Assistant |
| Neutral wire | Unnecessary |
| Gateway requirement | ZigBee gateway required; sold separately |
| Installation | Designed for installation in mounting boxes or mounting on a luminaire |
Safety warning | |
| Warning | For indoor use only and with compatible lighting loads. The module operates on mains voltage and must be installed and serviced by a qualified electrician after disconnecting the power supply. Do not exceed the specified voltage or load. Do not use the IP20 rated device in damp or wet locations. |
| Height | 60mm |
| Length | 100mm |
| Weight | 150 g |
| Width | 100mm |
