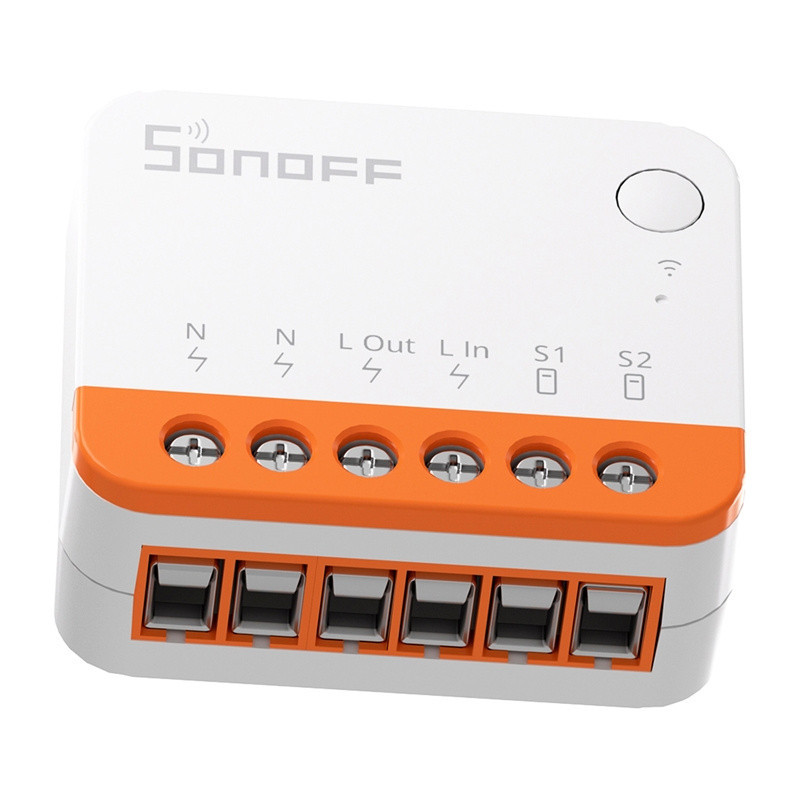

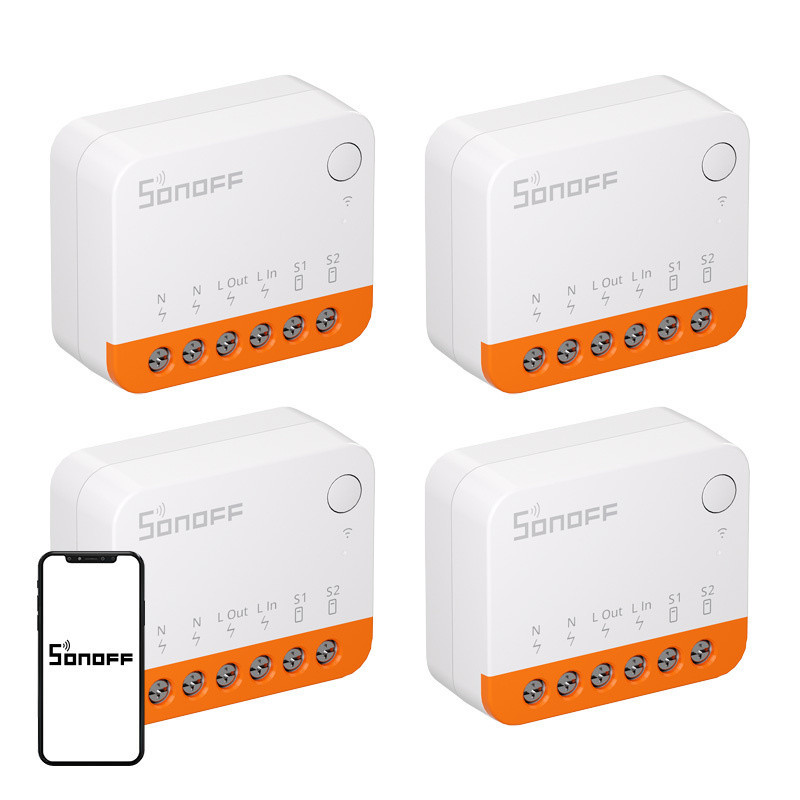

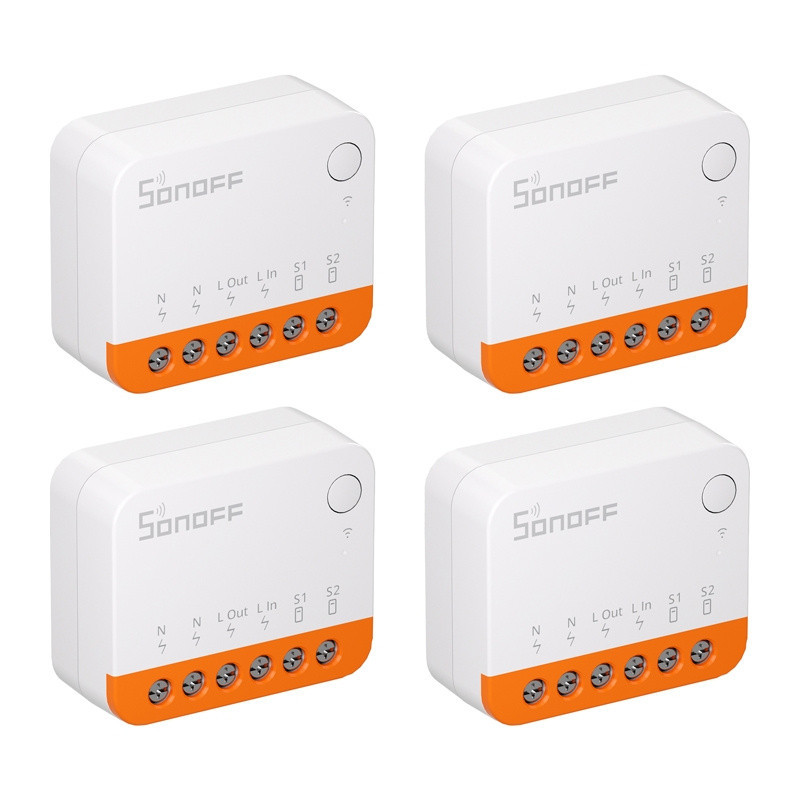

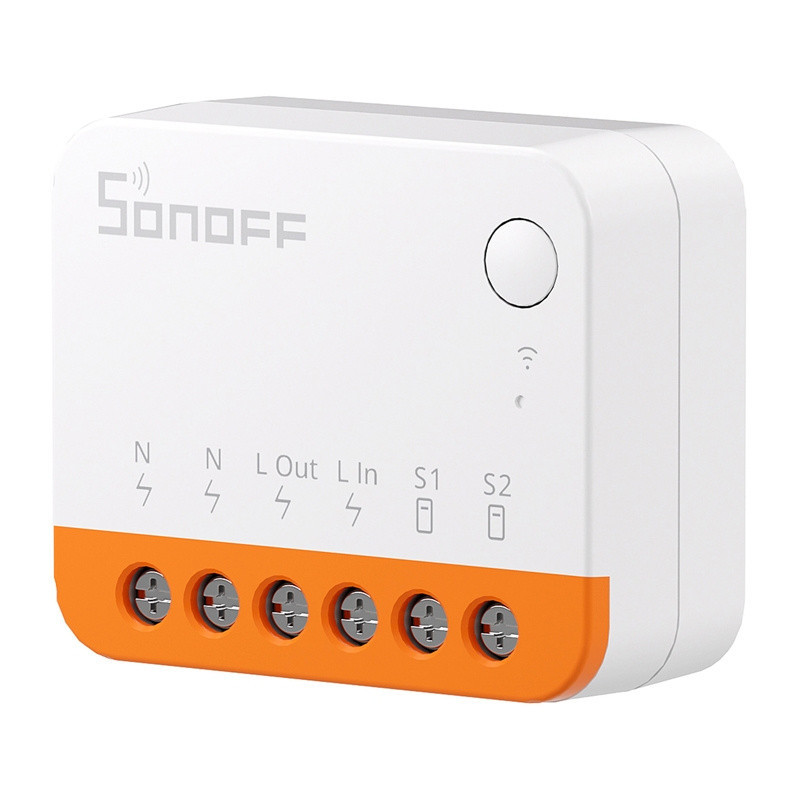

SONOFF MINIR4 4-pack includes four compact Wi-Fi relay modules for remote control of lighting and electrical appliances up to 10 A and 100-240 V. Each module supports 2.4 GHz Wi-Fi, schedules, timers, voice control via Alexa and Google Home, and its dimensions are 39.5 × 33 × 16.8 mm.
SONOFF MINIR4 4-pack includes four compact Wi-Fi relay modules for remote control of lighting and electrical appliances up to 10 A and 100-240 V. Each module supports 2.4 GHz Wi-Fi, schedules, timers, voice control via Alexa and Google Home, and its dimensions are 39.5 × 33 × 16.8 mm.





SONOFF MINIR4 4-pack includes four compact Wi-Fi relay modules for remote control of lighting and electrical appliances up to 10 A and 100-240 V. Each module supports 2.4 GHz Wi-Fi, schedules, timers, voice control via Alexa and Google Home, and its dimensions are 39.5 × 33 × 16.8 mm.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
SONOFF The MINIR4 4-Pack kit includes four compact Wi-Fi relay modules for remote control of up to 10 A, 100-240 V lighting and electrical appliances. Each module supports 2.4 GHz Wi-Fi, schedules, timers, voice control using Alexa and Google Home. The module dimensions are 39.5 × 33 × 16.8 mm.
Product information | |
|---|---|
| Product type | Smart Home Wi-Fi Relay Switch Module |
| Brand | SONOFF |
| Model | MINIR4 |
| Quantity in set | 4 switch modules |
Electrical characteristics | |
| Input voltage | 100-240V AC, 50/60Hz |
| Output voltage | 100-240V AC, 50/60Hz |
| Maximum current | 10 A |
| Maximum power | 2,400W |
| Wireless connection | IEEE 802.11 b/g/n, 2.4 GHz Wi-Fi |
| Wireless controller | Dual-core ESP32 |
Features and compatibility | |
| Management options | "eWeLink" app, compatible regular switches, buttons, sensors, SONOFF R5 and S-MATE remote controls |
| Voice control | Amazon Alexa and Google Home |
| Automation | Schedules, countdowns, recurring timers, and smart scenes |
| Operating modes | Detach Relay mode and delayed start upon power recovery |
| Integrations | Home Assistant, eWeLink Web and IFTTT with the eWeLink Advanced plan |
Construction and conditions of use | |
| Housing material | Fireproof PC V0 plastic |
| Relay life span | Up to 100,000 switching cycles |
| Operating temperature | −10°C-40°C |
| Operating humidity | 5-95% relative humidity, non-condensing |
| Dimensions of one module | 39.5 × 33 × 16.8mm |
Complete set | |
| Attached | 4 × SONOFF MINIR4 switch modules and user manual |
Safety warning | |
| Electrical safety | For fixed electrical installations only. Installation and connection work must be carried out by a qualified specialist, with the power supply disconnected. Use only with compatible 100-240 V AC circuits and loads not exceeding 10 A or 2,400 W. Do not use the module if it is damaged, wet or not properly covered. |
| Height | 60mm |
| Length | 180mm |
| Weight | 300g |
| Width | 120mm |
