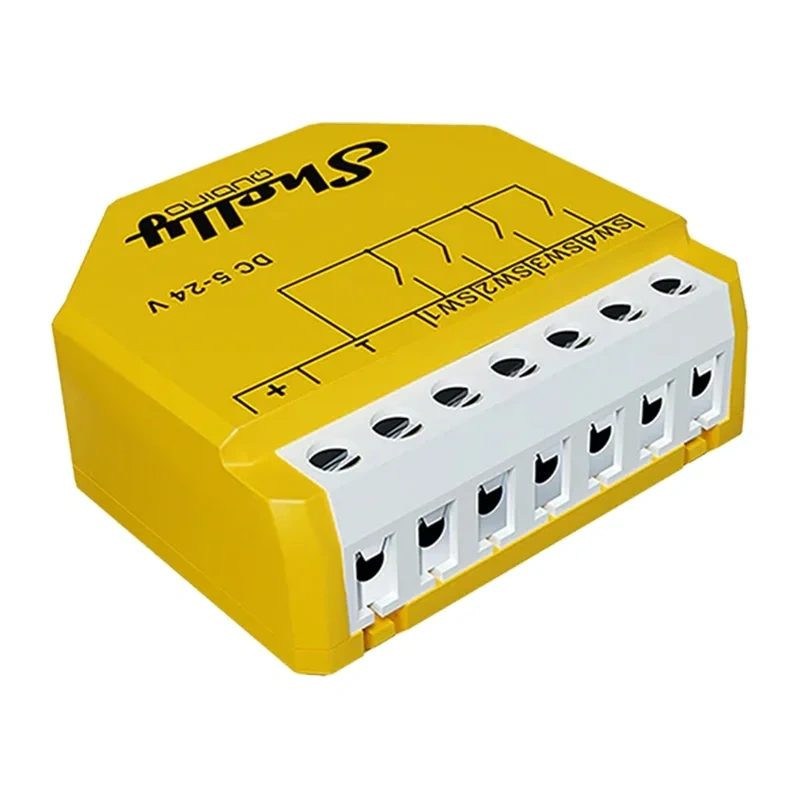

Shelly Wave i4 DC switch, yellow


Z-Wave input module with four inputs for triggering scenarios and automations via connected smart home devices. Supports 5-24 V DC power supply, Z-Wave Plus and Long Range communication. Dimensions - 37 × 42 × 16 mm.


  • Four-input Z-Wave controller for triggering scenarios, automations, and synchronized actions using regular wall switches.
  • Supports up to 16 multi-click actions, allowing flexible control of compatible Z-Wave devices.
  • Z-Wave Long Range, 800 Series Z-Wave technology, SmartStart, S2 security, and OTA updates.
  • Compact yellow module for flush-mounting. Powered by 5-24 V DC, consumes less than 0.3 W.

Product information

Product type Z-Wave input module for smart home switches
Brand Shelly
Model Wave i4
Function Reads signals from regular wall switches and triggers scenarios, automations, and synchronized actions on compatible Z-Wave devices
Relay Not included; input module only
Color Yellow
Weight 17 grams

Technical specifications

Power supply 5-24V DC
Inputs 4
Multi-click actions Up to 16
Wireless technology Z-Wave Plus and Z-Wave Long Range
Z-Wave platform 800 series Z-Wave chip
Long range frequency 864MHz
Mixed network frequency 868.4MHz
Mixed network operating range Up to 40 m indoors
Long-range network Up to 80 m indoors or up to 1,000 m outdoors, depending on conditions and compatible equipment
Maximum transmission power < 25mW
Energy consumption < 0.3W
Safety "Z-Wave Security 2" (S2) with AES-128 encryption
Setup and updates SmartStart and over-the-air (OTA) firmware updates

Construction and installation

Dimensions 37 × 42 × 16 mm
Housing material Plastic
Installation In a flush-mounted box, behind a regular wall switch
Compatible conductor cross-section 0.5-1.5 mm² (20-16 AWG)
Stripped wire length 5-6mm
Maximum terminal screw torque 0.4 Nm

Terms of Use

Ambient temperature −20-40 °C
Relative humidity 30-70%
Maximum installation height 2,000 m above sea level

Safety warning

Electrical safety Installation and wiring work must be performed by a qualified person with the power disconnected. Use only with a 5-24 V DC power supply and comply with the specified environmental and wiring parameters. The module is designed to read switch inputs and control compatible Z-Wave devices; it does not directly switch electrical loads.
