Smart Home Scenario Controller - MOES ZR-SR-R01-WH ZigBee White
Product reference: 14-6974246477831

MOES ZR-SR-R01-WH - white wireless ZigBee 3.0 scenario switch with four buttons supporting single, double and long press and allowing programming of up to 12 actions. Powered by a CR2032 battery, it works with a compatible MOES or Tuya ZigBee gateway, and its dimensions are 130 × 45 × 15 mm.

Smart Home Scenario Controller - MOES ZR-SR-R01-WH ZigBee White

Product reference: 14-6974246477831

MOES ZR-SR-R01-WH - white wireless ZigBee 3.0 scenario switch with four buttons supporting single, double and long press and allowing programming of up to 12 actions. Powered by a CR2032 battery, it works with a compatible MOES or Tuya ZigBee gateway, and its dimensions are 130 × 45 × 15 mm.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
29,41 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

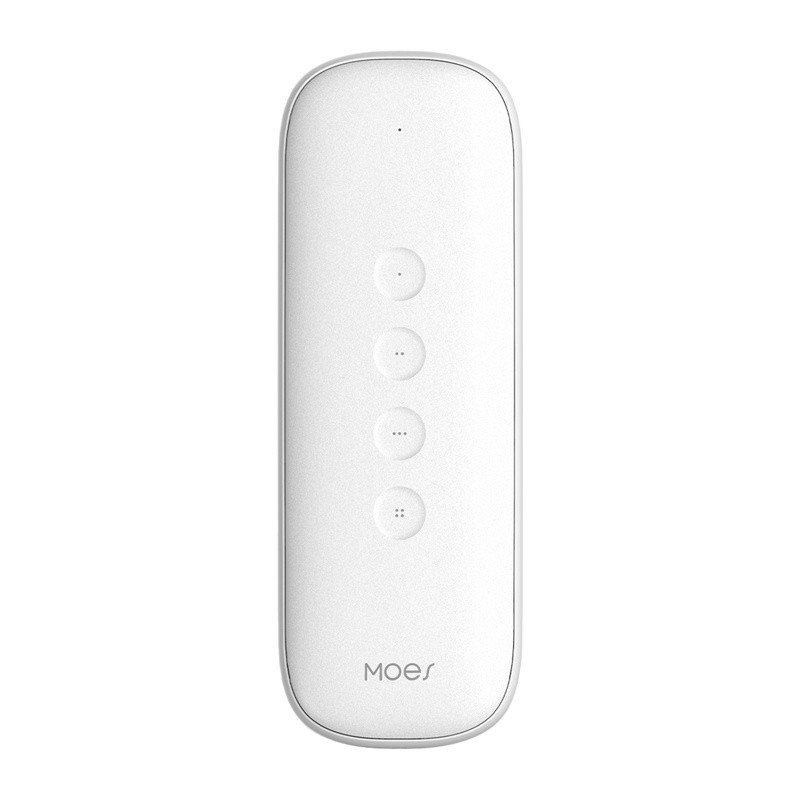

MOES ZR-SR-R01-WH ZigBee scene switch, white


MOES ZR-SR-R01-WH - white wireless ZigBee 3.0 scene switch with four buttons supporting single, double and long press. Up to 12 actions can be programmed. Powered by a CR2032 battery, the switch requires a compatible MOES or Tuya ZigBee gateway. Dimensions - 130 × 45 × 15 mm.


  • Wireless ZigBee 3.0 scene switch for controlling compatible smart home devices using MOES or the "Smart Life" app.
  • Four customizable buttons support single, double, and long presses, allowing you to create up to 12 different scenes or automation actions.
  • The magnetic and portable switch can be flexibly attached to walls, tables or metal surfaces without complicated installation.
  • Powered by a CR2032 battery and compatible with Tuya or MOES ZigBee gateways.

Product information

Product type Smart home ZigBee scene controller
Brand MOES
Model ZR-SR-R01-WH
Color White
Communication protocol ZigBee 3.0
Compatible ecosystems MOES and Tuya Smart Life systems

Technical specifications

Power source CR2032 coin cell battery
Standby current 20 µA
Operating temperature from -10°C to 45°C
Operating humidity less than 90% RH
Frequency range 2.405-2.480 GHz
Maximum transmission power < +20 dBm
Button life span up to 500,000 clicks

Execution and installation

Confirmation Magnetic; suitable for walls, tables and metal surfaces
Protection class IP55

Safety information

Safety warning Use only as a wireless scene controller in a compatible ZigBee smart home system. A compatible MOES or Tuya ZigBee gateway and smart devices are required for the device to function. Keep the CR2032 battery out of the reach of children. If the battery is swallowed, seek medical attention immediately.

Height30 mm
Length160mm
Weight150 g
Width80mm
