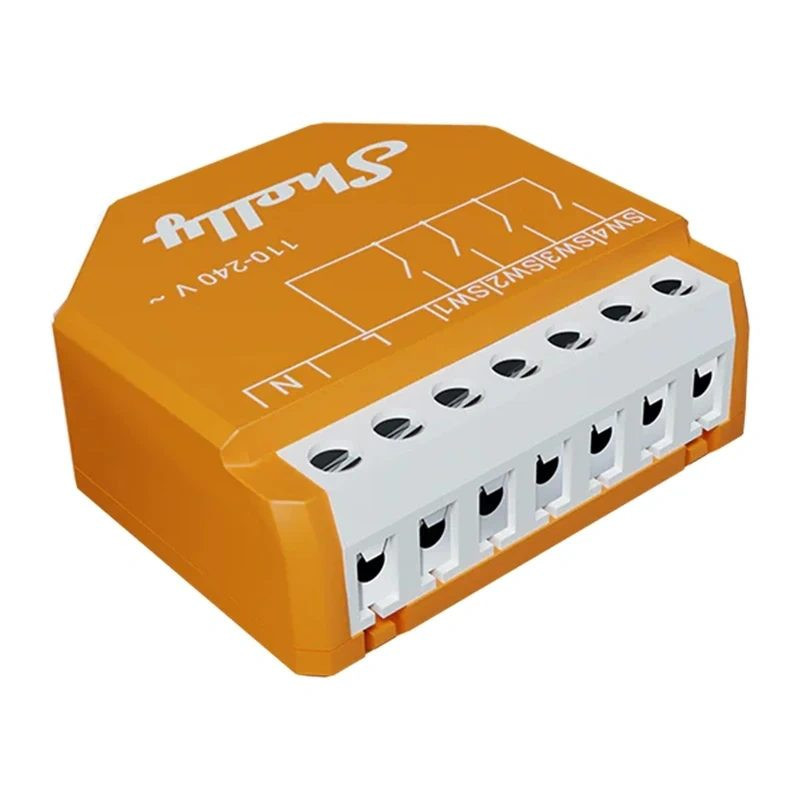

Smart Home Input Module - Shelly Wave i4 LR 4 Input Z-Wave 800 Series Long Range Orange
Product reference: 14-3800238072049

Shelly Wave i4 LR - four-input Z-Wave module that allows you to control smart home devices and scenarios with existing switches or buttons. It supports Z-Wave 800 series, Z-Wave Long Range and multi-click actions; dimensions - 37 × 42 × 16 mm, housing - orange plastic.

Smart Home Input Module - Shelly Wave i4 LR 4 Input Z-Wave 800 Series Long Range Orange

Product reference: 14-3800238072049

Shelly Wave i4 LR - four-input Z-Wave module that allows you to control smart home devices and scenarios with existing switches or buttons. It supports Z-Wave 800 series, Z-Wave Long Range and multi-click actions; dimensions - 37 × 42 × 16 mm, housing - orange plastic.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
55,19 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

Shelly Wave i4 LR


Shelly Wave i4 LR - four-input Z-Wave module for controlling smart home devices and scenarios using existing switches or buttons. It supports Z-Wave 800 Series, Z-Wave Long Range and multi-click actions. Module dimensions - 37 × 42 × 16 mm, housing - orange plastic.


  • Smart Z-Wave input module for controlling connected lights, blinds, sockets and other devices using existing wall switches or buttons.
  • Four inputs support up to 16 actions, including single and multi-click commands for scripts and automation.
  • The Z-Wave 800 Series and Z-Wave Long Range technologies used ensure reliable communication - the operating range in open areas is up to 1,000 m.
  • The compact orange module mounts behind an existing switch and consumes less than 0.2 W. A compatible Z-Wave gateway is required.

Product information

Product type Smart home Z-Wave input module
Brand Shelly
Model Wave i4 LR
Function Reads signals from existing switches or buttons and controls Z-Wave devices, scenarios and automation
Relay No
Number of inputs 4
Supported actions Up to 16 actions, including single and multi-click commands

Connection

Wireless technology Z-Wave 800 Series
Network modes Z-Wave Plus Mesh and Z-Wave Long Range
Z-Wave Long Range frequency 864MHz
Z-Wave Plus frequency 868.4MHz
Operating range Up to 80 m indoors or up to 1,000 m outdoors, depending on local conditions
Network communication range Up to 40 m indoors, depending on local conditions
Repeater function Available in Z-Wave Plus network mode, but not in Long Range mode
Security "Security 2 Authenticated" with AES-128 encryption
SmartStart Supported
Over-the-air updates Supported
Required equipment Compatible Z-Wave gateway; Z-Wave Long Range gateway required for Long Range mode operation

Electrical specifications

Power supply 110-240V AC, 50/60Hz
Energy consumption < 0.2W
Direct current No
Energy measurement No
Overcurrent protection No
Maximum radio transmitter power < 25mW

Construction and installation

Installation Behind the existing switch, in a flush-mounted box
Dimensions 37 × 42 × 16 mm (H × W × D)
Weight 17 grams
Housing material Plastic
Color Orange
Compatible cable cross-section 0.5-1.5 mm² (20-16 AWG)
Stripped wire length 5-6mm
Maximum terminal tightening torque 0.4 Nm

Terms of Use

Operating temperature -20°C to 40°C
Operating humidity 30-70% relative humidity
Maximum operating height 2,000 m

Safety warning

Warning For fixed indoor electrical installation only. Installation and wiring may only be carried out by a qualified electrician after the power supply has been switched off. Do not use the module above the specified voltage, in specified environmental conditions or for purposes other than intended. The device does not contain relays, so it cannot directly switch electrical loads.
