Smart Home Device - Shelly Pro 4PM 4-Channel Relay Device 16A Wi-Fi Energy Metering DIN Rail White
Product reference:
14-3800235268049

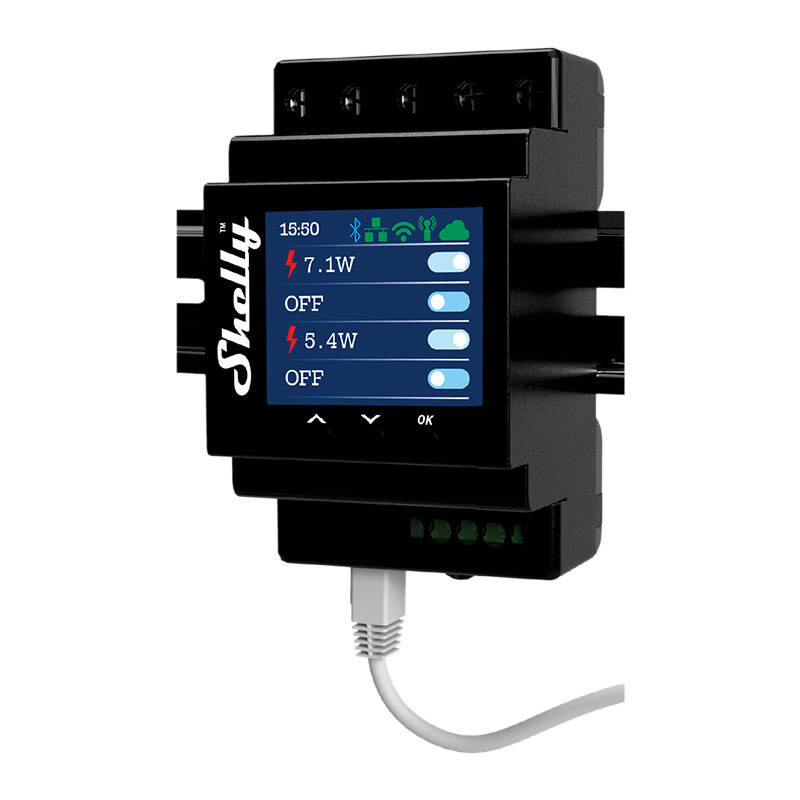

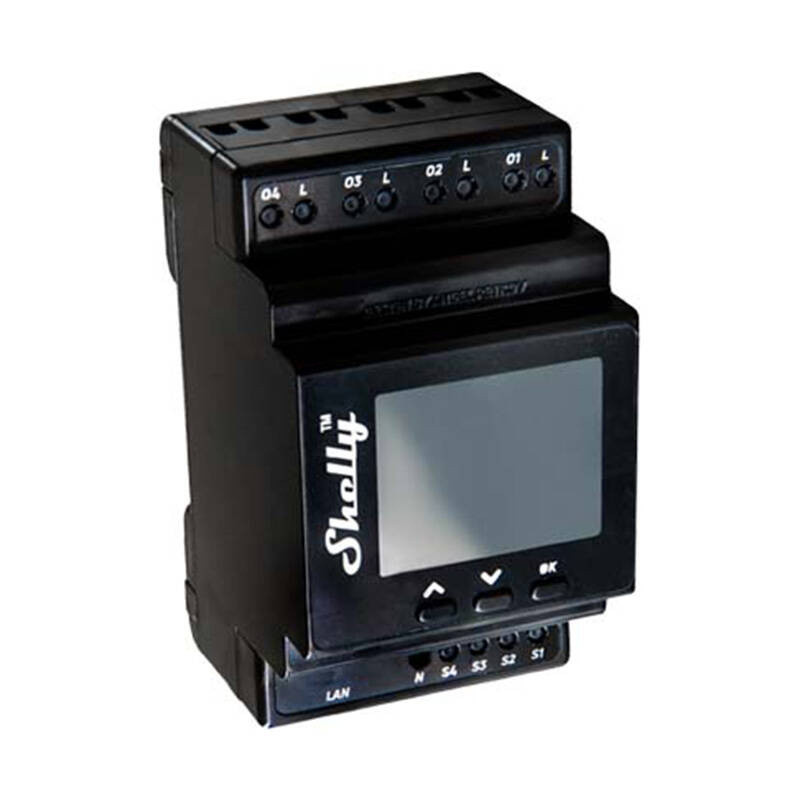

Shelly Pro 4PM is a 4-channel relay for DIN rail mounting, allowing the control of four 230 volt devices with a maximum load of 16 A per channel. It has integrated energy measurement functions, allowing you to monitor energy consumption in real time.
Smart Home Device - Shelly Pro 4PM 4-Channel Relay Device 16A Wi-Fi Energy Metering DIN Rail White
Product reference:
14-3800235268049
Shelly Pro 4PM is a 4-channel relay for DIN rail mounting, allowing the control of four 230 volt devices with a maximum load of 16 A per channel. It has integrated energy measurement functions, allowing you to monitor energy consumption in real time.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Shelly Pro 4PM DIN rail 4-kanalinis relay, Wi-Fi
Shelly Pro 4PM is a 4-kanalinis relay for DIN rail mounting, allowing you to control four 230 volt devices with a maximum load of 16 A per channel. It has an integrated energy measurement function, allowing you to monitor energy consumption in real time.
- Control up to four 230V devices remotely via Wi-Fi, improving automation in your home and business.
- Real-time energy monitoring with integrated energy meters to optimize costs.
- Compact design, easy to mount on standard DIN rails, suitable for various environments.
- Supports both Wi-Fi and Bluetooth connectivity, providing flexible control options.
Features | |
|---|---|
| Product type | 4-kanalinis relay |
| Brand | Shelly |
| Model | SPSW-004PE16EU |
Specifications | |
| AC supply voltage | 110 - 240V |
| Power | < 4W |
| Maximum AC switching voltage | 240V |
| Maximum AC switching current | 16 A per channel, 40 A total |
| Wi-Fi protocol | 802.11 b/g/n |
| Wi-Fi range | Up to 30 m indoors and 50 m outdoors |
| Bluetooth protocol | 4.2 |
| Bluetooth range | Up to 10 m indoors and 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash memory | 8MB |
| Dimensions | 96 x 53 x 59 ±0.5 mm |
| Installation | DIN rail |
| Ambient temperature | -20°C to 40°C |
| Humidity | 30% to 70% RH |
| Maximum height | 2000 |
| Height | 100mm |
| Length | 200mm |
| Weight | 250 g |
| Width | 80mm |
