Smart Home Control Panel - MOES CCP-TY-EU-LN-MS 4" Wi-Fi / Zigbee Control Panel
Product reference: 14-6974246475059

Wall-mounted 4-inch HD touch control panel with integrated Wi-Fi and Zigbee gateway for controlling smart home devices. Supports over 100 Zigbee devices, "Amazon Alexa voice control, and also allows you to view the image of a compatible video doorbell or camera.

  • New
Smart Home Control Panel - MOES CCP-TY-EU-LN-MS 4" Wi-Fi / Zigbee Control Panel
Smart Home Control Panel - MOES CCP-TY-EU-LN-MS 4" Wi-Fi / Zigbee Control Panel
Smart Home Control Panel - MOES CCP-TY-EU-LN-MS 4" Wi-Fi / Zigbee Control Panel
Smart Home Control Panel - MOES CCP-TY-EU-LN-MS 4" Wi-Fi / Zigbee Control Panel

Smart Home Control Panel - MOES CCP-TY-EU-LN-MS 4" Wi-Fi / Zigbee Control Panel

Product reference: 14-6974246475059

Wall-mounted 4-inch HD touch control panel with integrated Wi-Fi and Zigbee gateway for controlling smart home devices. Supports over 100 Zigbee devices, "Amazon Alexa voice control, and also allows you to view the image of a compatible video doorbell or camera.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
140,50 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

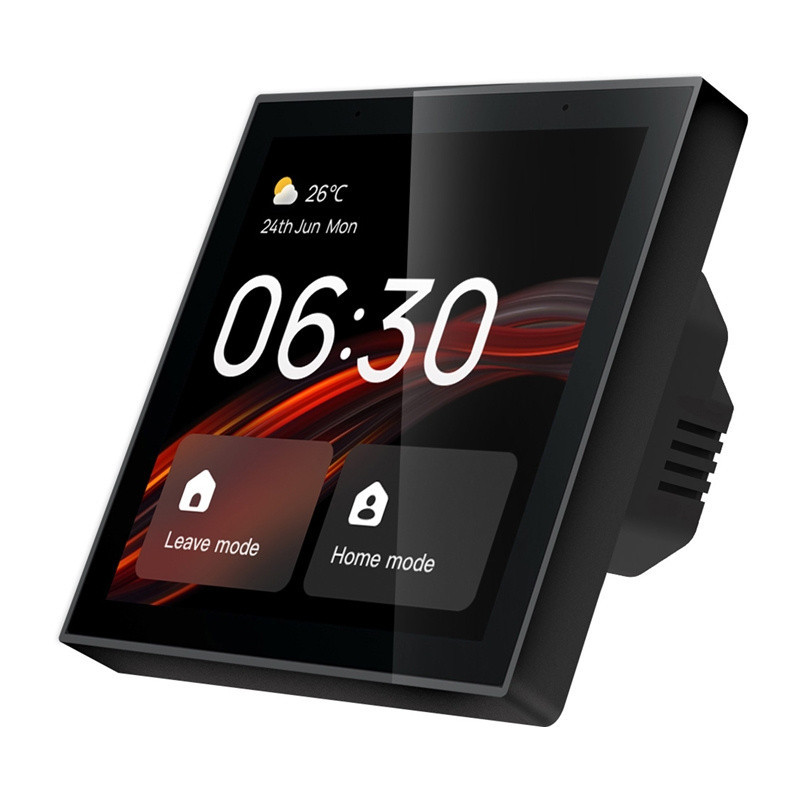

MOES CCP-TY-EU-LN-MS 4 inch Wi-Fi / Zigbee control panel


Wall-mounted 4-inch HD touch control panel with integrated Wi-Fi and Zigbee gateway for controlling smart home devices. Supports over 100 Zigbee devices, "Amazon Alexa voice control, and viewing compatible video doorbells or cameras.


  • 4-inch HD touch control panel for convenient control of lighting, blinds, climate control, curtains and other smart home devices.
  • The integrated Zigbee gateway allows you to connect and control over 100 compatible Zigbee devices without an additional hub.
  • Wi-Fi connectivity, compatibility with the "Tuya" ecosystem, and integrated "Amazon" Alexa ensure convenient control via app or voice.
  • Supports smart video intercom functions and displays useful information such as time, date, temperature, and weather.

Product information

Product type Wall-mounted smart home control panel
Brand MOES
Model CCP-TY-EU-LN-MS
Screen 4 inch HD LCD touch screen
Operating system Linux

Technical specifications

Supply voltage 100-240 V AC, 50/60 Hz
Rated current 74 mA
Wireless connection Wi-Fi, Zigbee and Bluetooth
Wi-Fi frequency 2412-2472 MHz
Maximum Wi-Fi EIRP 20 dBm
Bluetooth frequency 2402-2480MHz
Maximum Bluetooth EIRP 10 dBm
Zigbee frequency 2405-2480MHz
Maximum Zigbee EIRP 10 dBm

Physical and environmental specifications

Dimensions without base 86 × 86 × 10.5mm
Dimensions with base 86 × 86 × 36.2mm
Operating temperature from 0°C to 40°C
Operating humidity 5% to 90% relative humidity, non-condensing

The set includes:

Contents
  • MOES smart home control panel
  • 2 mounting screws
  • User manual

Safety information

Safety warning For indoor use only and in smart home control systems. The panel must be connected to a 100-240 V AC electrical network, and installation work must be carried out by a qualified specialist in accordance with local electrical safety regulations. Disconnect the power supply before installation or maintenance. Do not use the device if it is damaged or has been exposed to water.

Height100mm
Length200mm
Weight300g
Width200mm
