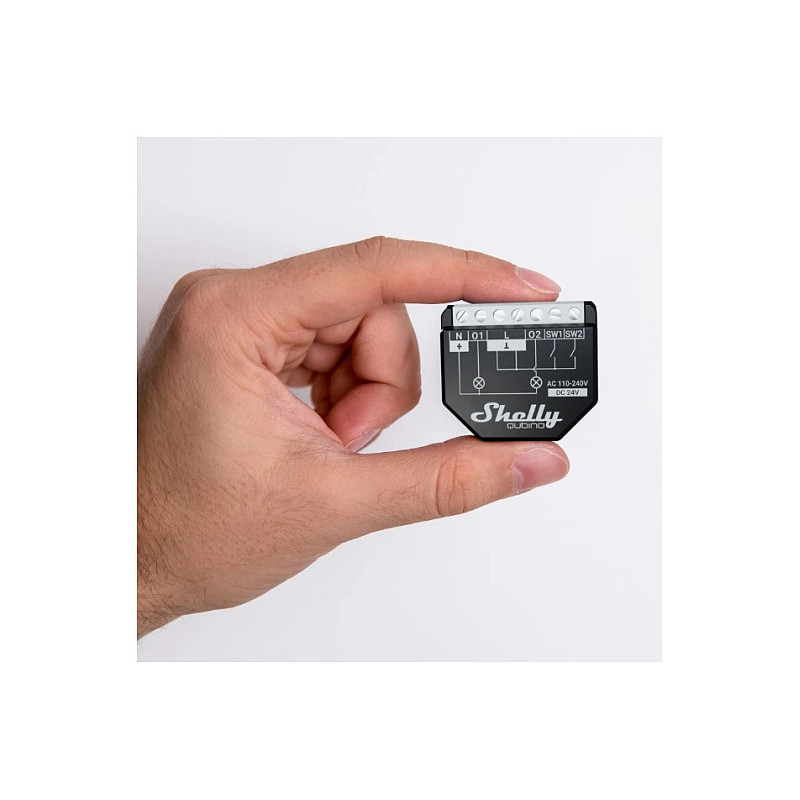

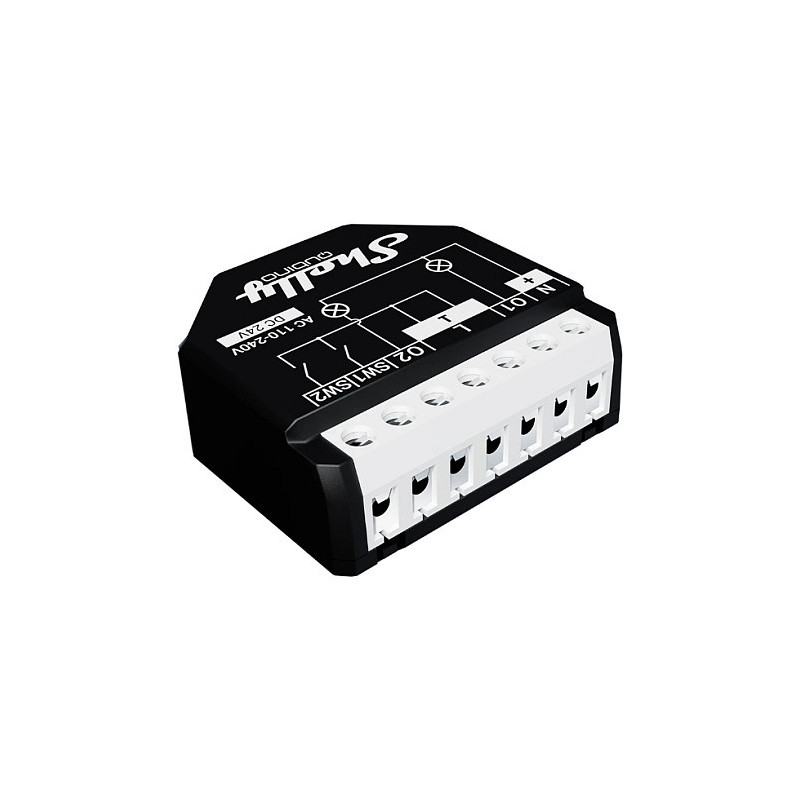

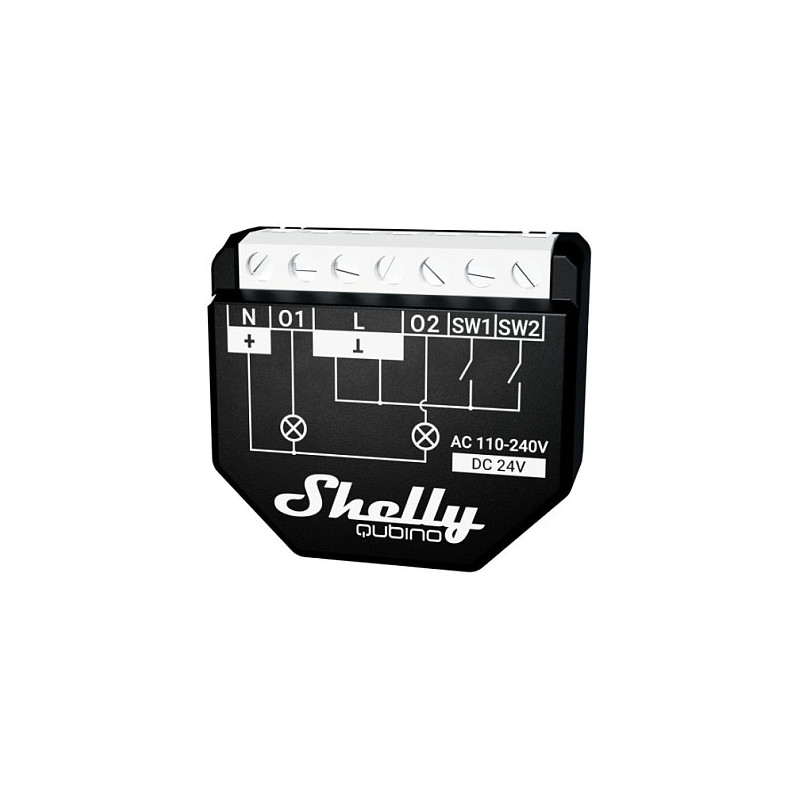

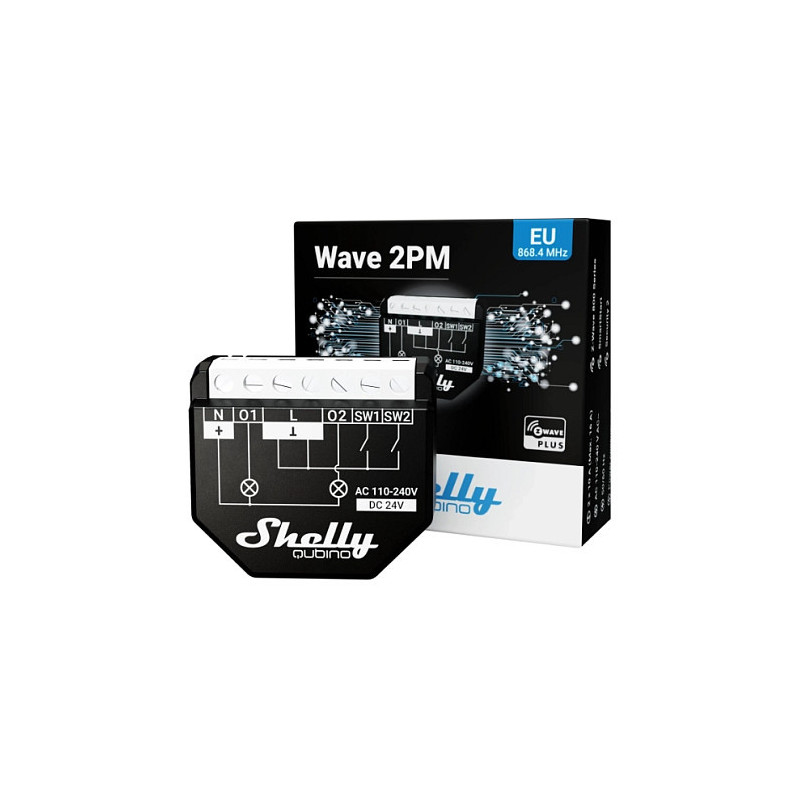

Shelly Qubino WAVE 2PM

Shelly Qubino WAVE 2PM. Type: Smart switch, Connectivity technology: Wireless, Housing material: Plastic. AC input voltage: 110 - 240 V, AC input frequency: 50/60 Hz, Breaking capacity: 16 A. Width: 42 mm, Depth: 16 mm, Height: 37 mm. Quantity per pack: 1 pc(s)

Features

Type: Smart switch
Connectivity technology: Wireless
Housing material: Plastic
Transmit power: 25 dBmW
Supported radio protocols: Z-Wave
Radio frequency: 868.4 MHz
Maximum indoor range: 40 m
Product colour: Black
Wire size range: 0.5 - 1.5 mm²
Feature: Suitable for indoor use
Feature: Remotely operated
Feature: Smartphone/tablet remote support

Power

AC input voltage: 110 - 240 V
AC input frequency: 50/60 Hz
Breaking capacity: 16 A
Power consumption (typical): 0.3 W
Maximum switching voltage (AC): 240 V
Maximum switching voltage (DC): 30 V
Maximum switching current (AC): 10 A
Maximum switching current (DC): 10 A

Weight & dimensions

Width: 42 mm
Depth: 16 mm
Height: 37 mm

Operational conditions

Operating temperature (T-T): -20 - 40 °C
Operating relative humidity (H-H): 30 - 70%

Packaging data

Quantity per pack: 1 pc(s)
