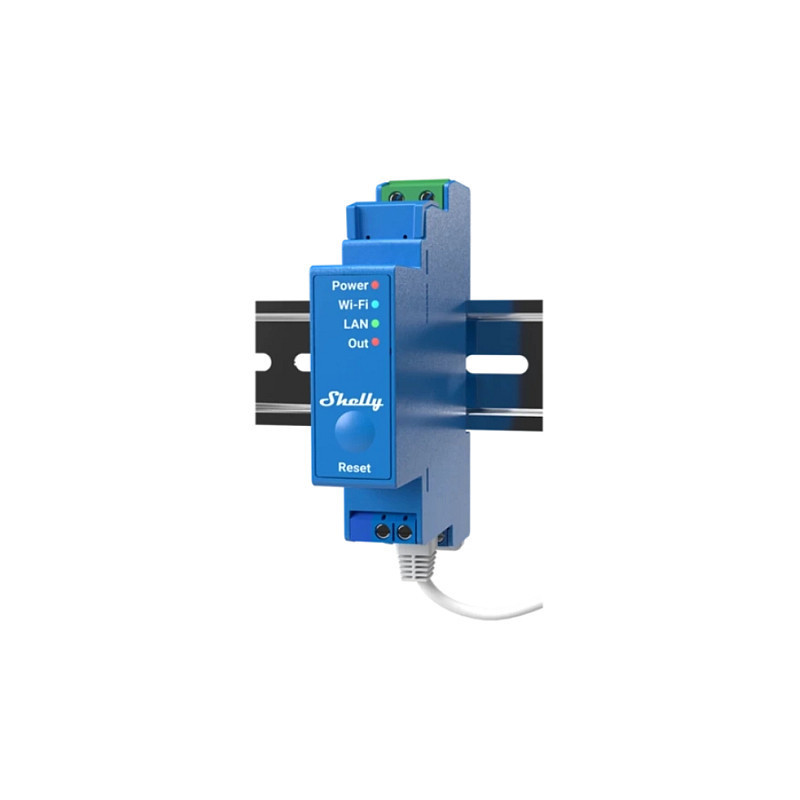

Shelly Pro 1 electrical relay

Shelly Pro 1. Product type: Solid-state relay, Product colour: Blue, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Power consumption (typical): 3 W, Maximum current: 16 A, AC input voltage: 110 - 240 V. Dimensions (WxDxH): 18.5 x 68.5 x 89.5 mm

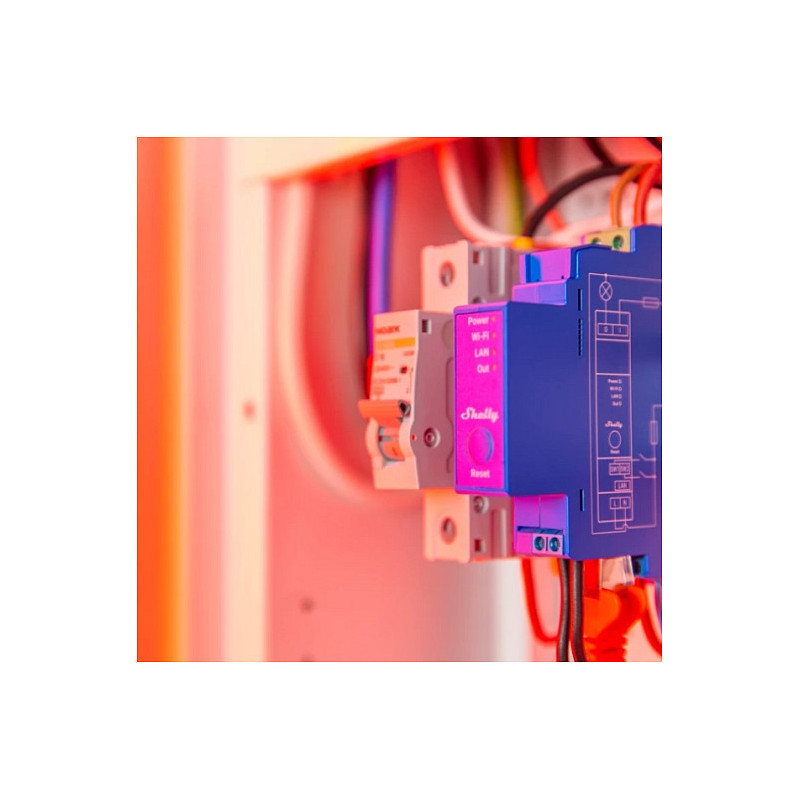

Professional 1 channel relay with Wi-Fi, LAN, and Bluetooth connection, suitable for home and facility automation with remote control. DIN rail mountable insde a breaker box. Enhanced safety features and compatible with most used home automation platforms.

Features

Product type: Solid-state relay
Product colour: Blue
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi frequency: 2.4 GHz
Maximum indoor range: 30 m
Transmitting power: 13.35 dBmW
Channels quantity: 1 channels
Security algorithms: HTTPS
Feature: Weekly schedule
Feature: Sunrise/sunset time
Feature: Intelligent On/Off
Feature: DIN rail mounting
Feature: Remotely operated
Transmission range: 0 - 50 m
LED indicators: LAN, Power, Wi-Fi
Frequency band: 2.412 - 2.483
Ethernet LAN (RJ-45) ports: 1
Feature: Scripts supported
Feature: Webhooks (URL actions)
Feature: Bluetooth
Feature: Overheat protection

Power

Power consumption (typical): 3 W
Maximum current: 16 A
AC input voltage: 110 - 240 V
AC input frequency: 50 - 60 Hz

Weight & dimensions

Dimensions (WxDxH): 18.5 x 68.5 x 89.5 mm

Operational conditions

Operating temperature (T-T): -20 - 40 °C
