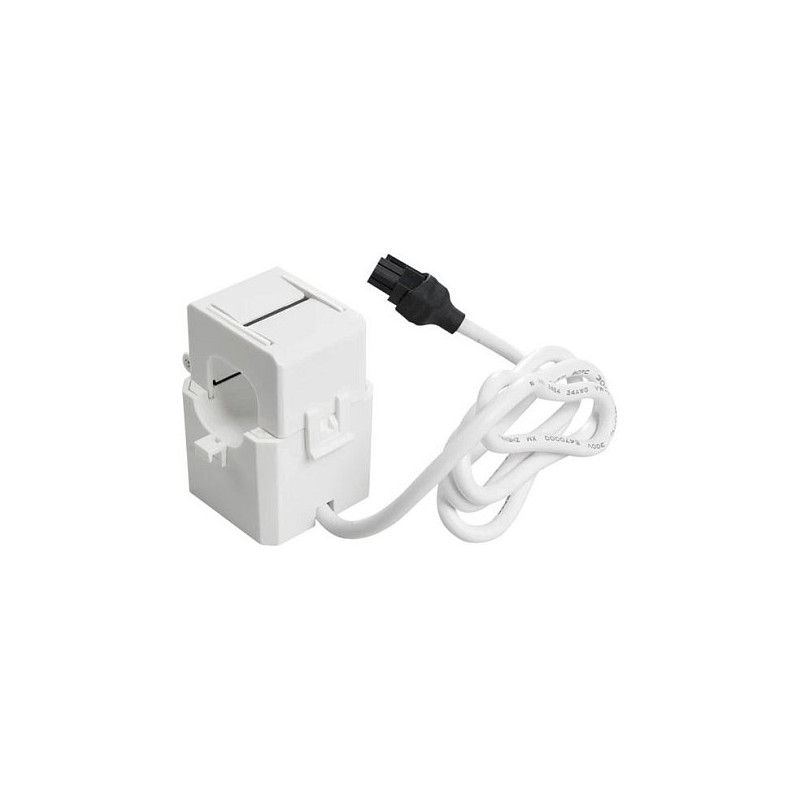

Shelly 096-8354 current transformer
Product reference:
29-3809511202135
Shelly 096-8354, Black, 17 mm, 0.6 m, Shelly, Shelly EM, Shelly 3EM, 120 A
Shelly 096-8354 current transformer
Product reference:
29-3809511202135
Shelly 096-8354, Black, 17 mm, 0.6 m, Shelly, Shelly EM, Shelly 3EM, 120 A
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 10
business days
Shelly 096-8354. Product colour: Black, Conductor diameter: 17 mm, Cable length: 0.6 m. Nominal current output: 120 A, Nominal input voltage: 3000 V. Width: 31 mm, Depth: 30 mm, Height: 45 mm
Features
Product colour: Black
Conductor diameter: 17 mm
Number of positions: 1
Cable length: 0.6 m
Brand compatibility: Shelly
Compatibility: Shelly EM, Shelly 3EM
Power
Nominal current output: 120 A
Nominal input voltage: 3000 V
Weight dimensions
Width: 31 mm
Depth: 30 mm
Height: 45 mm
Technical details
Accuracy: 1%
Core material: Ferrite
Load resistance: 20 Ω
Rated current: 120 A
Rated current: 40 mA
Saturation current: 120 A
Compliance certificates: RoHS
| Weight | 0.084 kg |
| Manufacturer code | SHELLY_CT_120 |
