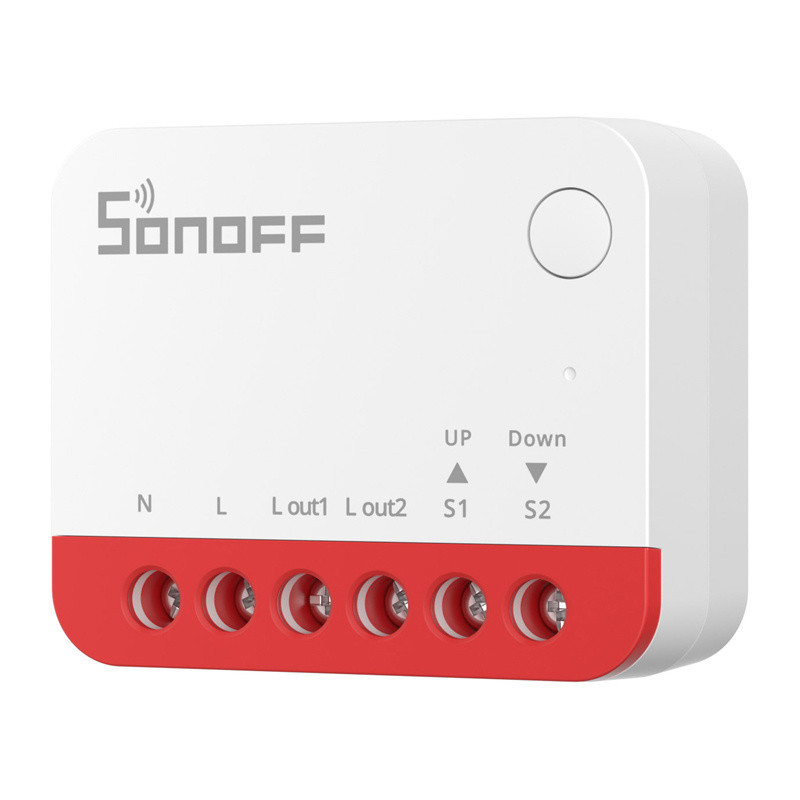

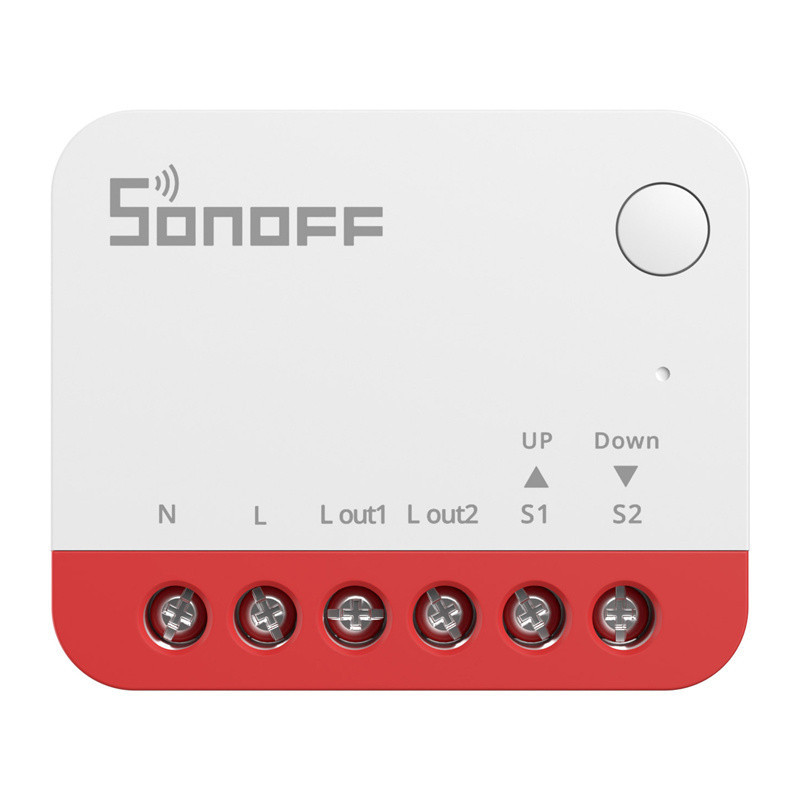

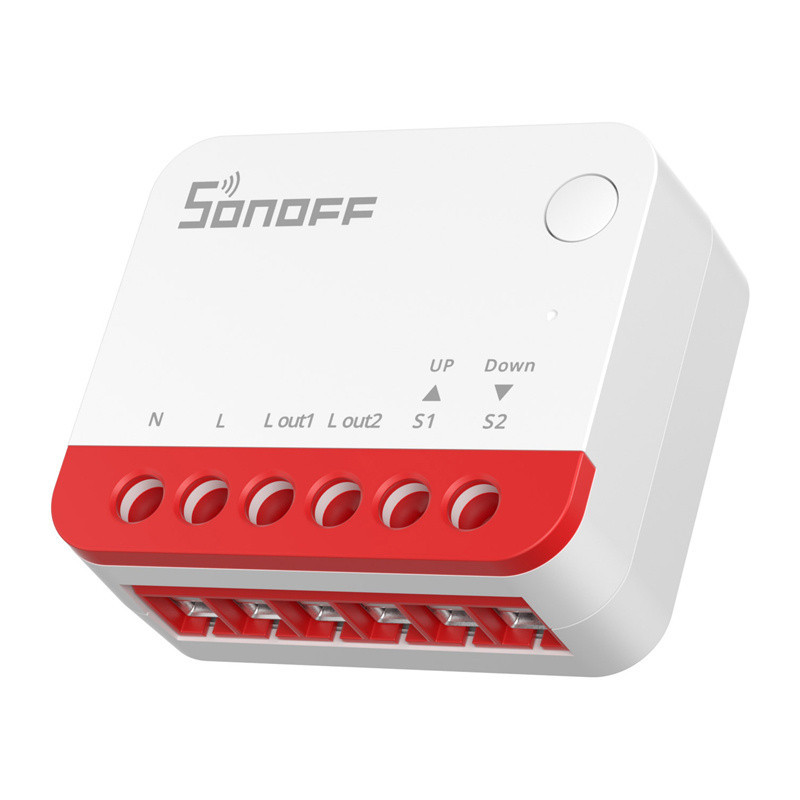

Roller Shutter Switch - Sonoff MINI-ZBRBS 4 pcs., Zigbee 3.0, 100-240 V, 1 A
Product reference: 14-6920075743340

Sonoff MINI-ZBRBS 4-Pack kit includes four Zigbee 3.0 roller shutter control modules for 100-240 V and up to 1 A motors. Each module supports percentage positioning, motor calibration, manual wall switches, and integration with Home Assistant.

Roller Shutter Switch - Sonoff MINI-ZBRBS 4 pcs., Zigbee 3.0, 100-240 V, 1 A

Product reference: 14-6920075743340

Sonoff MINI-ZBRBS 4-Pack kit includes four Zigbee 3.0 roller shutter control modules for 100-240 V and up to 1 A motors. Each module supports percentage positioning, motor calibration, manual wall switches, and integration with Home Assistant.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
85,19 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

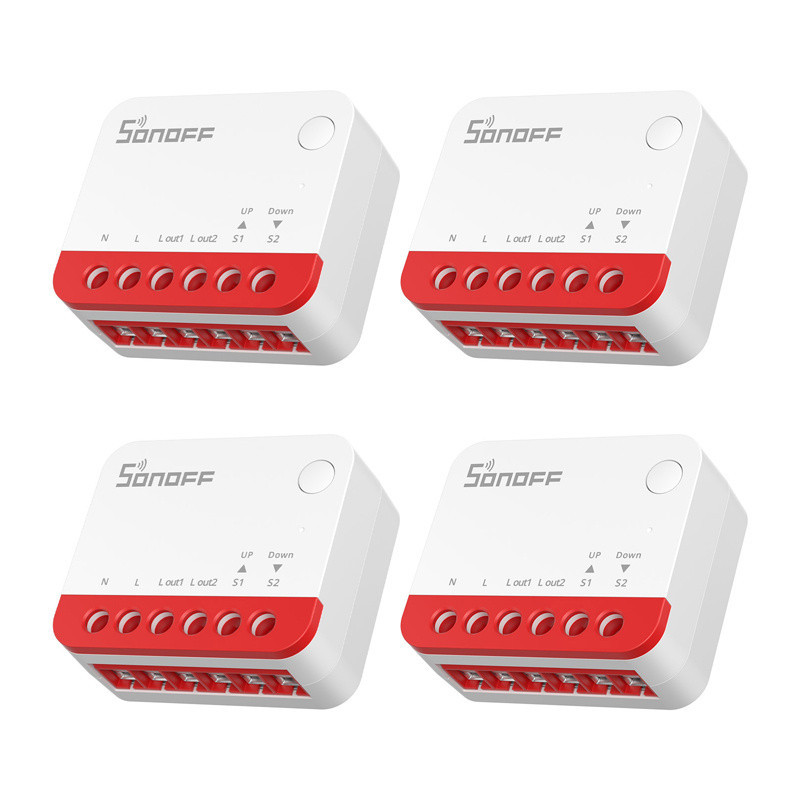

Sonoff MINI-ZBRBS 4 pcs.


The " Sonoff MINI-ZBRBS 4 pcs." set includes four Zigbee 3.0 roller shutter control modules for 100-240 V voltage and up to 1 A motors. Each module supports percentage positioning, motor calibration, manual wall switches, and integration with Home Assistant.


  • Smart Zigbee 3.0 roller shutter switch for automatic control of compatible blinds and shutters
  • The position of the blinds can be adjusted in percentages, and the motor calibration ensures precise opening and closing.
  • Supports traditional wall switches and works with compatible 4- and 5-wire AC motors
  • Compact housing fits most 60mm mounting boxes and acts as a Zigbee network router; 4 switches included

Product information

Product type Smart roller shutter switch
Brand Sonoff
Model MINI-ZBRBS 4-Pack
Quantity 4 switches

Technical specifications

Input voltage 100-240V AC, 50/60Hz
Engine load 100-240V AC, up to 1A
Wireless communication standard Zigbee 3.0
Compatibility with engines Compatible with standard 4 and 5 wire AC motors
Module dimensions 39.5 × 33 × 16.8mm
Compatibility with mounting boxes Fits most 60mm wall boxes
Housing material PC
Operating temperature −10°C-40°C

Features and compatibility

Manual control Supports compatible momentary, two-button, and three-position wall switches
Zigbee function Works as a Zigbee network router
Smart home integration Compatible with supported Zigbee gateways and Home Assistant
Complete set 4 roller shutter switches and instruction manual

Safety information

Safety warning For indoor installation only and compatible roller shutter systems. The product operates on mains voltage. Installation, connection and motor calibration must be carried out by a qualified electrician before disconnecting the power supply. Do not exceed the specified motor load of 1 A and do not use the switch with incompatible motors.

Height60mm
Length200mm
Weight180 g
Width120mm
