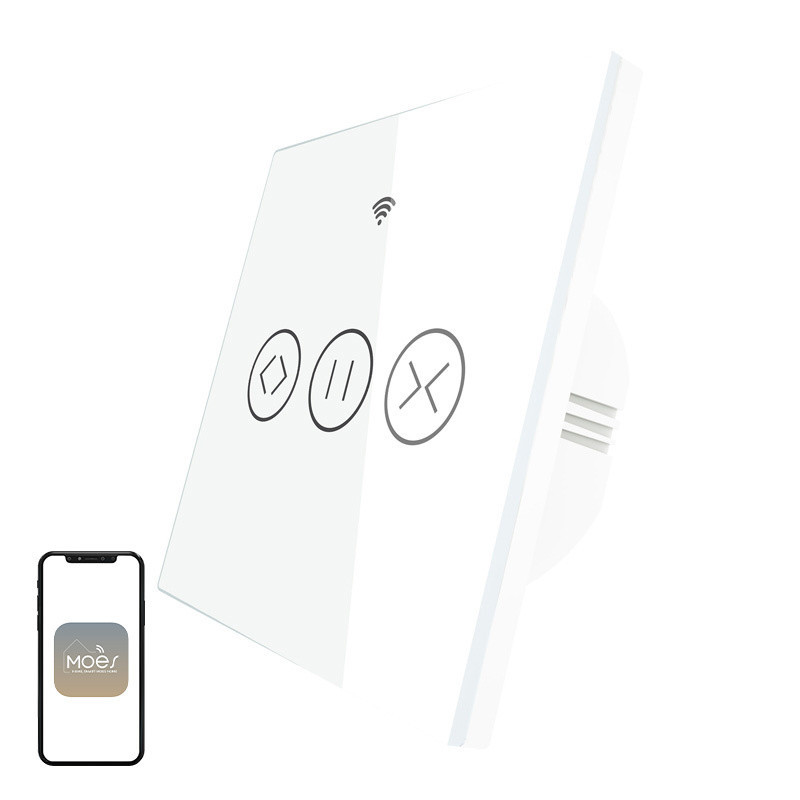

Smart wall switch for controlling 4-wire roller shutter motors via touch panel, mobile app, voice commands or RF433 remote control. Supports 2.4 GHz Wi-Fi, schedules, device sharing and loads up to 600 W at 90-250 V AC.
Smart wall switch for controlling 4-wire roller shutter motors via touch panel, mobile app, voice commands or RF433 remote control. Supports 2.4 GHz Wi-Fi, schedules, device sharing and loads up to 600 W at 90-250 V AC.





Smart wall switch for controlling 4-wire roller shutter motors via touch panel, mobile app, voice commands or RF433 remote control. Supports 2.4 GHz Wi-Fi, schedules, device sharing and loads up to 600 W at 90-250 V AC.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Smart wall switch for controlling 4-wire roller shutter motors via touch panel, mobile app, voice commands or RF433 remote control. Supports 2.4 GHz Wi-Fi, schedules, device sharing and up to 600 W load at 90-250 V AC.
Product information | |
|---|---|
| Product type | Smart roller shutter switch |
| Brand | MOES |
| Model | WRS-EUC-WH-MS |
| Color | White |
| Compatible engines | 4-wire roller shutter motors |
Electrical specifications | |
| Operating voltage | 90-250V AC |
| Operating frequency | 50/60Hz |
| Maximum current | 2.5 A per output; 2.5 A total |
| Maximum load | 600W |
| Standby power consumption | Up to 0.5W |
Wireless specifications | |
| Wi-Fi standard | IEEE 802.11 b/g/n |
| Wi-Fi frequency | 2.4GHz, 2.412-2.484GHz |
| Indoor wireless range | Up to 30 m |
| Maximum transmission power | Less than +16 dBm |
Safety warning | |
| Warning | The product uses mains voltage for installation and connection and must be carried out by a qualified electrician. Use only with compatible 4-wire roller shutter motors and within the specified voltage, current and load limits. Disconnect the power supply before installation or maintenance. |
| Height | 50mm |
| Length | 150mm |
| Weight | 250 g |
| Width | 100mm |
