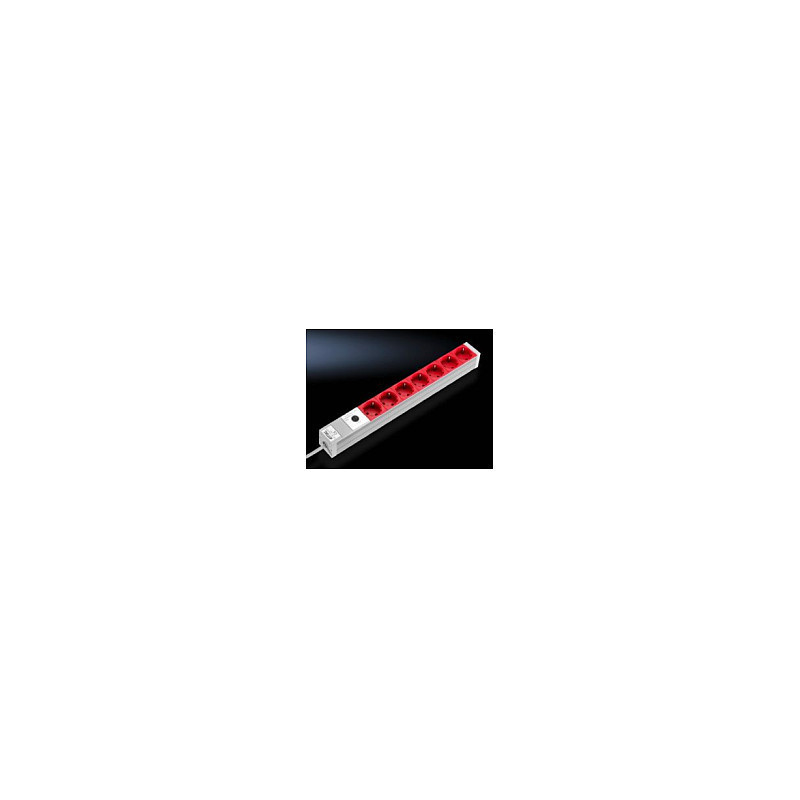

Rittal DK 7240.260 power extension

Rittal DK 7240.260. Cable length: 2 m, Placement supported: Indoor, AC outlet types: Type D. AC outlets quantity: 7 AC outlet(s). AC input voltage: 230 V, Maximum current: 10 A. Width: 482.6 mm, Depth: 44 mm, Height: 44 mm. Number of products included: 1 pc(s)
The socket strips in the aluminium duct are available in various country-specific varitants with different functional elements. Special attention has been devoted to practical, universal fastening: Variable attachment facilities have been created with an angle bracket which may be inserted in four positions. Hence, for example, the 482 mm long socket strip may optionally be mounted on 482.6mm (19") mounting angles, the 482.6 mm (19") mounting frame, on the enclosure frame, or in the rear section of the wall-mounted distributor. Without additional mounting accessories, the socket strip may be inserted into all sections with a 25 mm hole pattern. This makes selection much easier, as well as providing additional flexibility and saving on warehousing. Provision has also been made for cable routing of the infeed, and when mounting in the 482.6 mm (19") section there is adequate space to route the infeed between the socket strip and the profile rail without kinks. The arrangement of the IEC 320 sockets at a 45° angle allows unrestricted use of angular connectors.

Features

AC outlet types: Type D
Cable length: 2 m
Placement supported: Indoor
Housing material: Aluminium
Material: Aluminium

Ports interfaces

AC outlets quantity: 7 AC outlet(s)

Power

AC input voltage: 230 V
Maximum current: 10 A

Weight dimensions

Width: 482.6 mm
Depth: 44 mm
Height: 44 mm

Packaging data

Number of products included: 1 pc(s)
