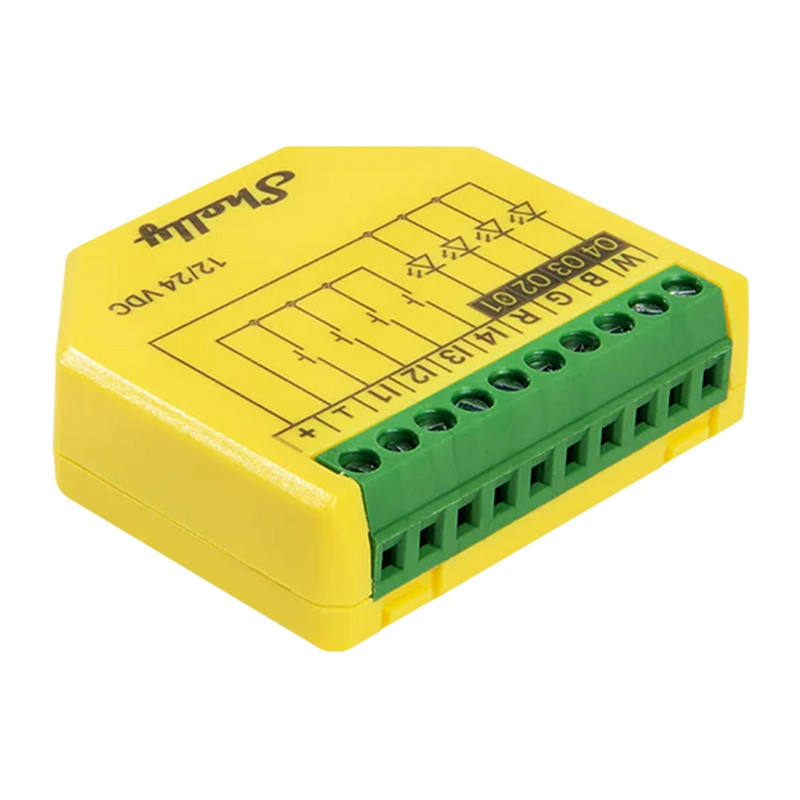

RGB Controller - Shelly Plus RGBW PM 2-Pack
Product reference: 14-3800235267660

Two " Shelly Plus RGBW PM" controllers for 12/24 V DC white, RGB and RGBW LED strips, controlled via Wi-Fi and Bluetooth. Each controller supports energy monitoring, schedules and MQTT, provides up to 4 A per channel and up to 10 A total current.

RGB Controller - Shelly Plus RGBW PM 2-Pack

Product reference: 14-3800235267660

Two " Shelly Plus RGBW PM" controllers for 12/24 V DC white, RGB and RGBW LED strips, controlled via Wi-Fi and Bluetooth. Each controller supports energy monitoring, schedules and MQTT, provides up to 4 A per channel and up to 10 A total current.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
84,71 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

Shelly Plus RGBW PM, 2 pcs.


Two " Shelly Plus RGBW PM" controllers for controlling 12/24 V DC white, RGB and RGBW LED strips via Wi-Fi and Bluetooth. Each device supports energy monitoring, schedules, MQTT and up to 4 A per channel and 10 A total current.


  • Two " Shelly Plus RGBW PM" controllers for controlling 12/24 V LED strips in white, RGB or RGBW light modes
  • Lighting is customizable with brightness control, 16 million colors, and dynamic lighting effects
  • Lighting can be controlled remotely via Wi-Fi, Bluetooth, the Shelly Smart Control app, voice assistants and popular smart home platforms
  • Monitor energy consumption and create automated schedules and scenes; overload protection ensures greater safety

Product information

Product type RGB/RGBW LED strip controller
Brand Shelly
Model Plus RGBW PM
Quantity 2 controllers
Body color Yellow
Material Plastic

Physical specifications

Dimensions of one controller 42×37×12±0.5mm
Weight of one controller 17 grams
Installation Installation in a wall box
Operating temperature −20°C-40°C
Operating humidity 30-70%

Electrical specifications

Power source 12/24V DC
Maximum control voltage 24V DC
Energy consumption Less than 1.2 W
Maximum current 4 A per channel; 10 A total
PWM frequency 22 kHz
Voltage measurement range 0-24V
Voltage measurement accuracy ±5%
Current measurement range 0-10A
Current measurement accuracy ±10%
No-load detection threshold 0.5 VA per channel
Energy measurement Yes
Temperature sensor Integrated

Connectors and connectivity

Compatible LED strips 12/24 V DC white, RGB and RGBW LED strips
Wire cross-section 0.1-1 mm²
Length of insulation stripped from the wire 6 mm
Maximum terminal torque 0.2 Nm
Wi-Fi range Up to 30 m indoors and up to 50 m outdoors, depending on conditions
Bluetooth Bluetooth 4.2
Bluetooth range Up to 10 m indoors and up to 30 m outdoors, depending on conditions
Additional network features Wi-Fi repeater and Bluetooth Low Energy gateway

Software and automation

Schedules Up to 20
Web calls Up to 20, 5 URLs per call
Scripts Supported
MQTT Supported
Processor ESP- Shelly C38F, 160 MHz
Memory 400 KB RAM; 4 MB flash memory

Safety

Safety warning Use only with compatible 12/24 V DC LED strips. Disconnect power supply before installation or maintenance. Electrical connections must be made by a qualified technician. Do not exceed the maximum single channel and total current.

Height50mm
Length150mm
Weight60 g
Width100mm
