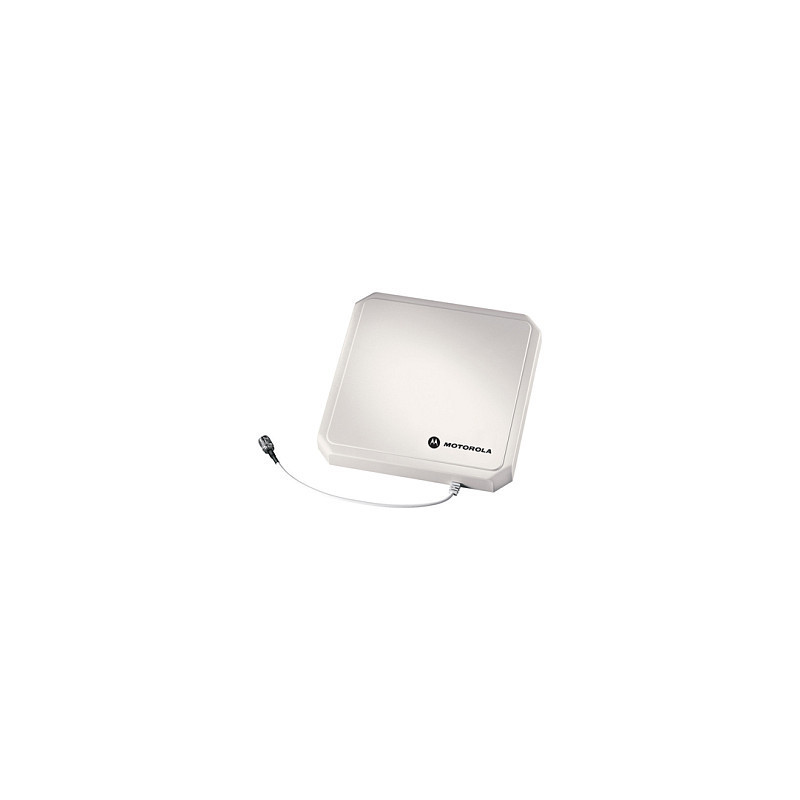

Motorola AN480 RFID Antenna network antenna

Motorola AN480 RFID Antenna. Antenna gain level (max): 6 dBi, Impedance: 50 Ω, Horizontal beam width: 65°. Antenna type: Directional antenna, Antenna connector type: N-type, Voltage Standing Wave Ratio (VSWR): 1.22:1. Certification: RoHS, UL. Width: 259.1 mm, Depth: 259.1 mm, Height: 50.3 mm. Frequency range: 865 - 868 MHz
This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise from the manufacturing and warehouse floors to the dock doors and outside in the yard.
The AN480 antenna offers the environmental sealing required for indoor and outdoor use. Its extremely low axial ratio delivers a more uniform gain for superior performance.

Performance

Impedance: 50 Ω
Horizontal beam width: 65°
Vertical beam width: 65°
Antenna gain level (max): 6 dBi

Features

Antenna type: Directional antenna
Antenna connector type: N-type
Voltage Standing Wave Ratio (VSWR): 1.22:1
Product colour: White
Power handling: 2 W
Purpose: Outdoor

Certificates

Certification: RoHS, UL

Weight dimensions

Width: 259.1 mm
Depth: 259.1 mm
Height: 50.3 mm
Weight: 1.13 kg

Logistics data

Harmonized System (HS) code: 85177100

Other features

Frequency range: 865 - 868 MHz
