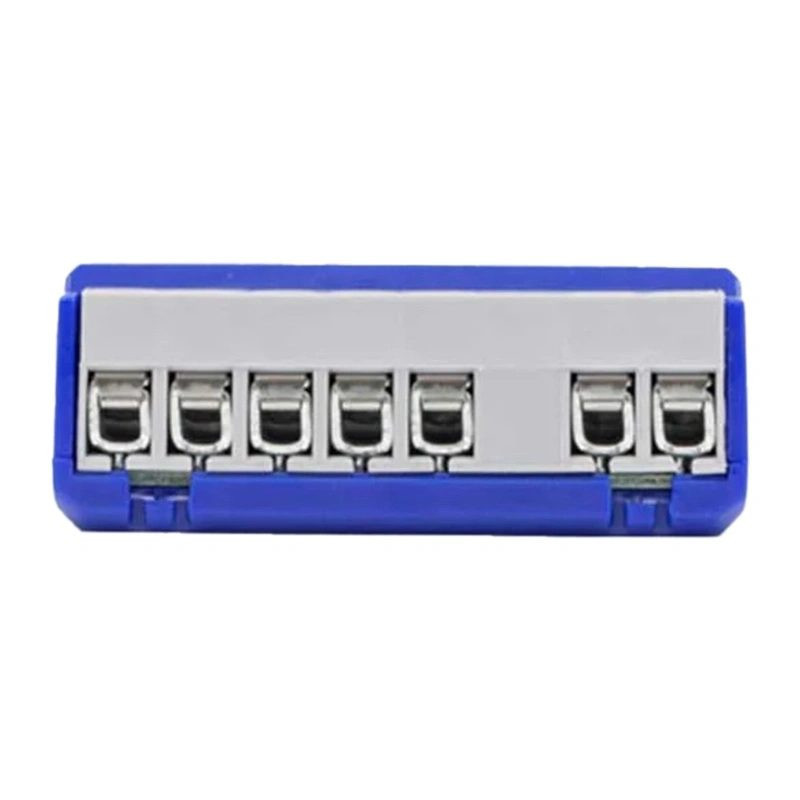

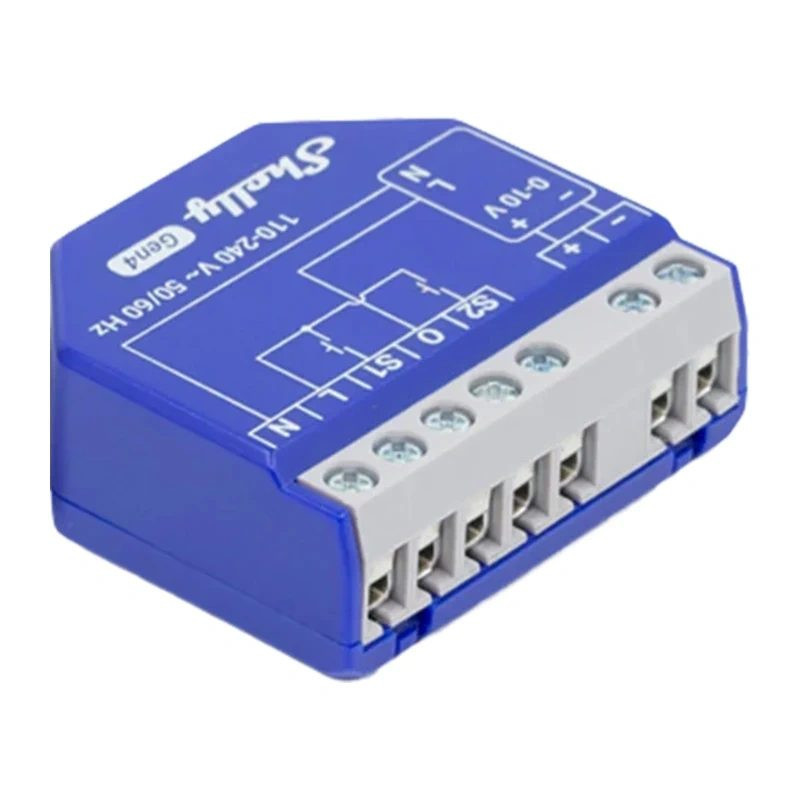

Smart 0/1-10 V and 1-10 V dimmer for LED lighting, motors and valves, with remote control and energy consumption monitoring. Supports Wi-Fi, Zigbee, Bluetooth and Matter connectivity, can be mounted behind a wall switch; compact blue housing dimensions - 38.5 × 43.5 × 17 mm.
Smart 0/1-10 V and 1-10 V dimmer for LED lighting, motors and valves, with remote control and energy consumption monitoring. Supports Wi-Fi, Zigbee, Bluetooth and Matter connectivity, can be mounted behind a wall switch; compact blue housing dimensions - 38.5 × 43.5 × 17 mm.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Smart 0/1-10 V and 1-10 V dimmer for LED lighting, motors and valves, with remote control and energy monitoring. Supports Wi-Fi, Zigbee, Bluetooth, Matter and installation with a wall switch. Dimensions of the compact blue housing - 38.5 × 43.5 × 17 mm.
Product information | |
|---|---|
| Product type | Smart 0-10V/1-10V dimmer and control module |
| Brand | Shelly |
| Model | Shelly Dimmer 0/1-10V PM Gen4 |
| Color | Blue body with white lettering |
| Dimensions | 38.5 × 43.5 × 17 mm |
| Weight | 28.5 grams |
| Material | Plastic housing |
Electrical specifications | |
| Power source | 110-240V AC, 50/60Hz |
| Energy consumption | < 1.5W |
| Control method | 0-10 V and 1-10 V current source or current sink |
| Maximum switching voltage | 240V AC |
| Maximum switching current | 13 A |
| Maximum control current | 35 mA |
| External protection required | 16 A circuit breaker, B or C characteristic, 6 kA breaking capacity, energy limitation class 3 |
Measurement and protection | |
| Voltage measurement range | 110-240V AC |
| Current measurement range | 50 mA-16 A AC |
| Measurement accuracy | Voltage: ±10%; Current: ±10% |
| Internal temperature sensor | Yes |
| Security features | Protection against overheating, overload, overvoltage and overcurrent |
Connection | |
| Wi-Fi | 802.11 b/g/n/ax, 2.4 GHz; transmit power < 20 dBm |
| Bluetooth | Bluetooth 5.0; transmission power < 4 dBm |
| Zigbee | 802.15.4, 2.4 GHz, with repeater function; transmission power < 20 dBm |
| Smart Home Protocol | Matter |
| Supported integrations | Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant and other compatible platforms |
| Communication interfaces | MQTT, HTTP, HTTPS, UDP, Webhooks and KNXnet/IP |
Hardware and software | |
| Processor | ESP32-C6, 80MHz |
| Flash memory | 8MB |
| Schedules | Up to 20 |
| Webhooks | Up to 20, each can contain up to 5 URLs |
| Automation features | Scripts, advanced schedules, timers, sunrise and sunset scenarios, and key-value storage |
Installation and connections | |
| Mounting locations | Junction box, location behind a wall switch or ceiling-mounted structure |
| Compatibility with wall switches | Single and double button switches |
| Wire cross-section | 0.2-2.5 mm², including single-core, multi-core and ferruled wires |
| Length of the exposed part of the cable | 5-6mm |
| Maximum terminal torque | 0.4 Nm |
Terms of Use | |
| Operating temperature | −20-40 °C |
| Operating humidity | 30-70% relative humidity |
| Maximum working height | 2,000 m above sea level |
Complete set | |
| In the set |
|
Safety warning | |
| Safety information | For fixed electrical installations only. Installation, wiring and maintenance work must be carried out by a qualified electrician, with the power supply disconnected. Use only with compatible 0-10 V or 1-10 V equipment and within the specified voltage, current, temperature and protection limits. Do not use the module for any purpose other than to control compatible lighting, motor or valve systems. |
| Height | 60mm |
| Length | 120mm |
| Weight | 50 g |
| Width | 100mm |
