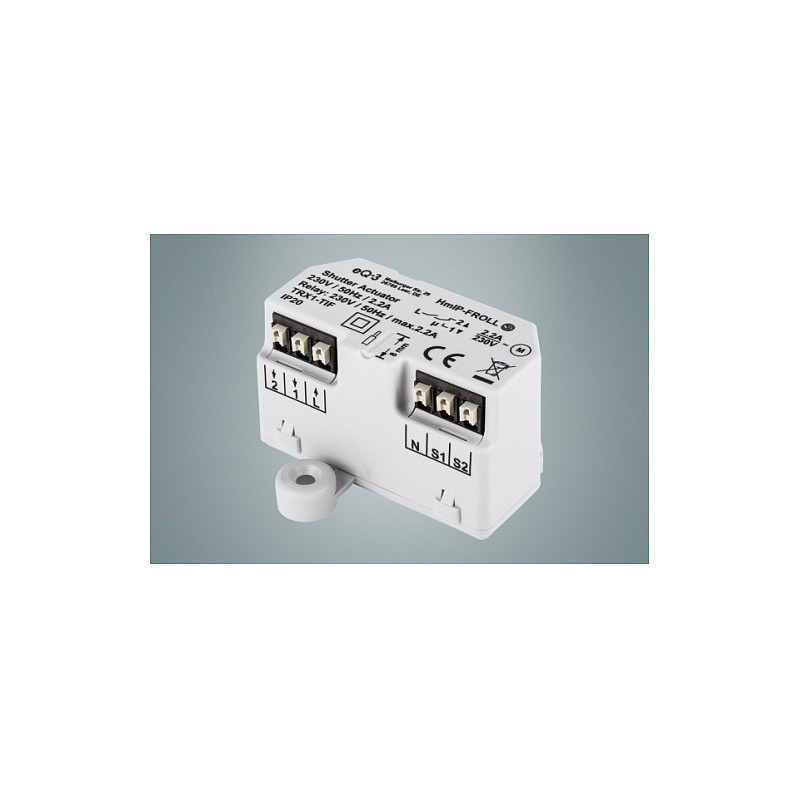

HomeMatic HmIP-FROLL blind / shutter accessory

HomeMatic HmIP-FROLL. Product type: Transmitter, Product colour: White, Maximum outdoor range: 180 m. Power: 0.2 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Width: 54 mm, Depth: 41 mm, Height: 33 mm
Flush-mounted actuator controls shutters and awnings
- Comfortable operation via Homematic IP app and via Homematic IP Remote Control
- With individually configured week profiles, shutters/awnings can be moved up and down in a time-controlled manner
- Comfortable control dependent on sunrise and sunset
- Lock-out, storm and heat protection can be realised in combination with the Homematic IP app and additional
- components
- Easy to install with automatic calibration drive
- Suitable for all standard tube motors
- Supports connection of two standard push-buttons via screwless clamps for local operation
- Compact design offers easy installation in flush-mounted boxes or in surface-mounted junction boxes (e.g. ELS Spelsberg Abox 25) e.g. for operation in basements
- Easy to install thanks to screwless clamps
- A neutral conductor is required for installation
- Can be used with the Access Point in connection with the Homematic IP app (no recurring costs), the Homematic
- Central Control Unit CCU2 as well as with various partner solutions

Features

Product type: Transmitter
Product colour: White
Maximum outdoor range: 180 m
Frequency: 868.6 MHz
International Protection (IP) code: IP20
Certification: CE

Power

Power: 0.2 W
AC input voltage: 230 V
AC input frequency: 50 Hz
Current: 2.2 A

Operational conditions

Operating temperature (T-T): -10 - 55 °C

Weight dimensions

Width: 54 mm
Depth: 41 mm
Height: 33 mm
Weight: 40 g
Package width: 122 mm
Package depth: 112 mm
Package height: 48 mm
Package weight: 121.2 g
