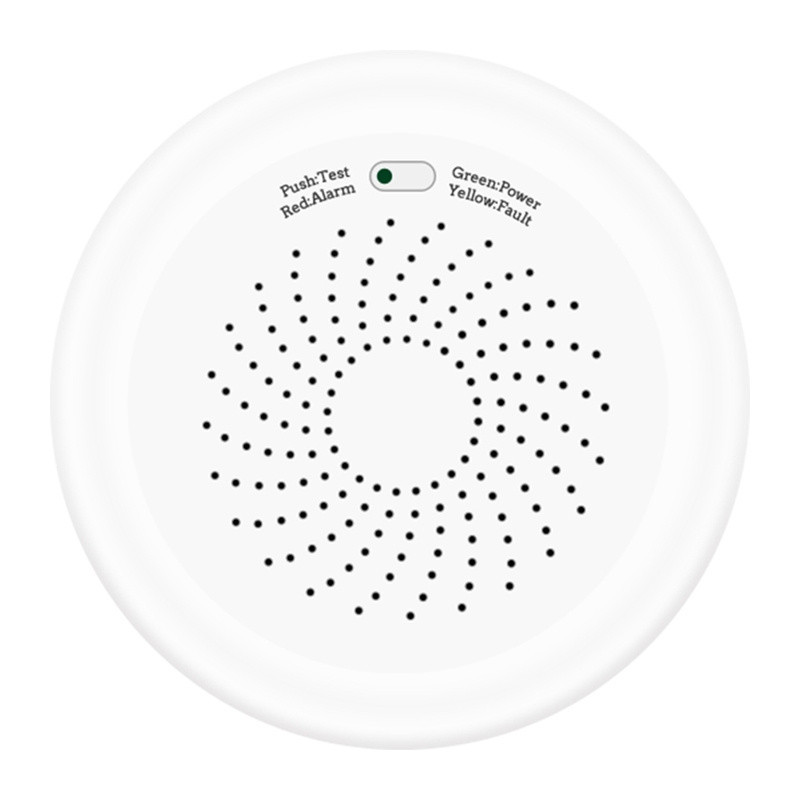

Gas Leak Detector - Moes ZSS-QY-GL-U ZigBee Natural Gas 8% LEL 5 V USB
Product reference: 14-6974246475417

Moes ZSS-QY-GL-U - ZigBee natural gas detector for monitoring methane leaks. When the level reaches 8% of the lower explosive limit (LEL), an audible and visual alarm is activated, and notifications are sent to the app via the Tuya gateway; the device is powered by a 5V USB connection, mounted on a wall or ceiling, and operates from -10 to 55 °C.

Gas Leak Detector - Moes ZSS-QY-GL-U ZigBee Natural Gas 8% LEL 5 V USB

Product reference: 14-6974246475417

Moes ZSS-QY-GL-U - ZigBee natural gas detector for monitoring methane leaks. When the level reaches 8% of the lower explosive limit (LEL), an audible and visual alarm is activated, and notifications are sent to the app via the Tuya gateway; the device is powered by a 5V USB connection, mounted on a wall or ceiling, and operates from -10 to 55 °C.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
44,56 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

Moes ZSS-QY-GL-U


Moes ZSS-QY-GL-U - ZigBee natural gas detector for monitoring methane leaks. It warns when the concentration reaches the 8% LEL limit, emits an audible and visual signal, and sends notifications to the app via the Tuya gateway. Powered by 5 V via USB, it can be mounted on a wall or ceiling and operates in temperatures from -10 °C to 55 °C.


  • Smart ZigBee natural gas detector for monitoring methane leaks near gas appliances and pipes
  • Quickly detects 0-100% LEL concentration and triggers an alarm at 8% LEL
  • Loud ≥70 dB signal, flashing red light and remote notifications to the app via Tuya ZigBee gateway
  • Powered via USB-C, has temperature compensation, a test button, and can be mounted on a wall or ceiling

Product information

Product type ZigBee Natural Gas Leak Detector
Brand Moes
Model ZSS-QY-GL-U
Detectable gases Methane (natural gas)
Detection range 0-100% LEL
Accuracy ±3% LEL

Technical specifications

Connection ZigBee; Tuya ZigBee gateway required for notifications to the app
Frequency band 2.405-2.480 GHz
Maximum radio frequency transmission power < +10 dBm
Input 5V DC, 1A
Operating temperature from -10°C to +55°C
85 × 29 mm

Alarm and installation

Alarm type Audible alarm, flashing red indicator and wireless notification
Signal volume ≥70 dB at 1 m distance
Status indicators Green: normal operation; red: alarm; yellow: possible fault
Controls Front-mounted test button
Installation On the wall or ceiling
Recommended place Approximately 0.3-1 m below the ceiling and near potential methane leak sources

Included accessories

Complete set
  • Gas detector
  • Power cable
  • User manual
  • Mounting plate
  • 3M adhesive tape
  • 2 screws
  • 2 anchor pins

Safety warning

Important Use only to detect methane or natural gas leaks. This device is an additional warning device and does not replace regular inspection, maintenance or emergency response of gas appliances. Install the device correctly, do not block the ventilation openings and check it regularly. If you suspect a gas leak, leave the premises and contact the emergency services.

Height100mm
Length200mm
Weight250 g
Width100mm
