Shelly SBDW-103C - door and window sensor supporting "Zigbee 3.0" and "Bluetooth 5 LE", with reed, tilt and light sensors. The compact 35 × 35 × 7 mm device operates on a CR2032 battery and provides encrypted communication.
Shelly SBDW-103C - door and window sensor supporting "Zigbee 3.0" and "Bluetooth 5 LE", with reed, tilt and light sensors. The compact 35 × 35 × 7 mm device operates on a CR2032 battery and provides encrypted communication.


Shelly SBDW-103C - door and window sensor supporting "Zigbee 3.0" and "Bluetooth 5 LE", with reed, tilt and light sensors. The compact 35 × 35 × 7 mm device operates on a CR2032 battery and provides encrypted communication.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

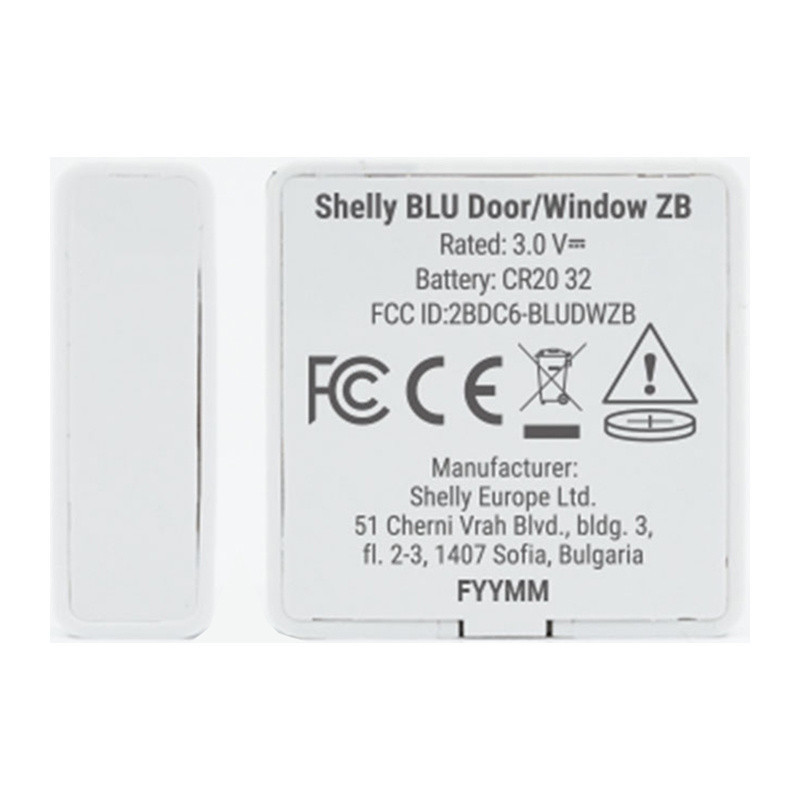

Shelly SBDW-103C - door and window sensor, supporting Zigbee 3.0 and Bluetooth 5 LE communication. It is equipped with reed, tilt and light sensors. The sensor dimensions are 35 × 35 × 7 mm, it uses a CR2032 battery and supports encrypted communication.
Product information | |
|---|---|
| Product type | Smart door and window sensor |
| Brand | Shelly |
| Model | SBDW-103C |
| Housing material | Plastic |
| Dimensions | 35 × 35 × 7 mm ±0.5 mm (sensor); 35 × 12 × 7 mm ±0.5 mm (magnet) |
| Weight | 10 g ±1 g (sensor with battery); 8 g ±1 g (magnet) |
Power and sensors | |
| Battery | 1 × 3V CR2032 battery |
| Sensors | Reed switch, G-sensor and light sensor |
| Detection functions | Door or window opening, closing, tilt angle, lighting level and battery status |
| Operating modes | Normal mode and Beacon mode, where data is transmitted every 30 seconds |
Wireless connection | |
| Bluetooth | Bluetooth 5 LE |
| Bluetooth frequency | 2402-2480MHz |
| Bluetooth transmission power | <8 dBm |
| Bluetooth operating range | Up to 10 m indoors and 30 m outdoors, depending on environmental conditions |
| Zigbee protocol | IEEE 802.15.4 |
| Zigbee frequency | 2405-2480MHz |
| Zigbee transmission power | <8 dBm |
| Zigbee operating range | Up to 10 m indoors and 30 m outdoors, depending on environmental conditions |
| Connection security | Encrypted connection |
| Compatibility | BTHome; " Shelly Plus", "Gen3", "Gen4" and "Pro" series devices |
Technical data | |
| Processor | EFR32MG27 |
| Flash memory | 768 kB |
| Operating temperature | From -20°C to 40°C |
| Operating humidity | 30% to 70% relative humidity |
Safety information | |
| Safety warning | Use the sensor only for its intended purpose - to monitor doors and windows. Keep the CR2032 battery out of the reach of children and pets; swallowing the coin-type battery can cause serious injury. Install and use the device in a dry environment, within the specified temperature and humidity limits. |
| Height | 50mm |
| Length | 100mm |
| Weight | 15 grams |
| Width | 50mm |
