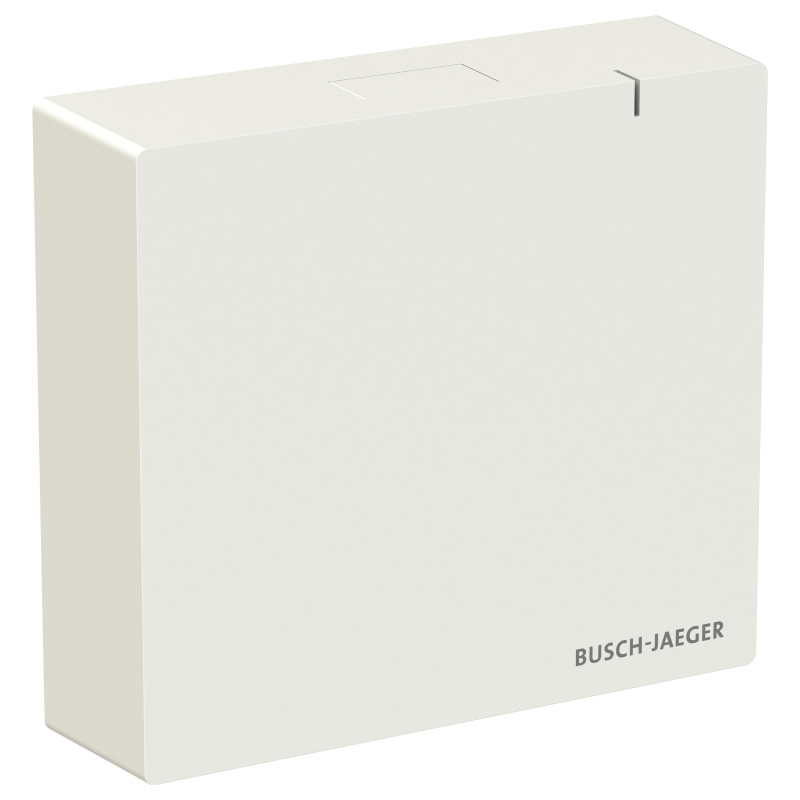

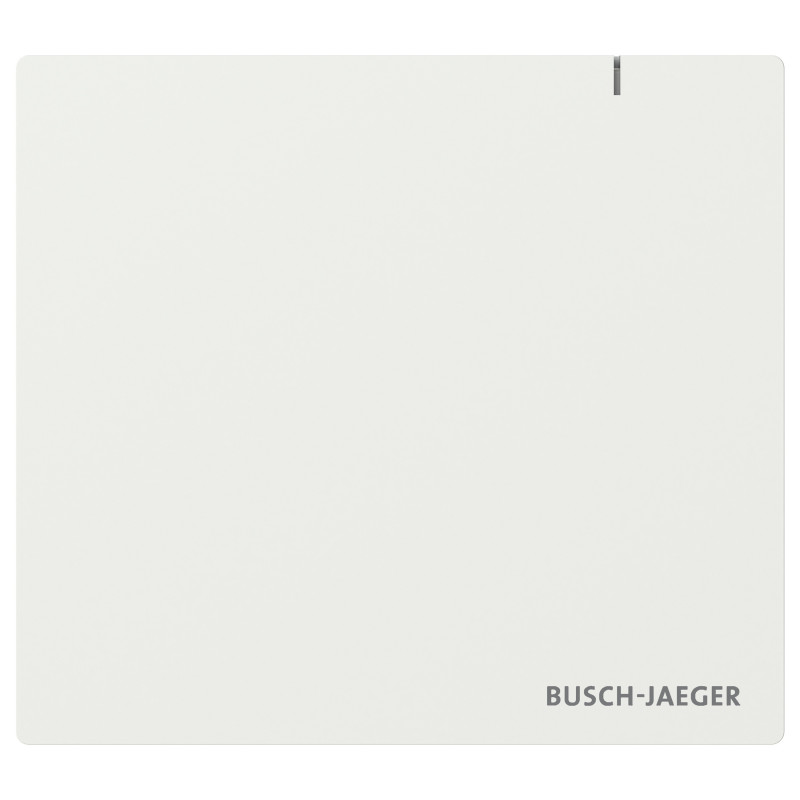

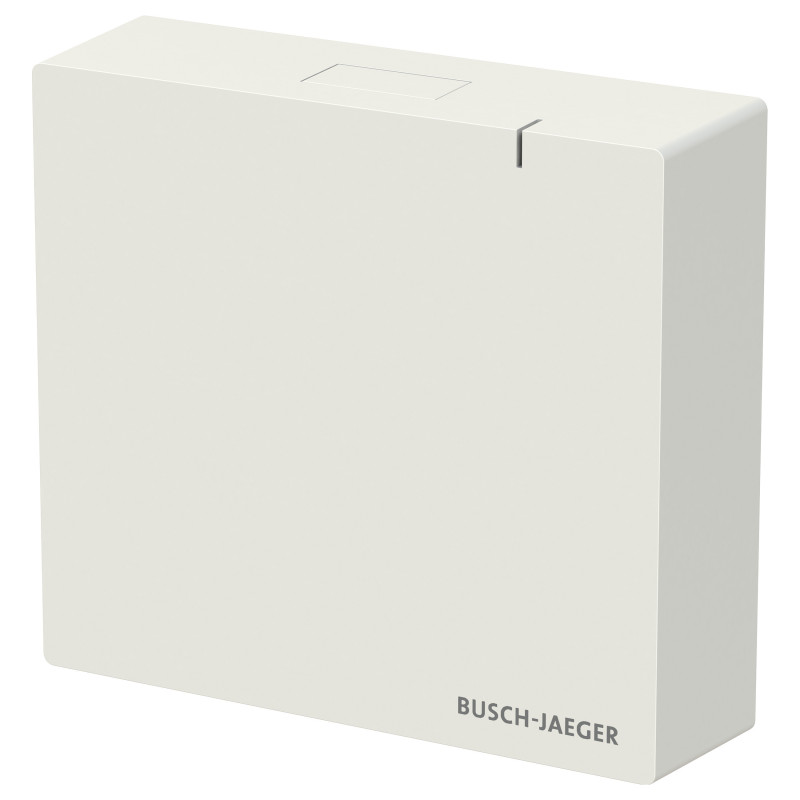

Busch-Jaeger 2CKA006200A0868 wall plate / switch cover

Busch-Jaeger 2CKA006200A0868. Product colour: White, Material: Thermoplastic, Product design: Conventional. Width: 107.2 mm, Height: 30.7 mm, Weight: 187.5 g. Quantity per pack: 1 pc(s)

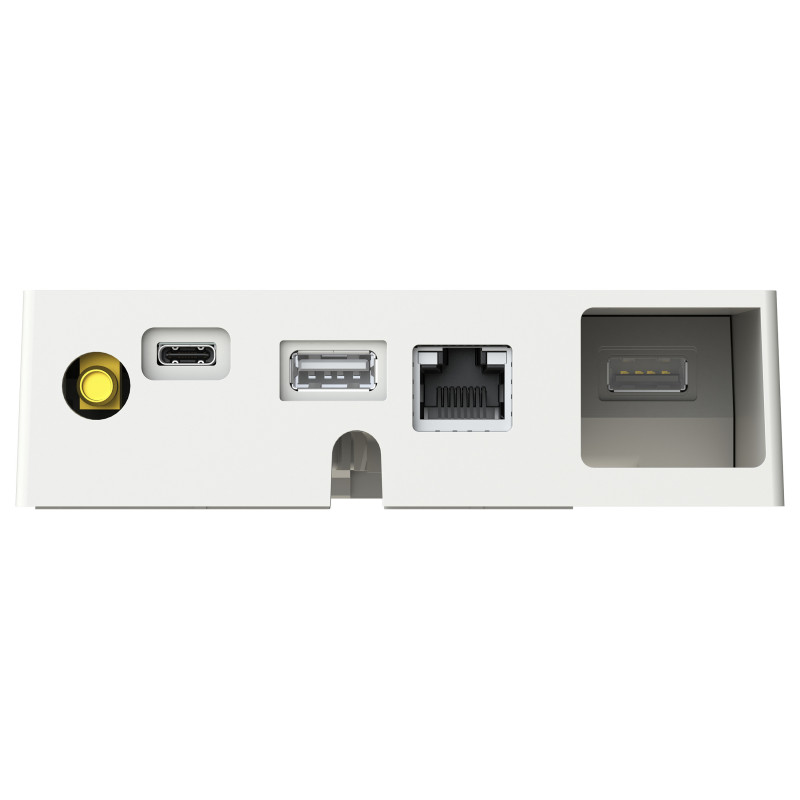

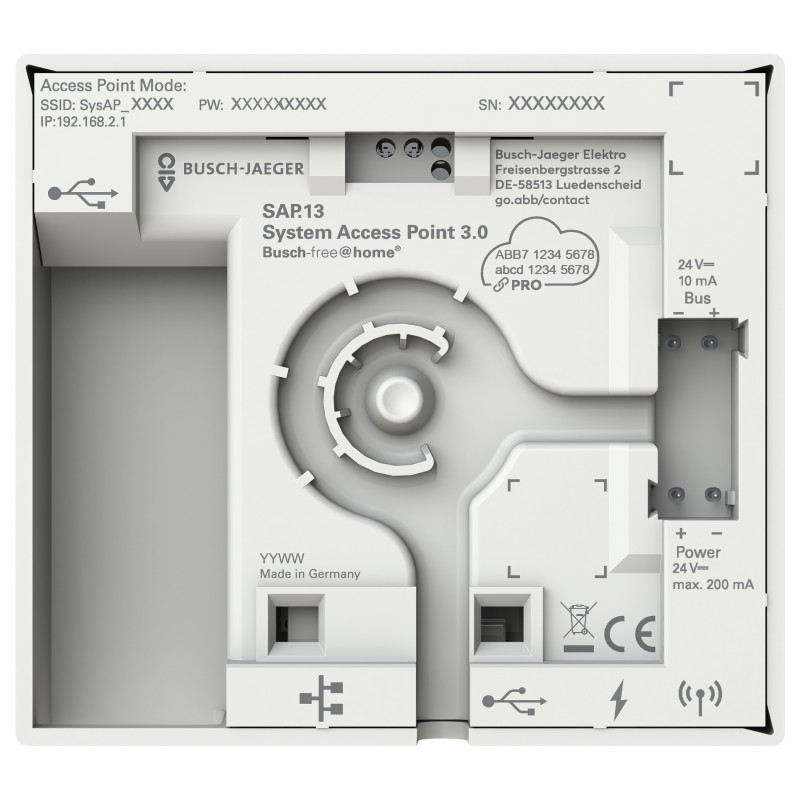

For commissioning and remote control of the ABB-free@home® system. Support for up to 150 free@home participants (independent of whether wireless or wired). With integrated free@home wireless antenna. With integrated free@home bus connection. Easy to mount thanks to the external USB-C Power Supply (included in the scope of delivery). Optional supply via the yellow/white twisted pair of the bus line (24 V). Allows the execution of astro and time programs. Commissioning and remote control is executed via the web interface or app. No additional commissioning software is required. Easy commissioning with WLAN ad-hoc mode. Connection to the home network via WLAN client mode or via CAT cable. Suitable for wall mounting. 2 x USB ports for future extension of functions. 2.4 GHz and 5 GHz WLAN 1.4 GHz dual core processor 1 GB internal memory Scope of delivery: Mounting plate, USB-C Power Supply. The bus connection is provided via the enclosed bus terminal.

Features

Product colour: White
Material: Thermoplastic
Finish type: Matte
Product design: Conventional
Brand compatibility: Busch-Jaeger
International Protection (IP) code: IP20
Type: Faceplate
Certification: RoHS, REACH, WEEE

Weight dimensions

Width: 107.2 mm
Height: 30.7 mm
Weight: 187.5 g

Packaging data

Quantity per pack: 1 pc(s)
