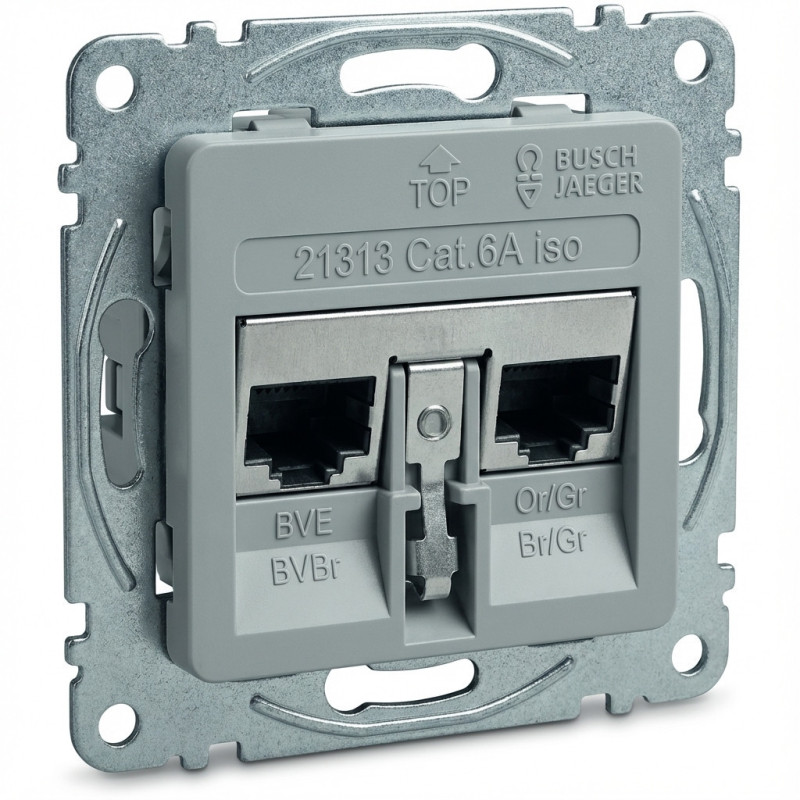

Busch-Jaeger 0218 / 12-101 socket-outlet

Busch-Jaeger 0218/12-101. Socket type: 2 x RJ-45, Networking cable category: 6a. Product colour: Metallic, Certification: ISO / IEC 11801: 2011-06, EN 60 603-7-51: 2011-01, DIN EN 55022, class B. Depth: 31 mm, Input diameter: 1 cm
- With angled outlet and LSA IDC terminals.
- RJ-45-Anschlüsse for networks according to Cat. 6A, Class EA (10 Gbit/s / 500 MHz).
- Equivalent to Cat. 6A, Class EA according to ISO/IEC 11801:2011-06.
- Connection marking A and B according to TIA/EIA-568-B.2.
- Construction according to EN 60 603-7-51:2011-01.
- Shielding according to DIN EN 55022, Class B.
- Up to 500 MHz on all wire pairs.
- Suitable for 10-Gigabit Ethernet.
- Suitable for PoE+ according to IEEE 802.3at, ≥ 1000 mating cycles.
- Flexible cable entry without kinks from all sides.
- Housing grounding via 6.3 mm flat connector on the rear is possible.
- Re-embedded tested.
- Suitable for mix-and-match use.
- Suitable for RJ11, RJ12, and RJ45 connectors.
- For data cables with a diameter of 6-10 mm.
- For installation in cable ducts, flush-mounted device boxes, and underfloor systems.
- For conductors from AWG 24-22.
- Without spreader.
- Installation depth 31 mm.

Features

Socket type: 2 x RJ-45
Sockets quantity: 2
Networking cable category: 6a

Design

Product colour: Metallic
Certification: ISO / IEC 11801: 2011-06, EN 60 603-7-51: 2011-01, DIN EN 55022, class B

Weight dimensions

Depth: 31 mm
Input diameter: 1 cm
