Bachmann 906.18821 socket-outlet

Bachmann 906.18821. Socket type: Type F. Product colour: Black, Surface finish: Matt, International Protection (IP) code: IP20. Rated voltage: 250 V, Rated current: 16 A, Rated frequency: 50 Hz. Width: 315 mm, Depth: 44 mm, Height: 52 mm. Quantity per pack: 1 pc(s), Package width: 350 mm, Package depth: 50 mm

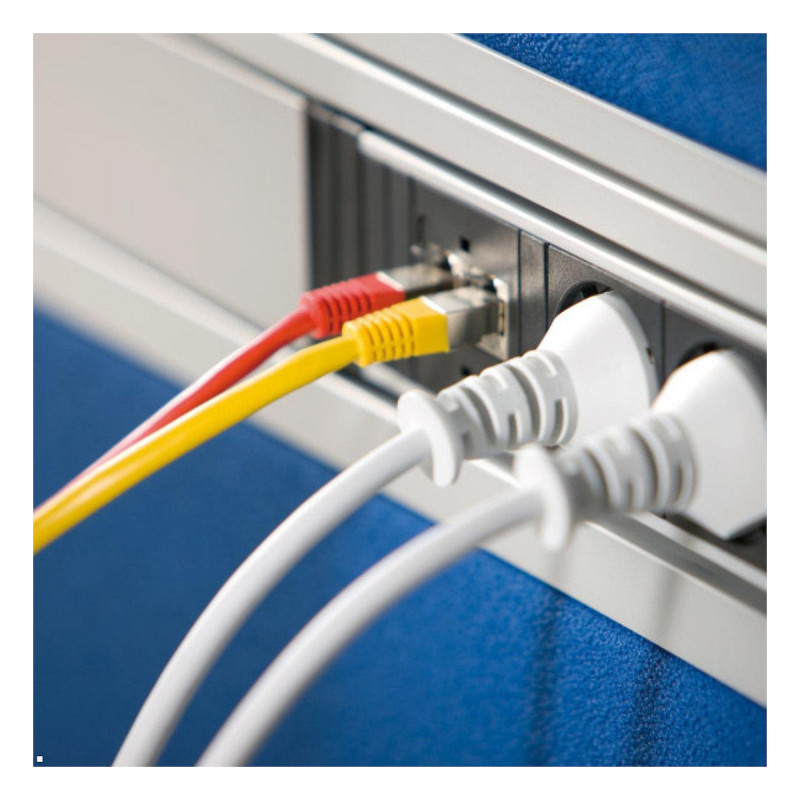

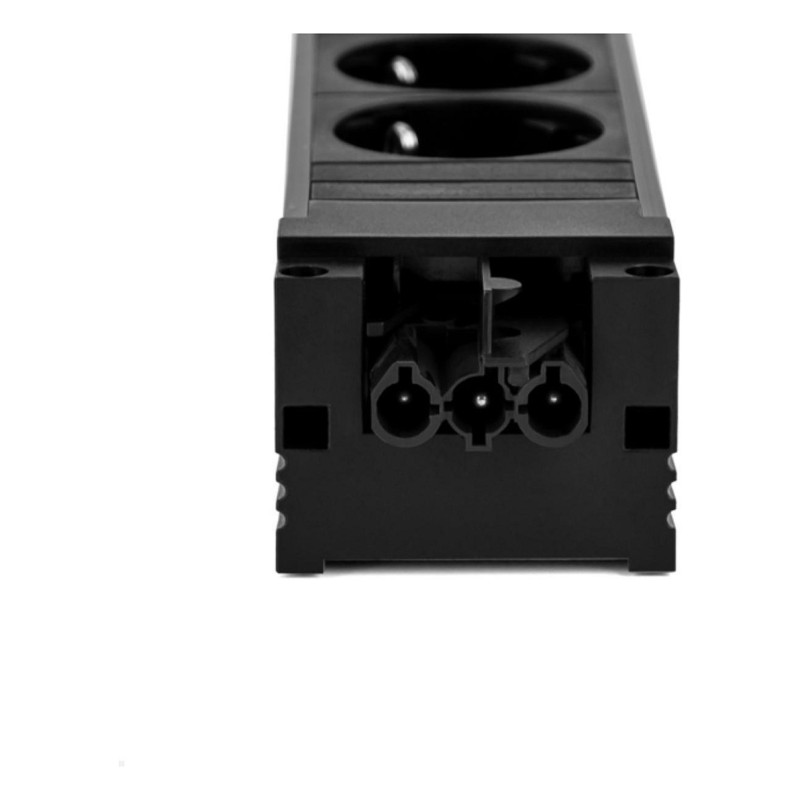

The modular multiple socket strip STEP BASE (906.18821) from the Bachmann STEP series implements the principle of adaptability with absolute consistency. The STEP system is ideal for flexible energy and data supply in partition wall systems, at workplaces, in double floors and other connection applications. Thanks to its modularity, the STEP socket strip offers almost limitless possibilities. It has a power input and a power output, which are each integrated into the end caps on the front. For the power supply, it is equipped with a Wieland GST18i3 plug and a GST18i3 coupling as standard. The device cable can be purchased separately to allow for different cable entries. The multiple sockethas 5 sockets with earthing contact and the central insert of the strip is rotated by 35 degrees to make it easier to insert wide plugs. Permanently installed devices such as a PC, monitor, printer, etc. can be connected to the socket bar.

Features

Socket type: Type F
Sockets quantity: 5

Design

Product colour: Black
Surface finish: Matt
Feature: Frame
International Protection (IP) code: IP20
Suitable location: Universal
Protection features: Dust resistant

Power

Rated voltage: 250 V
Rated current: 16 A
Rated frequency: 50 Hz

Technical details

Feature: Sustainability compliance
Compliance certificates: REACH, RoHS

Weight & dimensions

Width: 315 mm
Depth: 44 mm
Height: 52 mm

Packaging data

Quantity per pack: 1 pc(s)
Package width: 350 mm
Package depth: 50 mm
Package height: 40 mm
Package weight: 446 g
