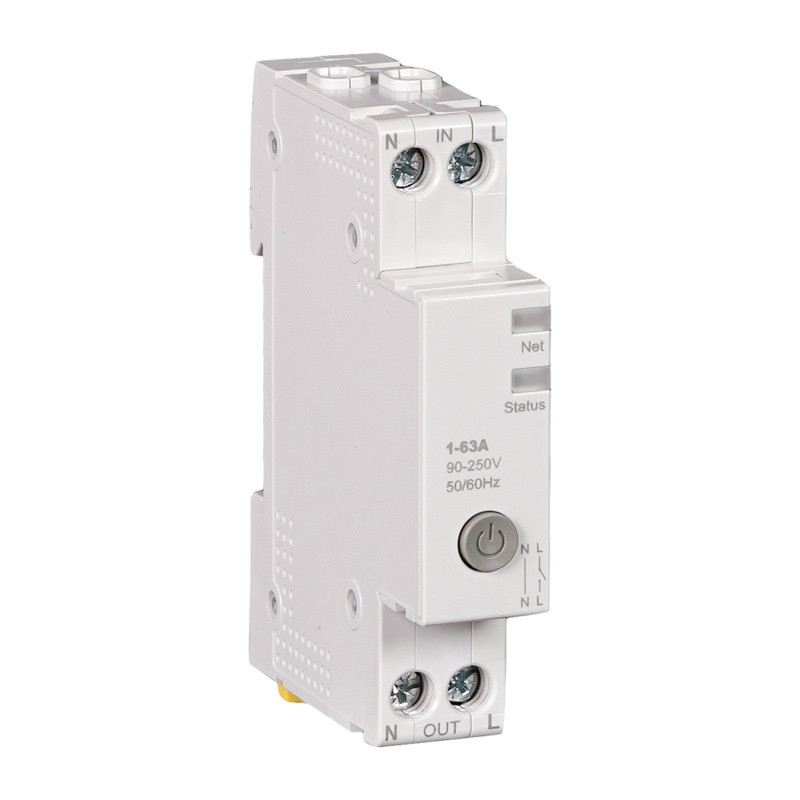

Smart Wi-Fi circuit breaker for DIN rail mounting allows you to remotely turn on and off an electrical circuit and monitor energy consumption. It operates at a voltage of 90-250 V, has adjustable current protection against overload, overvoltage and undervoltage, and also supports schedules and voice control.
Smart Wi-Fi circuit breaker for DIN rail mounting allows you to remotely turn on and off an electrical circuit and monitor energy consumption. It operates at a voltage of 90-250 V, has adjustable current protection against overload, overvoltage and undervoltage, and also supports schedules and voice control.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Smart Wi-Fi circuit breaker for DIN rail mounting. It can be used to remotely turn on and off the power supply and monitor energy consumption. It operates at a voltage of 90-250 V, has adjustable current protection, and also provides protection against overload, overvoltage and undervoltage. Supports schedule operation and voice control functions.
Product information | |
|---|---|
| Product type | Smart Wi-Fi automatic switch with energy monitoring |
| Brand | MOES |
| Model | WCB-A5-TW-E1 |
| Installation | Mounted on a DIN rail in an electrical panel |
Technical specifications | |
| Voltage | 90-250V |
| Rated operating voltage limit | 90% Un-110% Un |
| Extended operating voltage range | 80% Un-115% Un |
| Current range | 1-63 A |
| Frequency | 50Hz ±5% |
| Energy consumption | ≤1.5W |
| Operating temperature | −20-70 °C |
| Operating humidity | ≤95% |
| Protection class | IP20 |
| Enclosure flame resistance class | UL94 V-0 |
| 91.1 × 18 × 65.5mm | |
Management and monitoring | |
| Compatible apps | MOES, Tuya Smart and Smart Life |
| Voice control | Amazon Alexa and Google Assistant |
| Energy measurement | Real-time monitoring of energy consumption in kWh and daily, monthly and annual statistics |
| Automation modes | Schedules, sunrise and sunset automation, and cyclical on and off |
| Memory after power supply is restored | The device can be set to turn on, turn off, or restore to its previous state |
Security features | |
| Electrical protection | Overload, overvoltage and undervoltage protection |
| Adjustable settings | Protection thresholds and current settings can be configured in the app |
Safety warning | |
| Warning | Use only in compatible electrical installations and within the specified voltage and current limits. Installation, wiring and maintenance work must be carried out by a qualified electrician, with the power supply disconnected. The device has an IP20 protection class, so it must be installed in a dry, closed electrical panel. Do not use it instead of mandatory protective devices and not for its intended purpose - as a circuit breaker and power supply control device. |
| Height | 100mm |
| Length | 150mm |
| Weight | 300g |
| Width | 200mm |
