ALLNET ALL5000v2 gateway / controller

ALLNET ALL5000v2. Product colour: Black, Rack capacity: 1U, Mounting type: Rack mounting. Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Power consumption (typical): 3 W, Input voltage: 100 - 240 V, Input frequency: 50 - 60 Hz. Operating system installed: Linux. Width: 440 mm, Depth: 230 mm, Height: 44 mm

The ALLNET ALL5000v2 IP Facility Control Server is the new flagship of the ALLNET home automation series. It offers all the features of the other MSR control centers, which is the consistent further development of the popular ALLNET MSR Ethernet sensor meter. During the development of the control server, the wishes of existing MSR users were taken into account and a large number of new features and interfaces were added without sacrificing the familiar functions. Also new is the expandability of the devices.

The ALLNET ALL5000v2 IP Facility Control Server automates all tasks in building control, such as detection and signaling of environmental conditions such as temperature, humidity, pressure and much more, as well as triggering switching operations via contacts, relays and the like. This can be done manually, time-controlled or depending on recorded values.

A wide variety of scenarios such as lighting, blinds, ventilation and household appliances can be controlled with the ALLNET ALL5000v2 IP Facility Control Server. From temperature detection and demand-based heating of individual rooms, control of garden irrigation, alarming in case of gas smell and water intrusion to automatic opening and closing of blinds depending on daylight and much more, there are no limits to your ideas.


Accessible everywhere via network, internet and smartphone

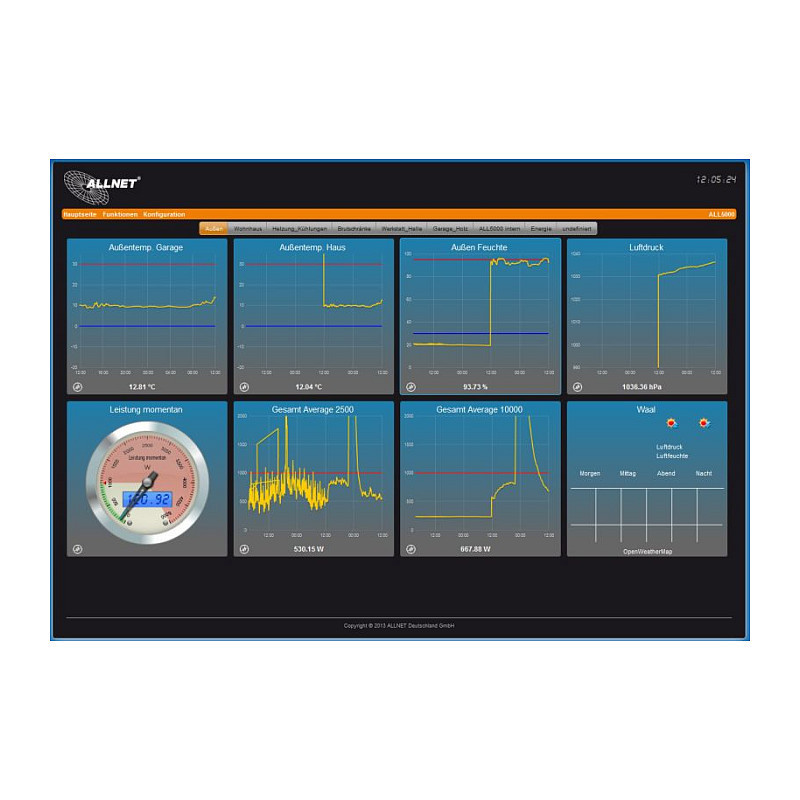

You control everything from a PC, notebook or other mobile device, such as smartphone or webpad. No matter if the devices you want to control, measure, regulate are located in the same building or on another continent. The ALLNET ALL5000v2 is accessible via an IP address. Your existing computer network and the Internet serve as the medium. The determined values can be retrieved directly from the device via the web browser or sent periodically via email or when a value exceeds or falls below certain preset limits. An integrated JSON interface is used to retrieve data externally via the Internet.


Individually adapted to every need
The ALLNET ALL5000v2 IP Facility Control Server has a Linux-based opensource operating system. Thus it offers enough freedom for own developments and adaptations of the software directly to the intended use of the user.


Would you like a little more? The new interface diversity

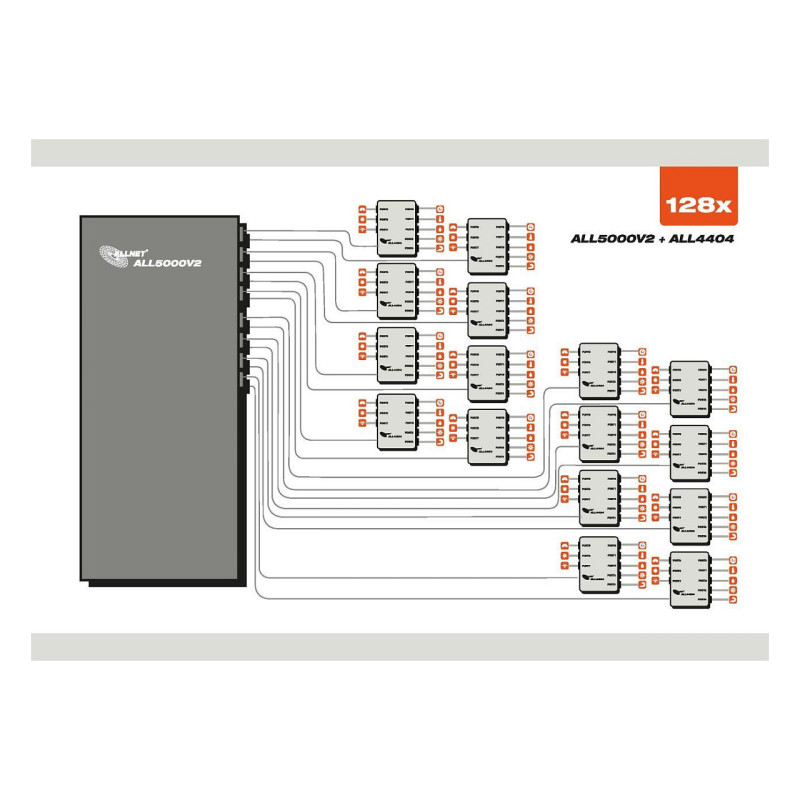

The ALLNET ALL5000v2 IP Facility Control Server leaves nothing to be desired and even tops the ALLNET ALL3505 Sensoric Appliance. There are 16 sensor ports (RJ45) for the connection of sensors, actuators, relays, etc. available. There is also 1x USB port available, which can be used to connect USB memory sticks or a Plugwise USB adapter to control and query Plugwise/Zigbee wireless sockets.

The two-line LCD display integrated into the housing shows you the status and the IP address.

Design

Product colour: Black
Rack capacity: 1U
Mounting type: Rack mounting

Performance

Feature: Control display unit

Network

Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)

Ports & interfaces

USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 16

Power

Power consumption (typical): 3 W
Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz

Software

Operating system installed: Linux

Weight & dimensions

Width: 440 mm
Depth: 230 mm
Height: 44 mm

Packaging content

Feature: Manual
Cables included: AC

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): 20 - 60 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 90%

Certificates

Certification: CE, RoHS
