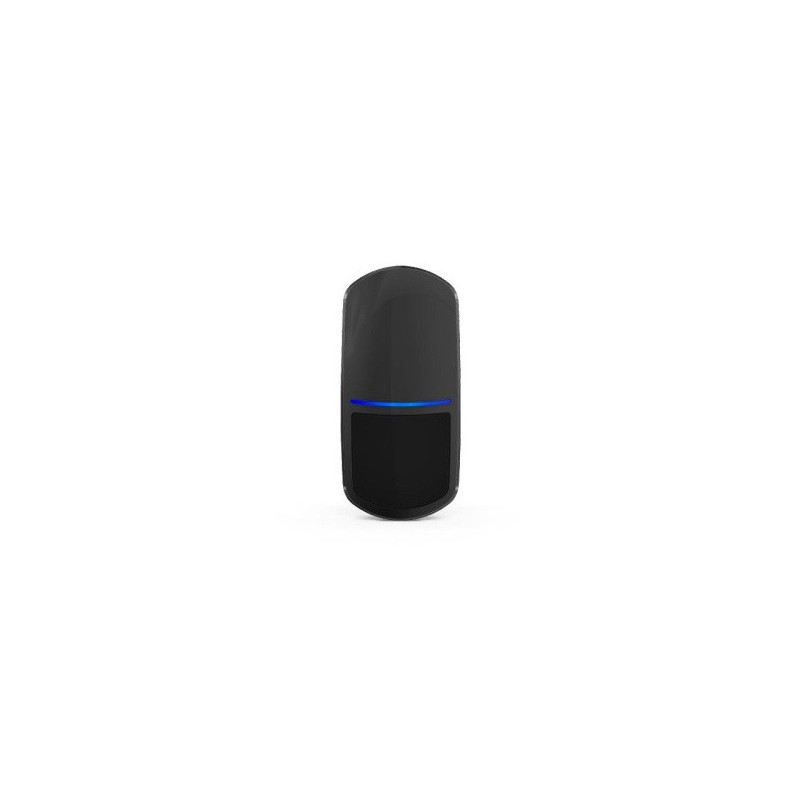

SLIM PIR DG Satel motion detector

SLIM LINE detectors are equipped with a special lens, developed and manufactured in Japan for SATEL. Thanks to these lenses, the detection zone can cover up to 20 mx 24 m with a 90° viewing angle. SLIM-PIR detects movement in the protected area. The device can be mounted on the BRACKET D adjustable wall and ceiling mount. certificate of compliance with EN 50131 requirements Grade 2 motion detection using passive infrared (PIR) sensor adjustable detection sensitivity digital motion detection algorithm digital temperature compensation wide-angle lens specially designed for SLIM LINE detectors possibility of replacing the wide-angle lens with a curtain (CT-CL2) or long-range (LR-CL2) built-in end-of-line resistors (2EOL: 2 x 1.1 kΩ) LED indicator LED indicator color selection (4 colors available) LED indicator remote enable/disable motion detection and power supply circuit monitoring tamper protection against opening the housing
